Rockwell Automation Publication KNX-RM009C-EN-P - May 2019 13
Kinetix 5500 Drive Systems
2090-Series Single Motor Cable Overview
These cables apply to Kinetix VP rotary motors and linear actuators. When using single cables, system performance of a
typical system with the motor at 40 °C (104 °F) and drive at 50 °C (122 °F) ambient applies. For maximum motor-cable
lengths with Kinetix 5500 drives, see the Kinetix 5500 Servo Drives User Manual, publication 2198-UM001
.
2090-CSxM1DF cable conductors have flying-leads and lead preparation that is designed specifically for Kinetix 5500
servo drives. No on-site lead preparation is required. 2090-CSxM1DG cable conductors have flying-leads and lead
preparation that is designed for either Kinetix 5500 or Kinetix 5700 servo drives. No on-site lead preparation is required;
however, 2090-CSxM1DG cable leads are longer than 2090-CSxM1DF cable leads to accommodate either drive family.
Single Motor Cable Descriptions
Single extension cables provide continuous-flex cable technology between your standard (non-flex) cable and the
continuous-flex application. The IP rating for continuous-flex extension cables is consistent with the motor/actuator and
cable combination they are extending. Extension cables are available in lengths up to 30 m (98.4 ft). Extension power
cables are available in 18, 14, and 10 AWG.
Single Extension Cable Descriptions
Refer to the Kinetix Motion Accessories Technical Data, publication KNX-TD004, for cable specifications.
IMPORTANT Because of the unique characteristics of single cable technology, building your own cables, using field modified Rockwell
Automation® factory-delivered cable, or using third-party cables with Kinetix VP (Bulletin VPL, VPF, VPH, and VPS) motors and
Bulletin VPAR electric cylinders is not an option.

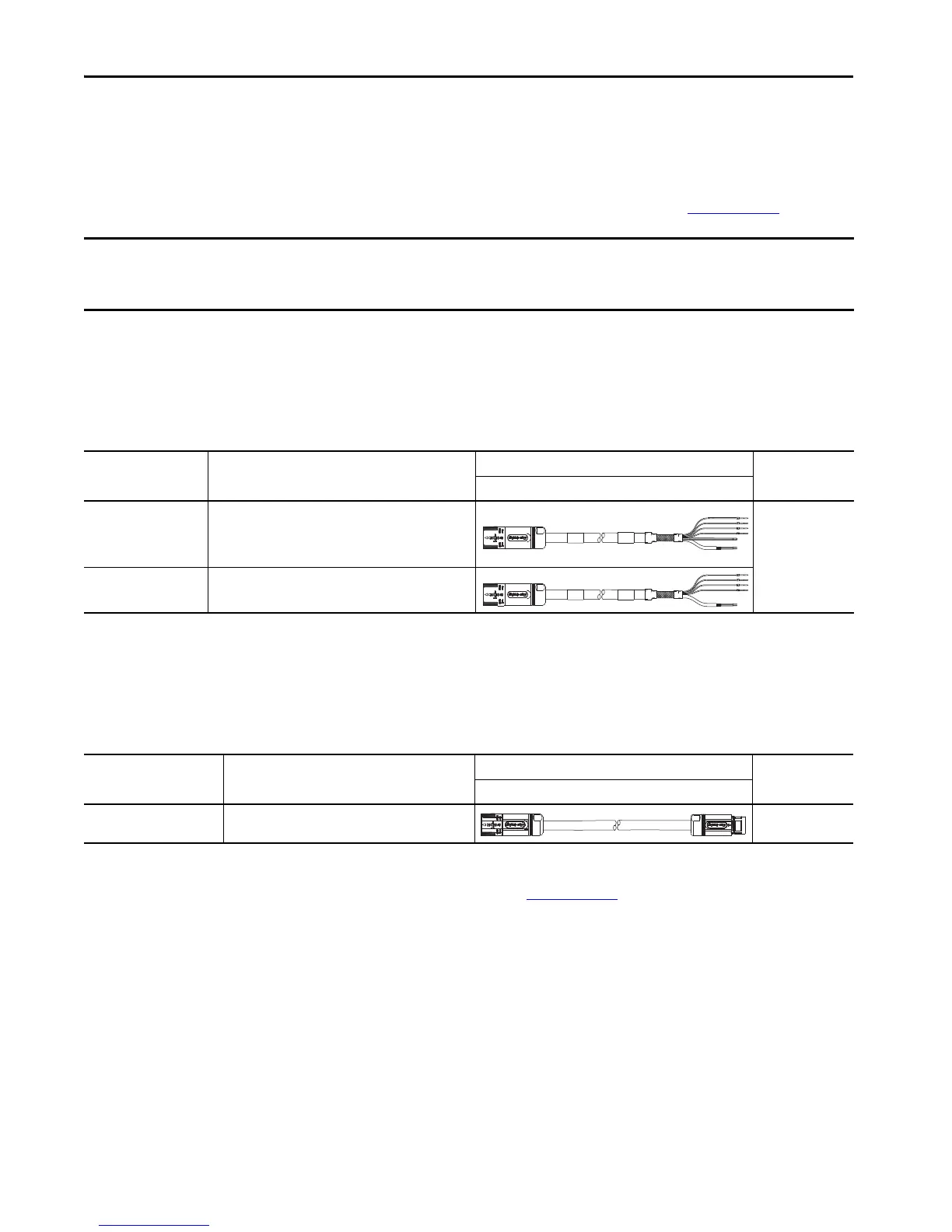

Single Cable Cat. No. Description
Cable Configuration
Motor Connector
Motor End Drive End
2090-CSBM1DF-xxAAxx
2090-CSBM1DF-xxAFxx
2090-CSBM1DG-xxAAxx
2090-CSBM1DG-xxAFxx
• Drive-end flying-leads (DF) (DG = longer lead lengths)
• Power/feedback/brake wires (SB)
• Standard, non-flex (AA)
• Continuous-flex (AF)
SpeedTec DIN
2090-CSWM1DF-xxAAxx
2090-CSWM1DG-xxAAxx
• Drive-end flying-leads (DF) (DG = longer lead lengths)
• Power/feedback wires only (SW)
Cable Cat. No. Description
Cable Configuration
Motor Connector
Motor End Drive End
2090-CSBM1E1-xxAFxx
• Drive-end (male) connector, extension (E1)
(1)
• Motor-end SpeedTec DIN cable plug (M1)
(1) SpeedTec DIN connector (motor end) and male connector for extending SpeedTec DIN cable.
SpeedTec DIN
