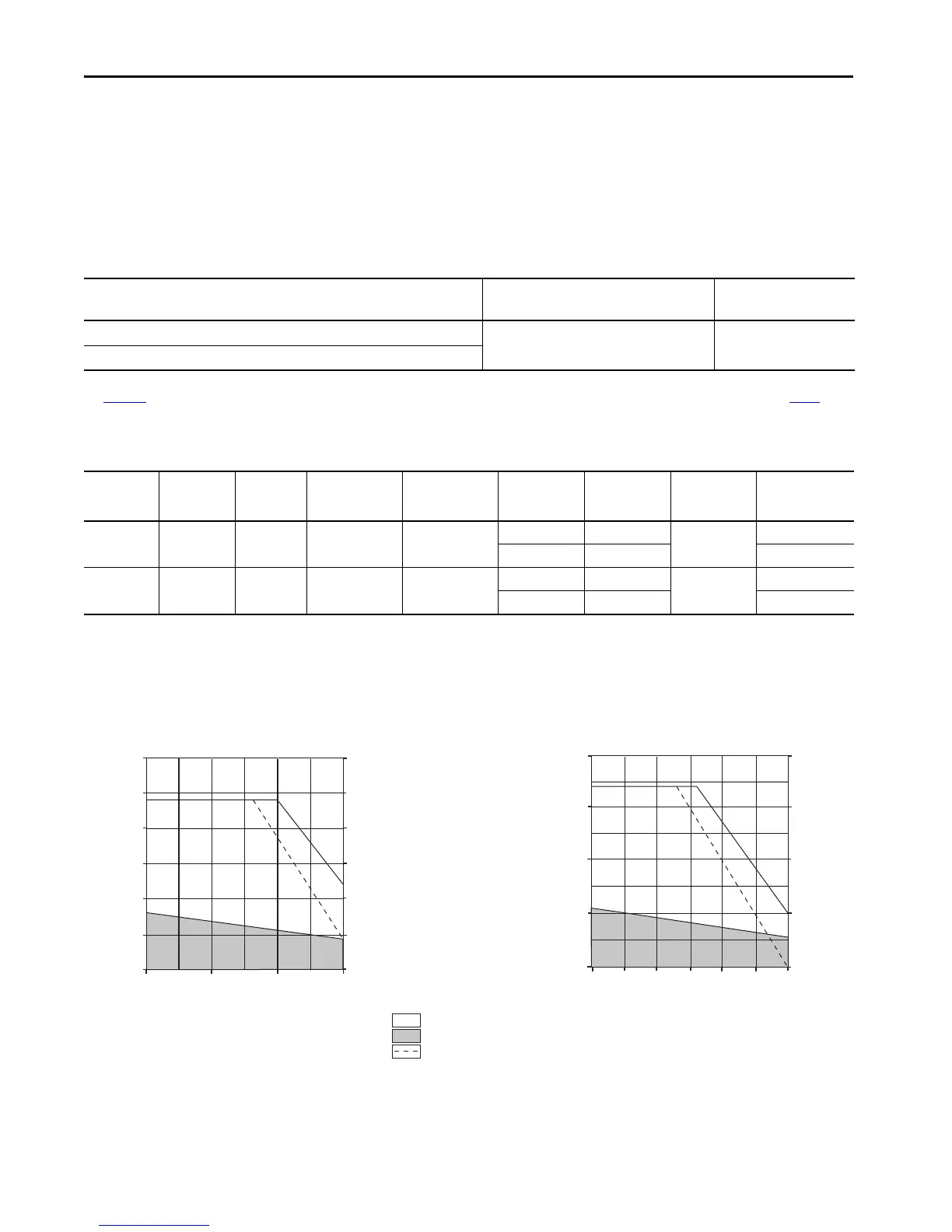

Kinetix 5500 Drive Systems
Kinetix 5500 (400V-class operation) Drives with Kinetix VP Stainless Steel Motors
This section provides system combination information for the Kinetix 5500 drives (with 400 and 480V, nominal input)
when matched with Kinetix VP (400V-class) stainless-steel motors. Single cable catalog numbers, system performance
specifications, and the optimum torque/speed curves are included.
Bulletin VPS Motor Cable Combinations
Bulletin VPS Motor Performance Specifications with Kinetix 5500 (400V-class operation) Drives
Performance specification data and curves reflect nominal system performance of a typical system with the motor at 40 °C (104 °F) and the drive at 50 °C (122 °F) ambient, and rated line voltage. For
additional information on ambient and line conditions, refer to Motion Analyzer software.
Kinetix 5500 (400V-class operation) Drives/Kinetix VP Stainless Steel Motor Curves
Rotary Motor (400V-class)
Cat. No.
Motor Feedback Cable
(1)
(1) Use 2090-CSxM1DF or 2090-CSxM1DG cables. Cable length xx is in meters, 01 (3.3)…50 (164) in 1.0 m (3.3 ft) increments. Refer to the Kinetix Motion Accessories Technical Data, publication
KNX-TD004
, for cable specifications. For cable configuration illustrations and feature descriptions, by catalog number, refer to 2090-Series Single Motor Cable Overview beginning on page 13.
Feedback Type
VPS-B1304D
2090-CSWM1Dx-14AAxx (standard, non-flex)
2090-CSBM1Dx-14AFxx (continuous-flex)
Multi-turn or Single-turn
Digital Encoder Feedback
VPS-B1653D
Rotary Motor
Cat. No.
Rated Speed
rpm
Speed, max
rpm
System Continuous
Stall Current
A (0-pk)
System Continuous
Stall Torque
N•m (lb•in)
System Peak
Stall Current
A 0-pk
System Peak
Stall Torque
N•m (lb•in)
Motor Rated
Output
kW (Hp)
Kinetix 5700 Drives
(480V AC input)
VPS-B1304D 3000 3000 7.1 8.1 (72.0)
17.7 17.9 (158)
1.40 (1.9)
2198-H015-ERSx
26.0 27.1 (240) 2198-H025-ERSx
VPS-B1653D 3000 3000 17.0 21.0 (186)
45.9 50.1 (443)
3.29 (4.4)
2198-H040-ERSx
68.0 67.8 (600) 2198-H070-ERSx
Torque
(N•m)
Torque
(lb•in)
2198-H025-ERSx and VPS-B1304D
30
25
20
15
10
5
0
265
221
177
133
88.5
44.2
0
Speed (rpm)
0 300020001000
Torque
(N•m)
Torque
(lb•in)
Speed (rpm)
2198-H070-ERSx and VPS-B1653D
708
531
354
177
0
0
1000
80.0
60.0
40.0
20.0
0
1500500 3000
2500
2000
= Intermittent operating region
= Continuous operating region
= Drive operation with 400V AC rms input voltage
