Allen-Bradley Kinetix 5500 Design Guide

14 Rockwell Automation Publication KNX-RM009C-EN-P - May 2019
Kinetix 5500 Drive Systems
2090-Series Motor Power/Brake and Feedback Cables Overview
These cables apply to LDAT-Series linear thrusters and MP-Series motors and actuators with high-resolution absolute
encoders. When using these cables, system performance of a typical system with the motor/actuator at 40 °C (104 °F)
and drive at 40 °C (104 °F) ambient applies. Maximum motor power cable length is 20 m (65.6 ft) for Kinetix 5500 drive
systems using these cables.
Feedback Cable Descriptions (standard, non-flex)
Feedback Cable Descriptions (continuous-flex)
Motor-end cable connector kits, for use when building your own cables are also available. Refer to the Kinetix Motion
Accessories Technical Data, publication KNX-TD004
, for more information.
IMPORTANT To increase the maximum motor power cable length to 50 m (164 ft) and the system ambient to motor at 40 °C (104 °F) and
drive at 50 °C (122 °F), use the 2090-CSBM1DF (single) cable for motor power/brake, and the 2090-CFBM7DF cable for motor
feedback.

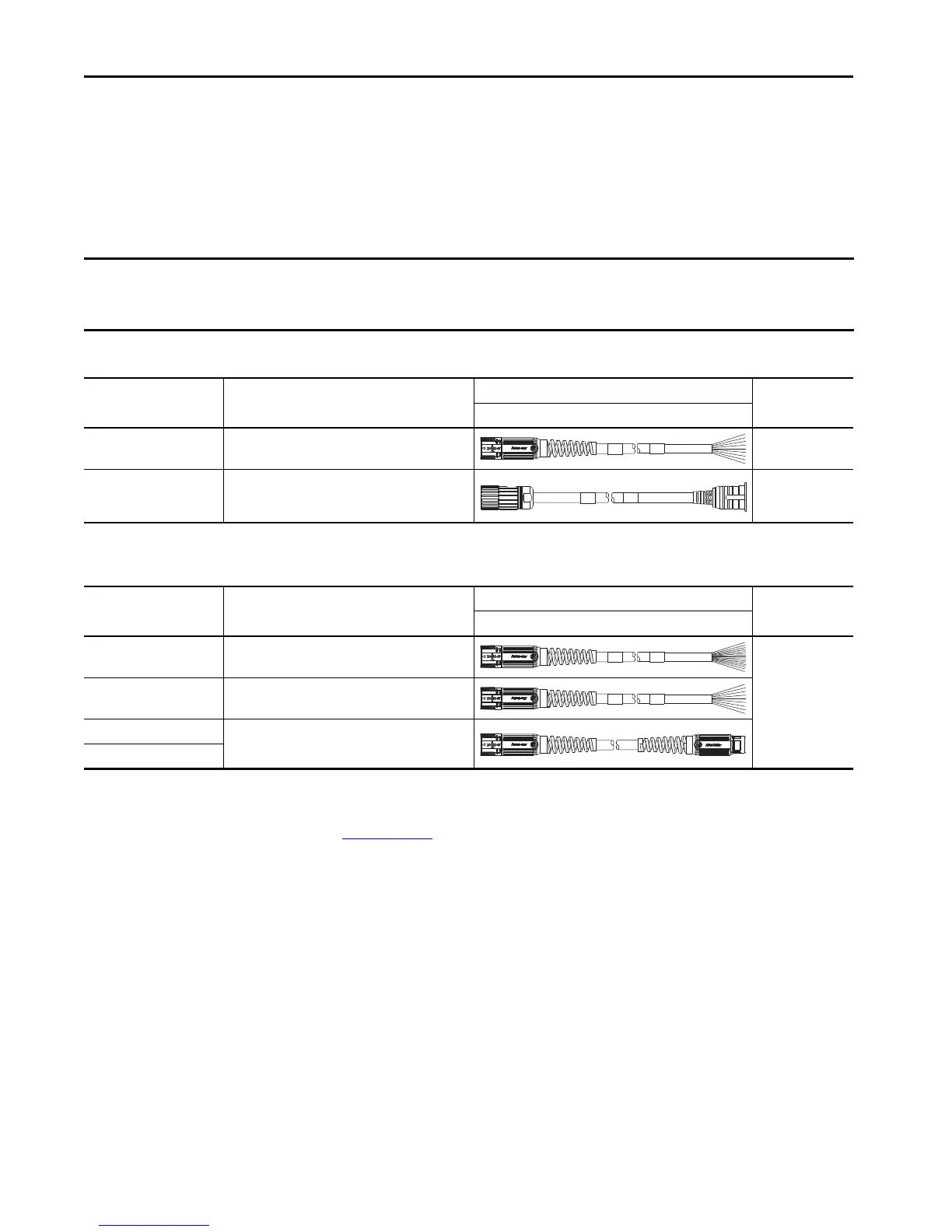

Standard Cable
Cat. No.
Description
Cable Configuration
Motor/Actuator
Connector
Motor/Actuator End Drive End
2090-CFBM7DF-CEAAxx
• Drive-end flying-leads (DF)
• High-resolution or resolver applications (CE)
SpeedTec DIN
(M7)
2090-CFBM4E2-CATR
• Drive-end bayonet (E2), transition (TR) cable
(1)
• Motor-end threaded DIN (M4)
• All feedback types (CA)
(1) Threaded DIN connector (motor end) and bayonet connector for 2090-XXNFMP-Sxx cable.
Threaded DIN
(M4)
Continuous-flex Cable
Cat. No.
Description
Cable Configuration
Motor/Actuator
Connector
Motor/Actuator End Drive End
2090-CFBM7DF-CDAFxx
• Drive-end flying-leads (DF)
• High-resolution or incremental applications (CD)
SpeedTec DIN
(M7)
2090-CFBM7DF-CEAFxx
• Drive-end flying-leads (DF)
• High-resolution or resolver applications (CE)
2090-CFBM7E7-CDAFxx
• Drive-end (male) connector, extension (E7)
(1)
• Motor-end SpeedTec DIN cable plug (M7)
(1) SpeedTec DIN connector (motor end) and male connector for extending SpeedTec or threaded DIN cable.
2090-CFBM7E7-CEAFxx
