Allen-Bradley Kinetix 5500 Design Guide

Rockwell Automation Publication KNX-RM009C-EN-P - May 2019 37
Kinetix 5500 Drive Systems
Kinetix 5500 (200V-class operation) Drives/Kinetix VP Food Grade Motor Curves (continued)
Kinetix 5500 (400V-class operation) Drives with Kinetix VP Food Grade Motors
This section provides system combination information for the Kinetix 5500 drives (with 400 and 480V, nominal input)
when matched with Kinetix VP (400V-class) food-grade motors. Single cable catalog numbers, system performance
specifications, and the optimum torque/speed curves are included.
Bulletin VPF Motor Cable Combinations
Rotary Motor (400V-class)
Cat. No.
Single Cable Cat. No.
(1)
(1) Use 2090-CSxM1DF or 2090-CSxM1DG cables. Cable length xx is in meters, 01 (3.3)…50 (164) in 1.0 m (3.3 ft) increments. Refer to the Kinetix Motion Accessories Technical Data, publication
KNX-TD004
, for cable specifications. For cable configuration illustrations and feature descriptions, by catalog number, refer to 2090-Series Single Motor Cable Overview beginning on page 13.
Feedback Type
VPF-B0632F, VPF-B0632T, VPF-B0633M, VPF-B0633T
2090-CSBM1Dx-18AAxx or
2090-CSWM1Dx-18AAxx (standard, non-flex)
2090-CSBM1Dx-18AFxx (continuous-flex)
Multi-turn or Single-turn
Digital Encoder Feedback
VPF-B0752E, VPF-B0752F, VPF-B0753E, VPF-B0753F
VPF-B1001M, VPF-B1002E, VPF-B1003C
VPF-B0752M, VPF-B0753M
2090-CSBM1Dx-14AAxx or
2090-CSWM1Dx-14AAxx (standard, non-flex)
2090-CSBM1Dx-14AFxx (continuous-flex)
VPF-B1002M, VPF-B1003F, VPF-B1003T
VPF-B1153E, VPF-B1153F
VPF-B1303C, VPF-B1303F, VPF-B1304C, VPF-B1304E
VPF-B1652C
Bulletin VPF Motor Performance Specifications with Kinetix 5500 (400V-class operation) Drives
Motor Cat. No.
Rated Speed
rpm
Speed, max
rpm
System Continuous
Stall Current
A (0-pk)
System Continuous
Stall Torque
N•m (lb•in)
System Peak
Stall Current
A 0-pk
System Peak
Stall Torque
N•m (lb•in)
Motor Rated
Output
kW (Hp)
Kinetix 5500 Drives
(480V AC input)
VPF-B0632F 4600 4600 1.20 0.93 (8.0)
3.50 2.26 (20.0)
0.34 (0.46)
2198-H003-ERSx
4.20 2.69 (24.0) 2198-H008-ERSx
VPF-B0632T 8000 8000 2.55 0.93 (8.0) 8.75 2.69 (24.0) 0.41 (0.55) 2198-H008-ERSx
VPF-B0633M 6700 6700 2.50 1.27 (11.0) 8.75 4.09 (36.0) 0.49 (0.66) 2198-H008-ERSx

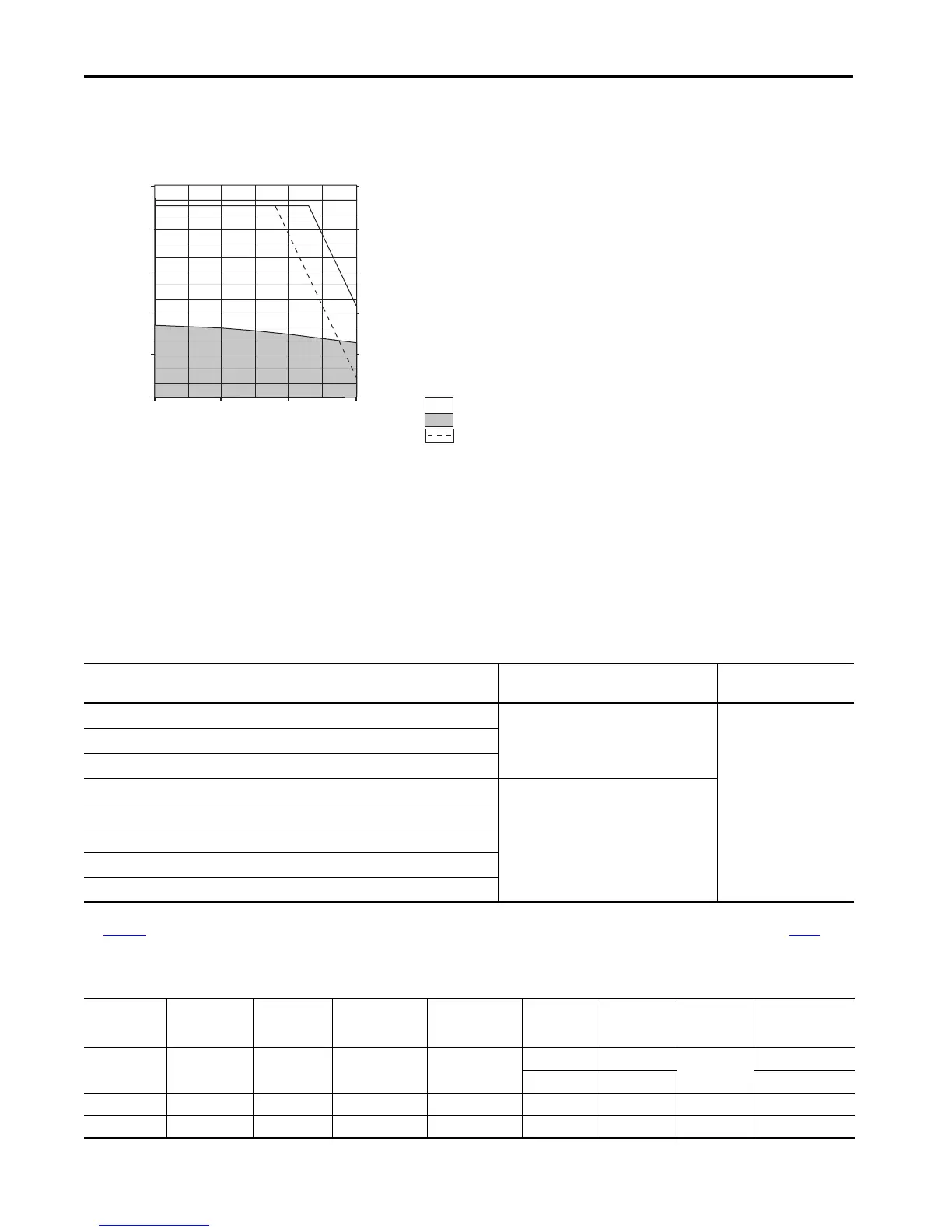

Torque
(N•m)
Torque
(lb•in)
0
0
6.0
12.0
18.0
30.0
24.0
53.1
106
159
212
265
2198-H070-ERSx and VPF-A1304D
Speed (rpm)
0
2000
30001000
= Intermittent operating region
= Continuous operating region
= Drive operation with 200V AC rms input voltage
