Rockwell Automation Publication KNX-RM009C-EN-P - May 2019 7
Kinetix 5500 Drive Systems
Feedback connections are made at the 2-pin motor feedback (MF) connector. These examples illustrate how you can use
the Bulletin 2198 connector kits for making these connections. These examples illustrate how you can use the Bulletin
2198 connector kits for making these connections.

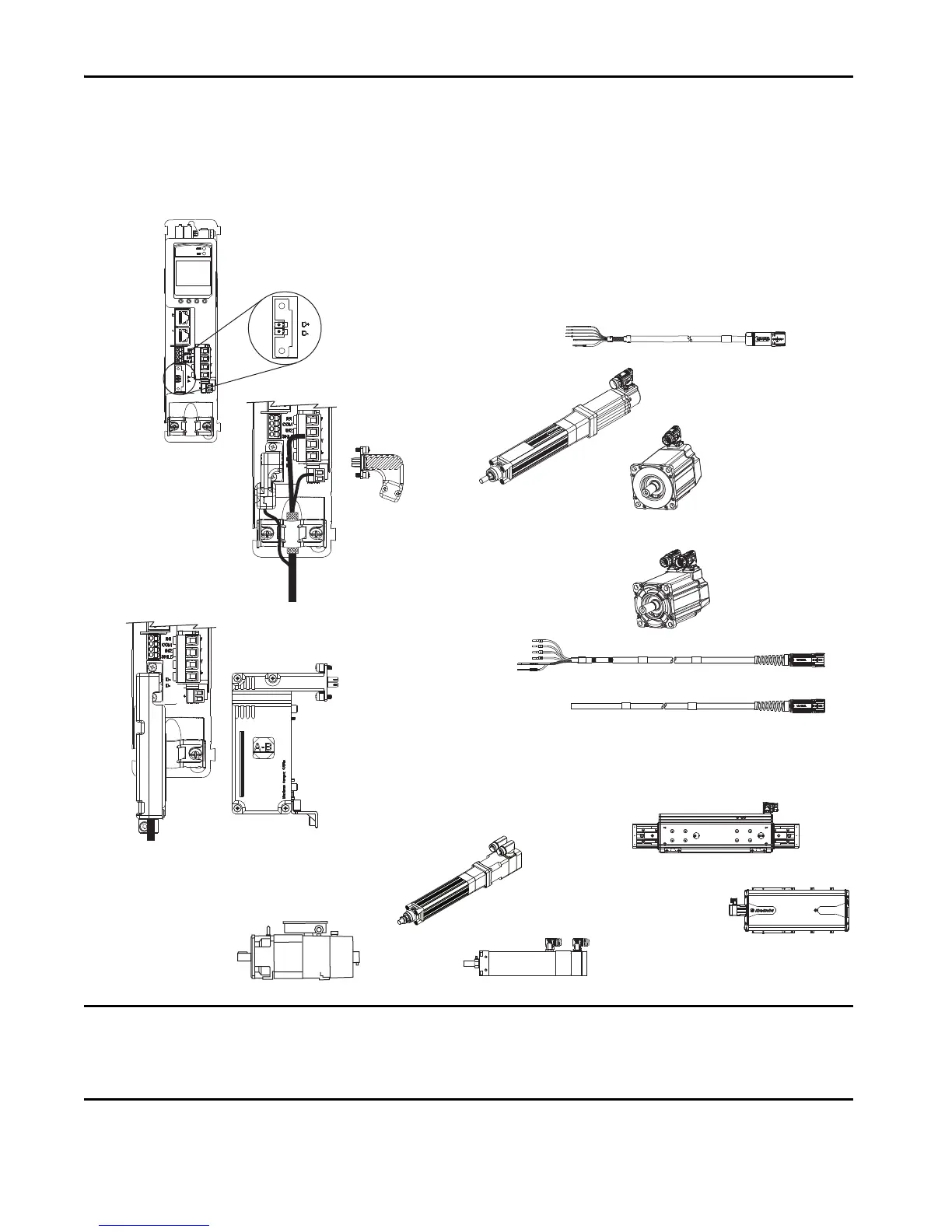

Feedback Configuration Examples
IMPORTANT In 2198-H2DCK converter kit applications, you can replace the 2090-CPxM7DF power/brake cable with a 2090-CSBM1DF single
motor cable (and reuse the 2090-CFBM7DF feedback cable) to increase the maximum cable length to 50 m (164 ft). However,
this applies to only 18 and 14 AWG single cables. 2090-CSxM1Dx-10Axxx (10 AWG/M40 connector) single cables are not
compatible with 2090-CPBM7DF-10Axxx (10 AWG/M40 connector) power/brake cables.
2198-KITCON-DSL Connector Kit
• Accepts DSL motor feedback from Kinetix VP
(Bulletin VPL, VPF, VPH, VPS) rotary motors
and Kinetix VP electric cylinders
• Feedback-only (DSL)
Bulletin 2090 Motor Power and Feedback Cables
MP-Series Linear Actuators
(MPAR-B3xxxx electric cylinder is shown)
MP-Series Rotary Motors
(MPL-Bxxxx motor is shown)
LDAT-Sxxxxxx-xDx
Linear Thrusters
2198-H2DCK Converter Kit
Converts 15-pin Hiperface feedback into 2-pin DSL feedback for:
• MP-Series rotary motors and linear actuators
• LDAT-Series linear thrusters
• Feedback-only (absolute single-turn/multi-turn Hiperface)
2-pin Motor Feedback
(MF) Connector
2198-Hxxx-ERSx Drive
(front view)
MP-Series Linear Actuators
(MPAS-B9xxx ballscrew linear stage is shown)
Kinetix VP Rotary Motors
(VPL-Bxxxx motor is shown)
MP-Series Linear Actuators
(MPAI-B3xxxx heavy-duty electric cylinder is shown)
Induction Rotary Motors
(no feedback, V/Hz)
2090-CSBM1DF or 2090-CSBM1DG
Single Motor Cables
Kinetix VP Electric Cylinders
(Bulletin VPAR)
To Next Page
