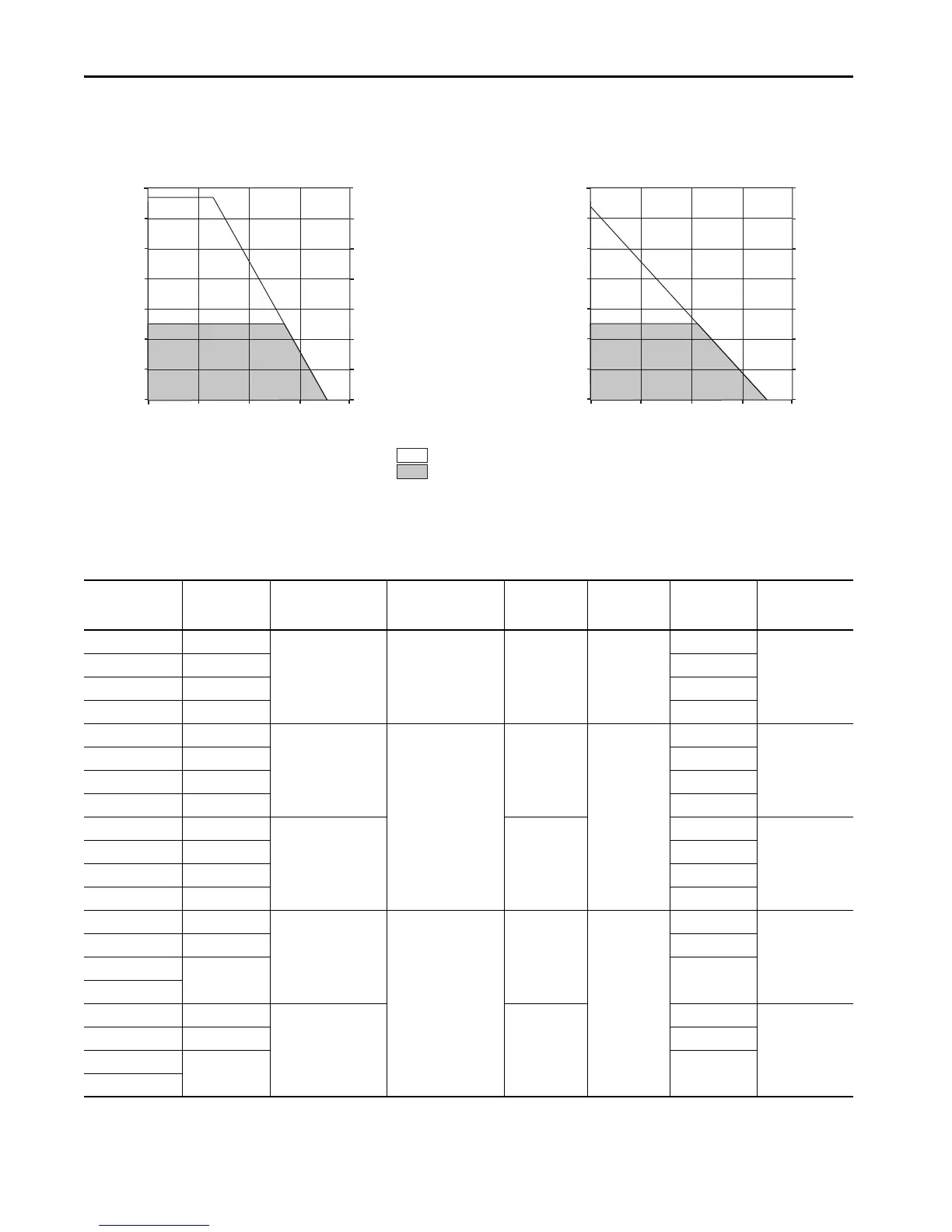

Kinetix 5500 Drive Systems
Kinetix 5500 (200V-class operation) Drives/LDAT-Series Integrated Linear Thruster Curves (continued)
LDAT-Series Performance Specifications with Kinetix 5500 (400V-class operation) Drives
Performance Specifications with Frame 30 Linear Thrusters
Performance specification data and curves reflect nominal system performance of a typical system with motor at 40 °C (104 °F) and drive at 40 °C (104 °F) ambient and rated line voltage. For additional
information on ambient and line conditions, refer to Motion Analyzer software.
Linear Thruster
Cat. No.
Velocity, max
460V AC
m/s
System Continuous
Stall Current
Amps 0-pk
System Continuous
Stall Force
N (lb)
System Peak
Stall Current
Amps 0-pk
System Peak
Stall Force
N (lb)
Rated Output
460V AC
kW
Kinetix 5500 Drives
(480V AC input)
LDAT-S031010-DDx 2.4
4.8 81 (18) 12.2 168 (38)
0.20
2198-H015-ERSx
LDAT-S031020-DDx 3.1 0.25
LDAT-S031030-DDx 3.5 0.29
LDAT-S031040-DDx 3.8 0.31
LDAT-S032010-DDx 3.1
7.4
126 (28)
24.3
336 (76)
0.40
2198-H025-ERSx
LDAT-S032020-DDx 4.1 0.52
LDAT-S032030-DDx 4.7 0.59
LDAT-S032040-DDx 5.0 0.63
LDAT-S032010-EDx 3.1
3.7 12.2
0.40
2198-H015-ERSx
LDAT-S032020-EDx 4.1 0.52
LDAT-S032030-EDx 4.7 0.59
LDAT-S032040-EDx 5.0 0.63
LDAT-S033010-DDx 3.5
11.1
190 (43)
36.5
504 (113)
0.67
2198-H040-ERSx
LDAT-S033020-DDx 4.7 0.88
LDAT-S033030-DD
x
5.0 0.95
LDAT-S033040-DDx
LDAT-S033010-EDx 3.5
3.7 12.2
0.67
2198-H015-ERSx
LDAT-S033020-EDx 4.7 0.87
LDAT-S033030-EDx
5.0 0.91
LDAT-S033040-EDx
180
360
540
719
899
1079
0
800
1600
2400
3200
4000
4800
5600
1259
0
Force
(N)
Force
(lb)
2198-H070-ERSx and LDAT-S156090-DDx
Velocity (m/s)
0
1.0
2.0
1.50.5
180
360
540
719
899
1079
0
800
1600
2400
3200
4000
4800
5600
1259
0
Force
(N)
Force
(lb)
2198-H025-ERSx and LDAT-S156090-EDx
Velocity (m/s)
0
1.50
1.0
1.750.25
= Intermittent operating region
= Continuous operating region
