Rockwell Automation Publication 2198-UM002G-EN-P - February 2019 217
Configure and Start the Kinetix 5700 Drive System Chapter 6

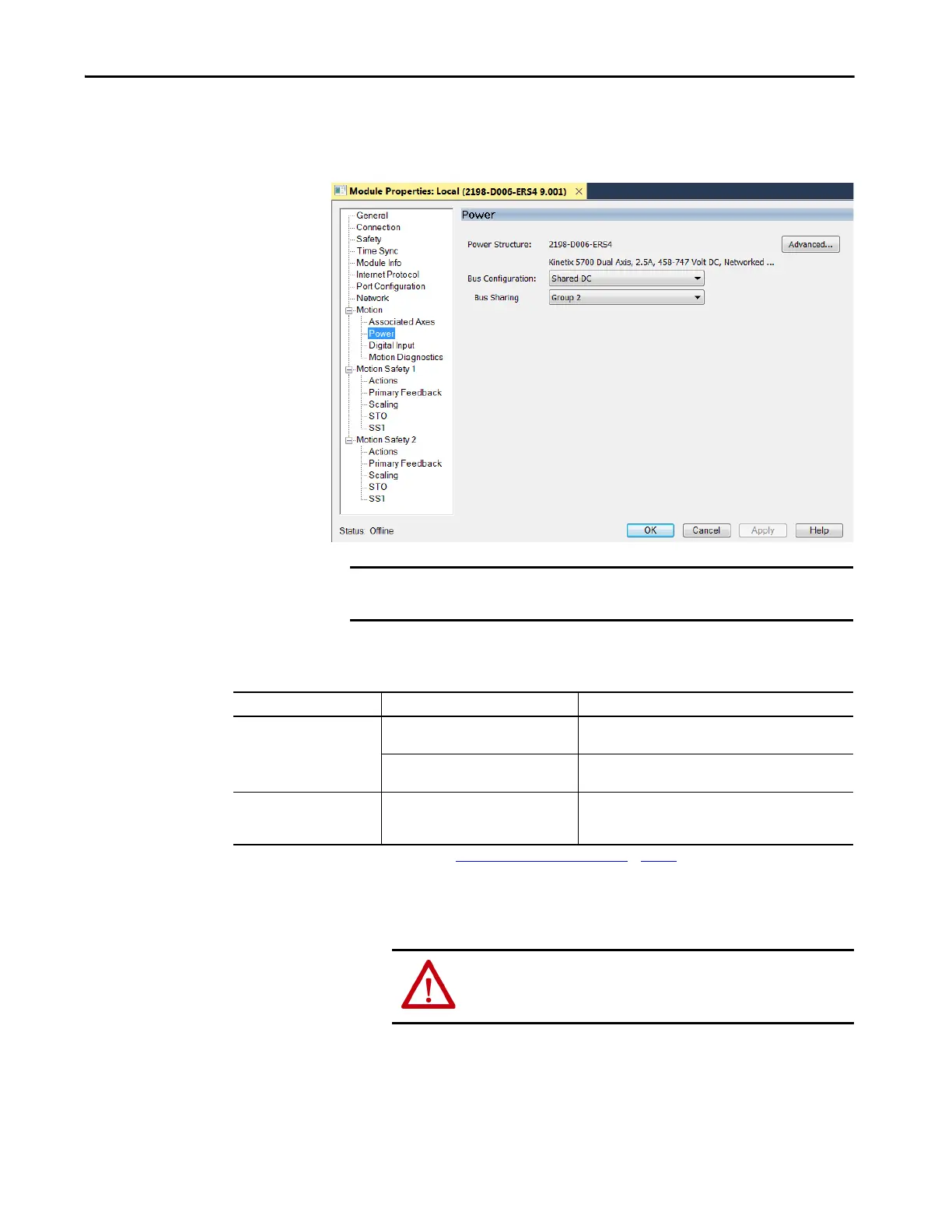

Configure the Power and Safety Categories
1. Click the Power category.
2. From the pull-down menus, choose the power options appropriate for
your hardware configuration.
3. Click OK to close the Module Properties dialog box.
4. Click Close to close the Select Module Type dialog box.
IMPORTANT The Logix Designer application enforces shared-bus configuration rules
for Kinetix 5700 drives.
Attribute Menu Description
Bus Configuration
Shared DC
(2)
Applies to 2198-Sxxx-ERSx and 2198-Dxxx-ERSx inverter
drives.
Shared DC - Non-CIP Motionâ„¢ Converter
(3)
Applies to the designated inverter in drive systems powered
by the 8720MC-RPS regenerative power supply.
Bus Sharing Group
(1)
(3)
•Group1
•Group2
•Group3…
Applies to any bus-sharing configuration.
(1) For more information on bus-sharing groups, refer to Understand Bus-sharing Group Configuration on page 263.
(2) Shared DC bus configuration is the default selection for single-axis and dual-axis inverters.
(3) Because the 8720MC-RPS unit is not an EtherNet/IP network device the Logix 5000 controller does not communicate with it. The designated inverter,
configured as the Shared DC - Non-CIP Motion Converter, monitors the 8720MC-RPS unit status through a digital input (Regen OK) and communicates with the
other inverters to signal when the DC-bus voltage is present.
ATTENTION: To avoid damage to equipment all modules physically
connected to the same shared-bus connection system must be part
of the same Bus Sharing Group in the Logix Designer application.
To Next Page
