Structured Text
SyrupController.ProgCommand := AddSyrup;
SyrupController.FB0 := SyrupValveClosedLimitSwitch;
SyrupController.FB1 := SyrupValveOpenedLimitSwitch;
D2SD(SyrupController);
SyrupValve := SyrupController.Out;
Switch Between Program Control and Operator Control

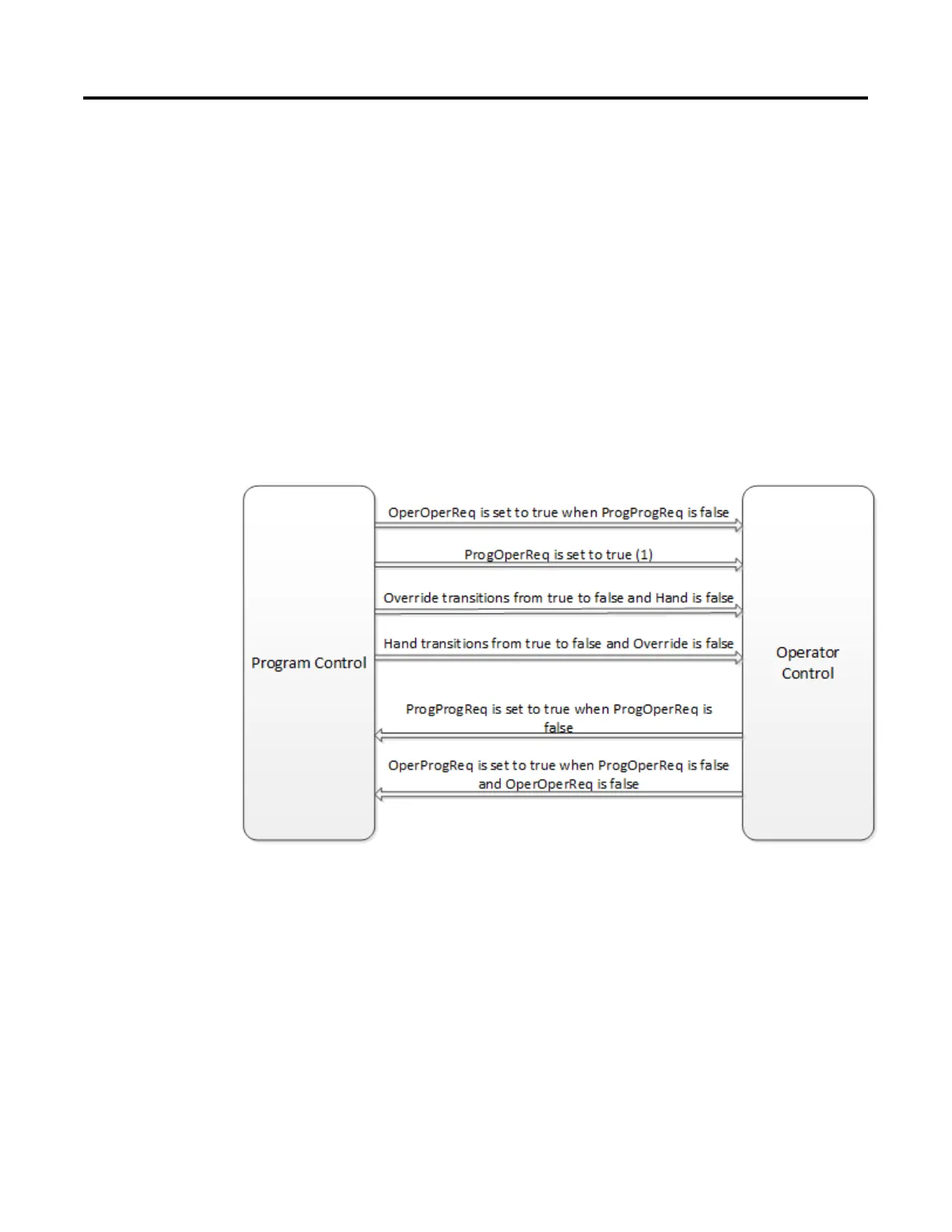

The following diagram shows how the D2SD instruction changes between
Program control and Operator control.
(1) The instruction remains in Operator control mode when ProgOperReq is
true.
