Select_Limit Instructions
Rockwell Automation Publication 1756-RM006K-EN-P - November 2018 365
Example
Function Block

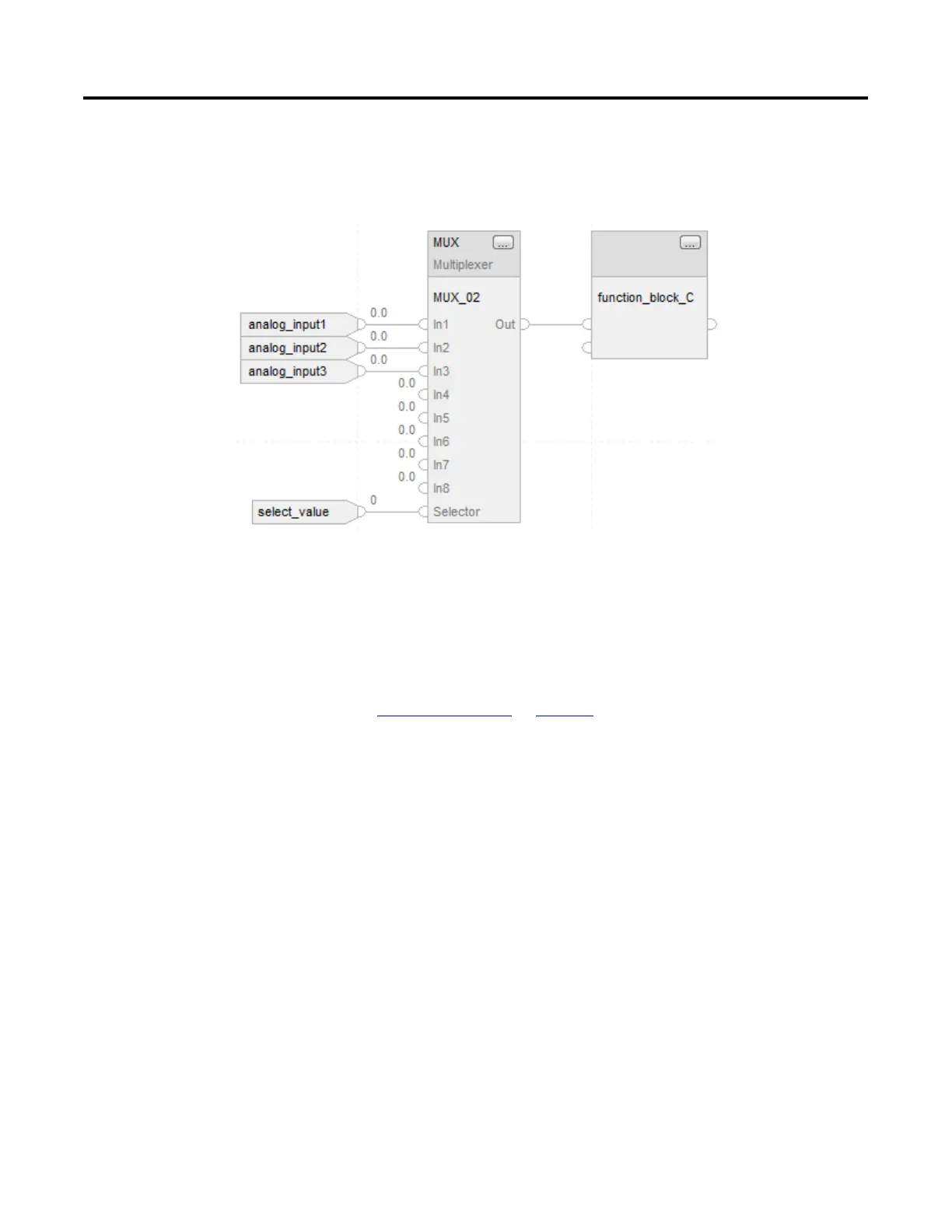

This MUX
instruction selects In1, In2, or In3, In4, In5, In6, In7, or In8 based on
the Selector. The instruction sets Out = In
n
, which becomes an input parameter
for function_block_C. For example, if select_value = 2, the instruction sets Out =
analog_input2.
See also
Common Attributes on page 537
This information applies to the CompactLogix 5370, ControlLogix 5570,
Compact GuardLogix 5370, GuardLogix 5570, Compact GuardLogix 5380,
CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, and GuardLogix
5580 controllers.
The RLIM instruction limits the amount of change of a signal over time.
Available Languages
Ladder Diagram
This instruction is not available in ladder diagram logic.
