Allen-Bradley LOGIX 5000 User Manual

Chapter 4
Select_Limit Instructions
362 Rockwell Automation Publication 1756-RM006K-EN-P - November 2018
This information applies to the CompactLogix 5370, ControlLogix 5570,
Compact GuardLogix 5370, GuardLogix 5570, Compact GuardLogix 5380,
CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, and GuardLogix
5580 controllers.
The MUX instruction selects one of eight inputs based on the selector input.
Available Languages
Ladder Diagram
This instruction is not available in ladder diagram.
Function Block
Structured Text
This instruction is not available in ladder diagram.
Operands
Function Block
Operand Type Format Description

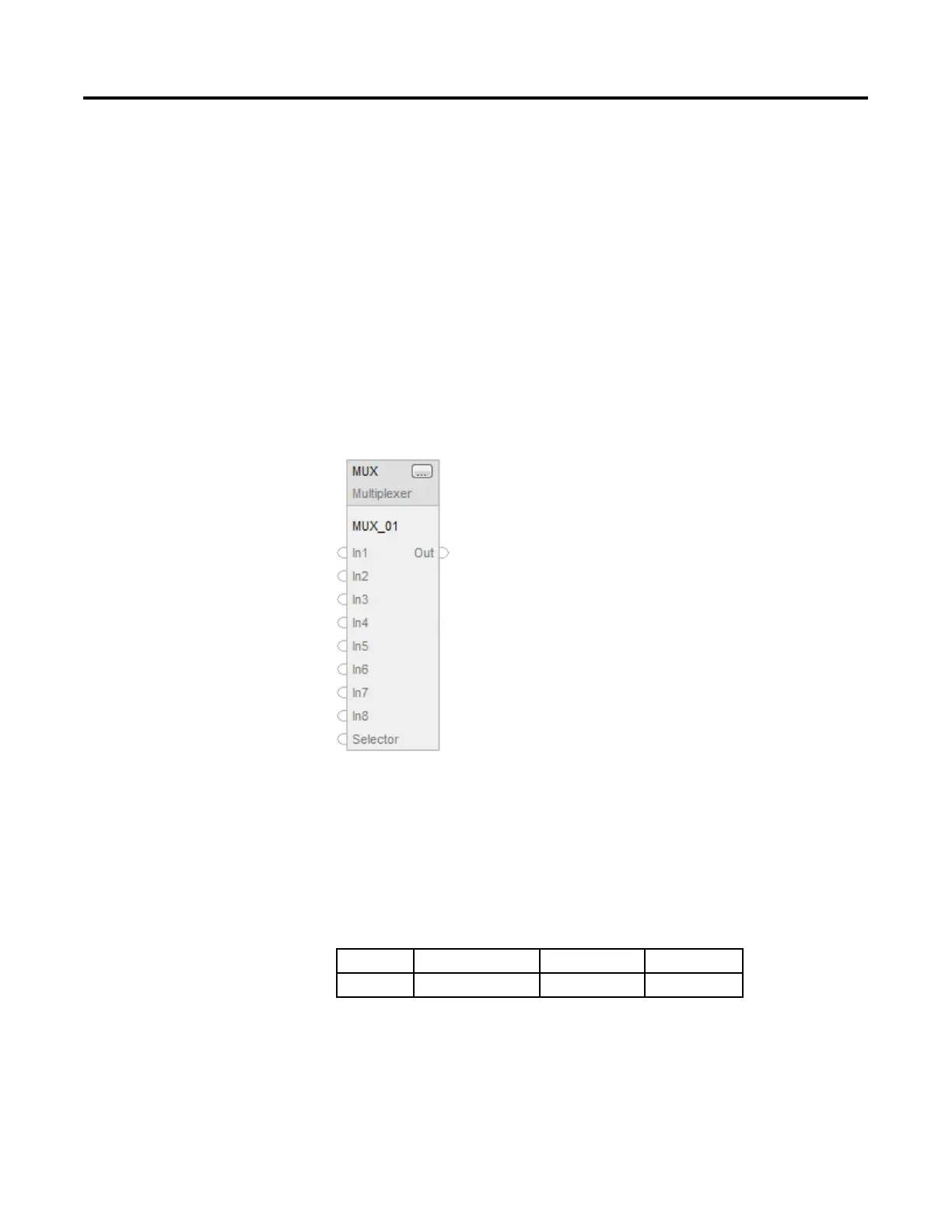

Block tag MULTIPLEXER Structure MUX structure
Multiplexer (MUX)
