Structured Text
Number Description

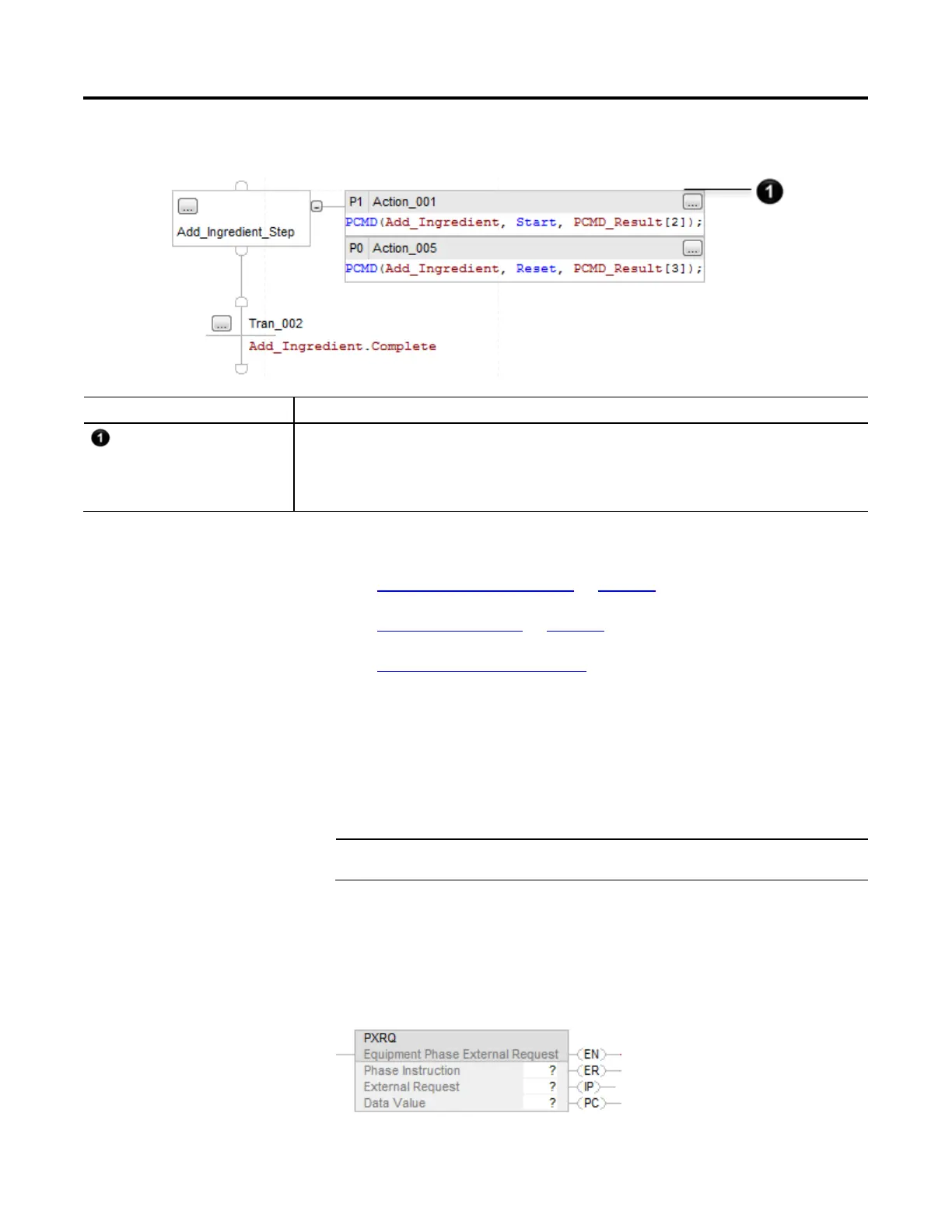

When the SFC enters Add_Ingredient_Step
• Change Add_Ingredient equipment phase to running via the start commend.
• Verify that the command was successful and store the result code in PCDM_Result[2] (DINT tag).
The P1 qualifier limits this to the first scan of the step.
See also
Equipment Phase Instructions on page 415
Index Through Arrays on page 551
Equipment Phase Paused (PPD)
This instruction applies to the CompactLogix 5370 and CompactLogix 5380,
ControlLogix 5570 and ControlLogix 5580, and Compact GuardLogix 5370 and
Compact GuardLogix 5380 controllers.
Use the PXRQ instruction to initiate communication with FactoryTalk® Batch
software.
Important:
When the PXRQ instruction is used in an Equipment Sequence, only the Download All (1000) request
and the Upload All (2000) request are supported. All other PXRQ instruction requests are ignored.
The PXRQ instruction sends a request to FactoryTalk Batch software.
Available Languages
Ladder Diagram
Equipment Phase External
Request (PXRQ)
