Structured Text Programming
518 Rockwell Automation Publication 1756-RM006K-EN-P - November 2018
The table provides examples of using relational operators
Use this format Example
For this situation Write
value1 operator value2 If temp is a DINT tag and your specification says: ‘If temp is
less than 100
then…’
IF temp<100 THEN...
stringtag1 operator stringtag2 If bar_code and dest are string tags and your specification
says: ‘If bar_code equals dest then…’
IF bar_code=dest THEN...
stringtag1 operator 'character string literal' If bar_code is a string tag and your specification says: ‘If
bar_code equals ’Test PASSED’ then...’
IF bar_code=’Test PASSED’ THEN...
char1 operator char2
To enter an ASCII character directly into the
expression, enter the decimal value of the
character.
If bar_code is a string tag and your specification says: ‘If
bar_code.DATA[0] equals ’A’ then…’
IF bar_code.DATA[0]=65 THEN...
bool_tag := bool_expressions If count and length are DINT tags, done is a BOOL tag, and
your specification says: ‘If count is greater than or equal to
length, you are done counting.’
Done := (count >= length);

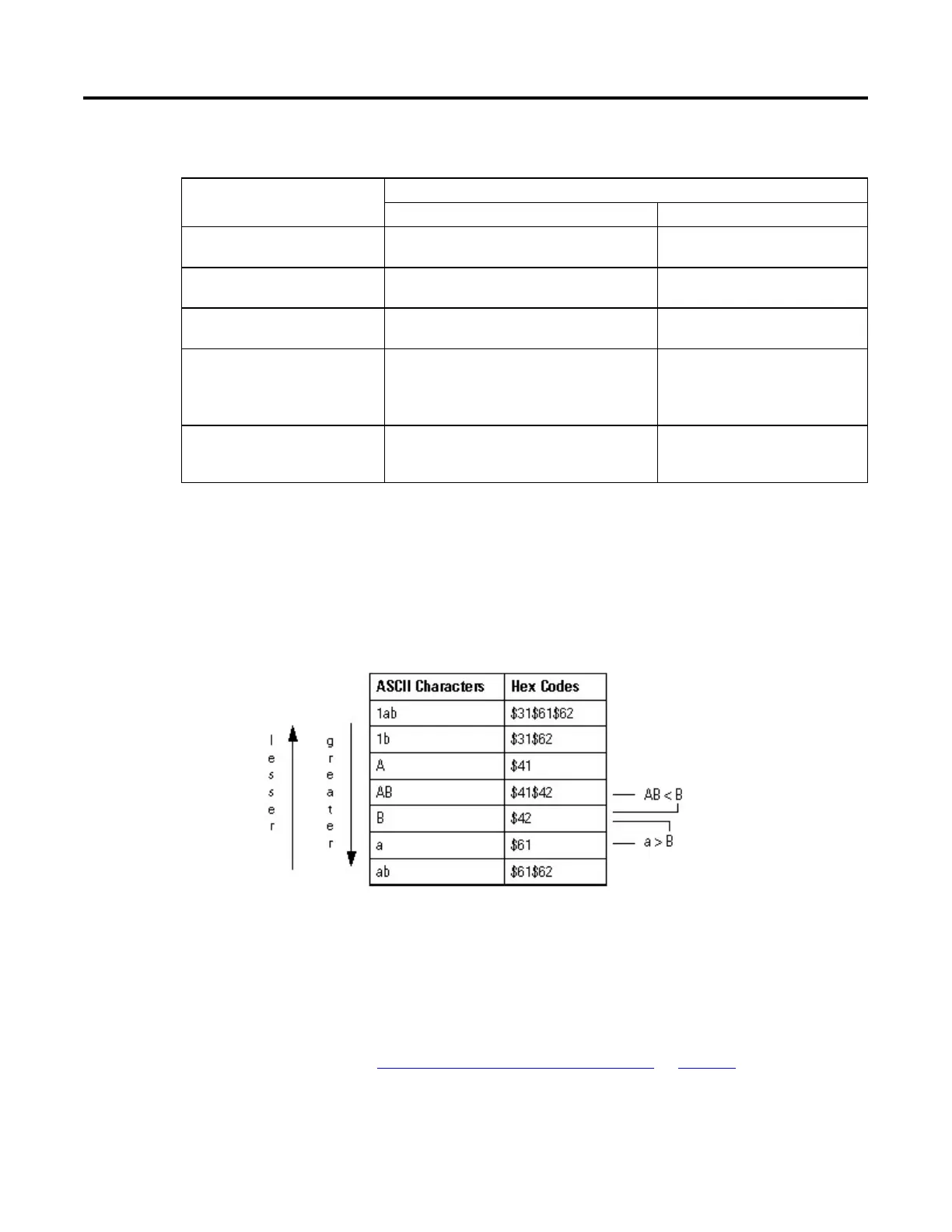

How strings are evaluated
The hexadecimal values of the ASCII characters determine if one string is less than
or greater than another string.
• When the two strings are sorted as in a telephone directory, the order of the
strings determines which one is greater.
• Strings are equal if their characters match.
• Characters are case sensitive. Upper case "A" ($41) is not equal to lower case
"a" ($61).
See also
Structured Text Components: Expressions on page 513
