Allen-Bradley PanelView Plus 2711P User Manual

Publication 2711P-UM001B-EN-P
Installation 2-7

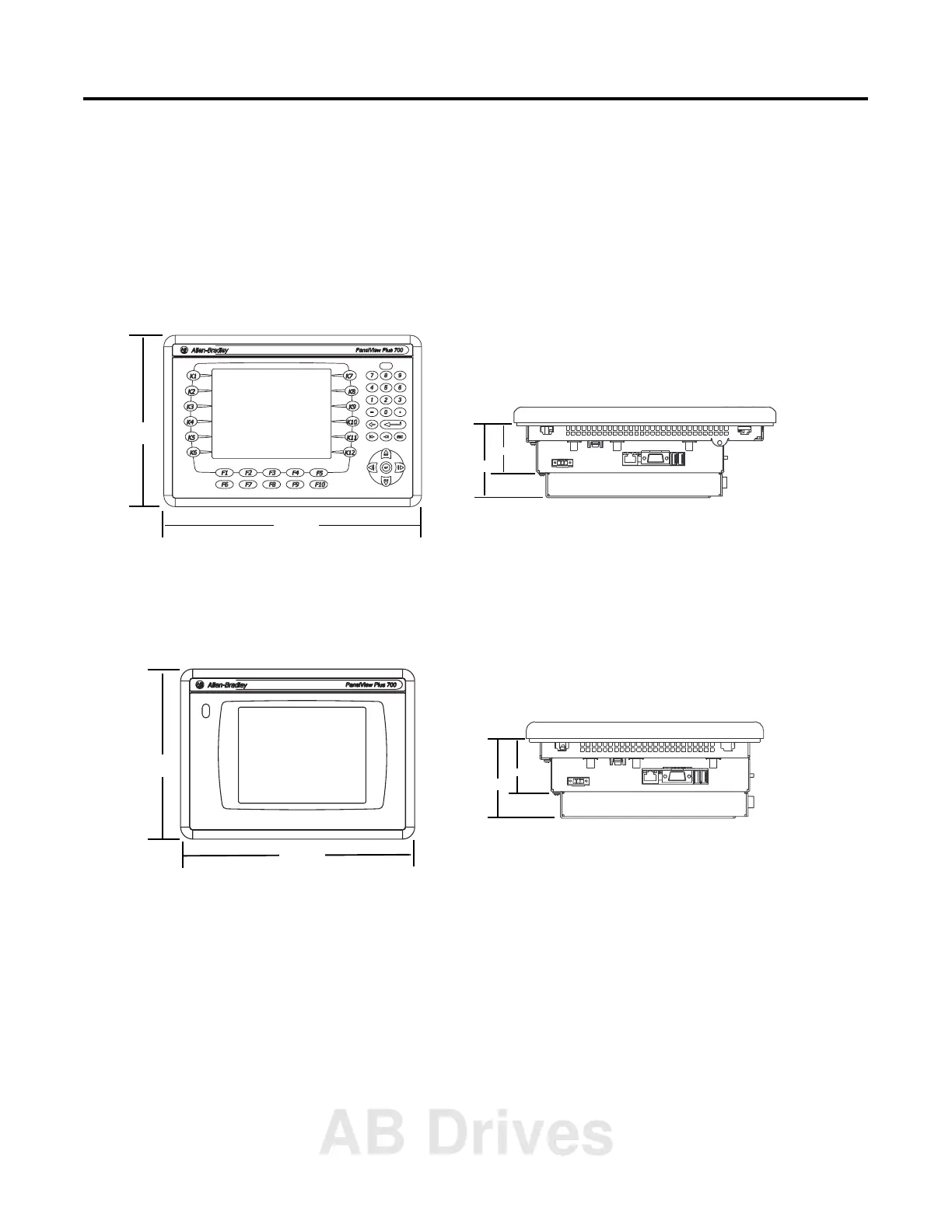

PanelView Plus 700
The depth dimensions are shown for:
• base configured unit (Display Module and Logic Module)
• base configured unit with Communication Module
700 Touch Screen Terminal
179
(7.04)
246
(9.68)
290
(11.40)
193
(7.58)
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
b
a
a
b
700 Keypad or Keypad & Terminal
