Allen-Bradley PanelView Plus 2711P User Manual

Publication 2711P-UM001B-EN-P
2-8 Installation

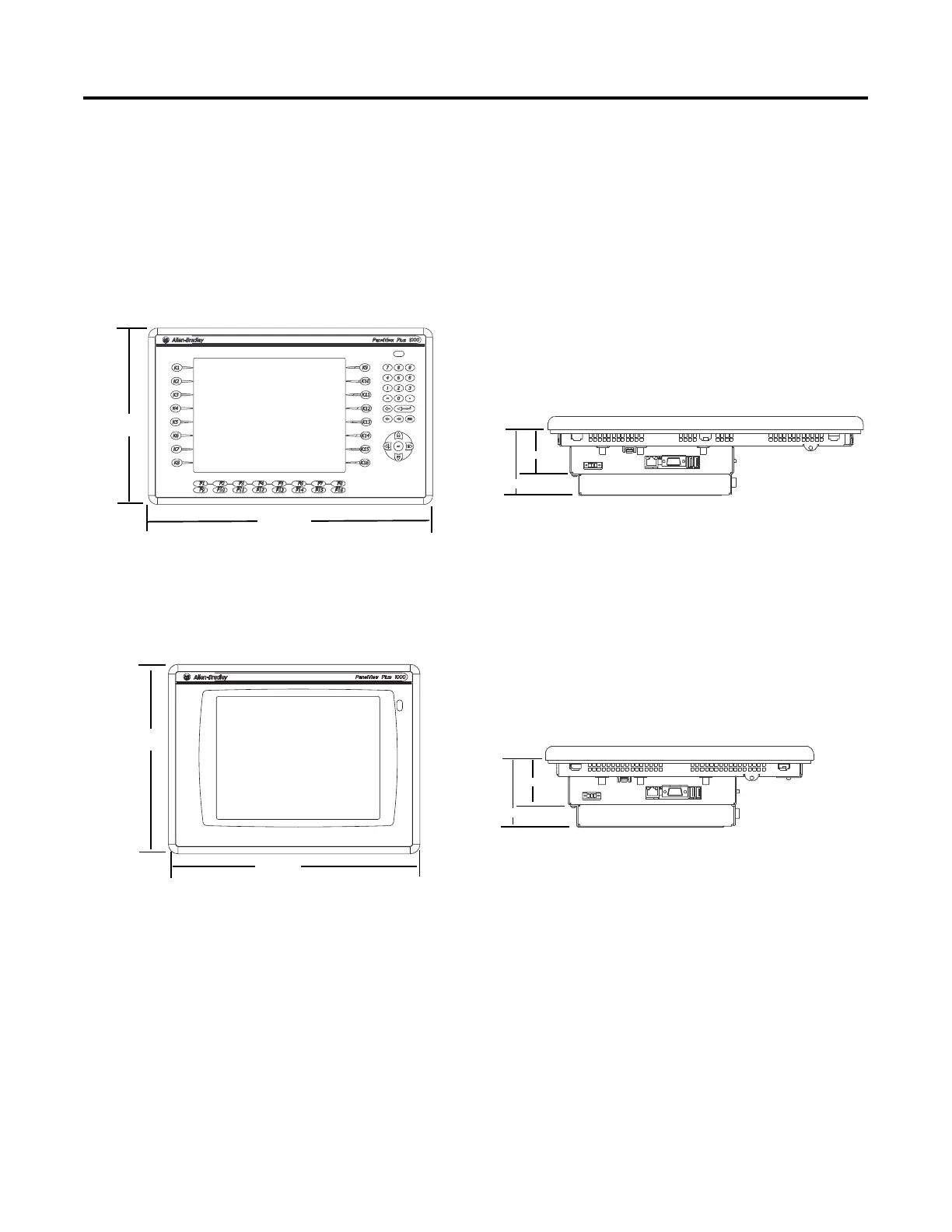

PanelView Plus 1000
The depth dimensions are shown for:
• base configured unit (Display Module and Logic Module)
• base configured unit with Communication Module
329
(12.97)
248
(9.77)
399
(15.72)
248
(9.77)
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
b
a
a
b
1000 Keypad or Keypad & Touch Terminal
1000 Touch Screen Terminal
