Allen-Bradley PanelView Plus 2711P User Manual

Publication 2711P-UM001B-EN-P
Installation 2-9

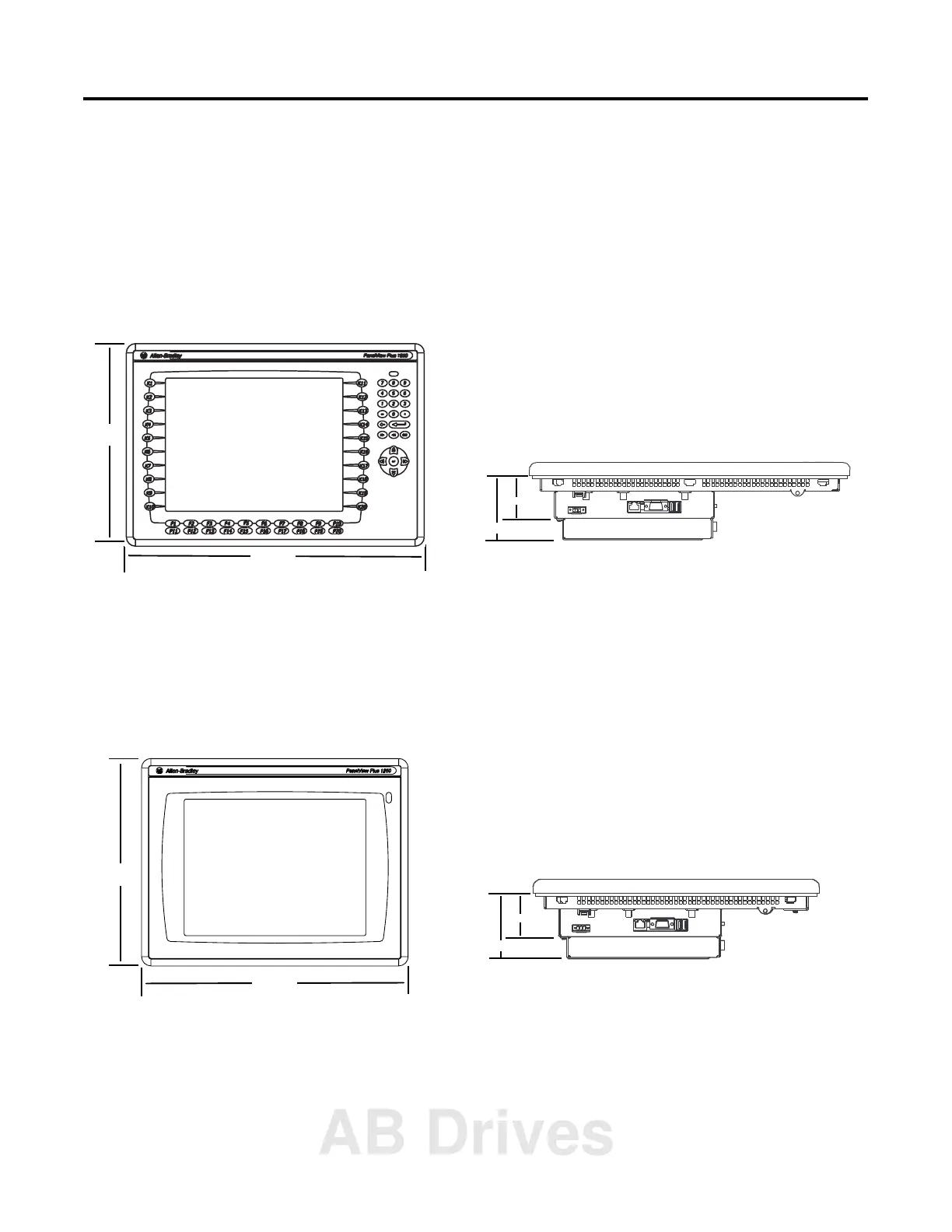

PanelView Plus 1250
The depth dimensions are shown for:
• base configured unit (Display Module and Logic Module)
• base configured unit with Communication Module
282
(11.12)
416
(16.36)
363
(14.30)
282
(11.12)
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
a 55 (2.18) Display to Logic Module
b 83 (3.27) Display to Communication Module
a
b
a
b
1250 Keypad or Keypad & Touch Terminal
1250 Touch Screen Terminal
