Allen-Bradley PanelView Plus 2711P User Manual

Publication 2711P-UM001B-EN-P
2-10 Installation
PanelView Plus 1500

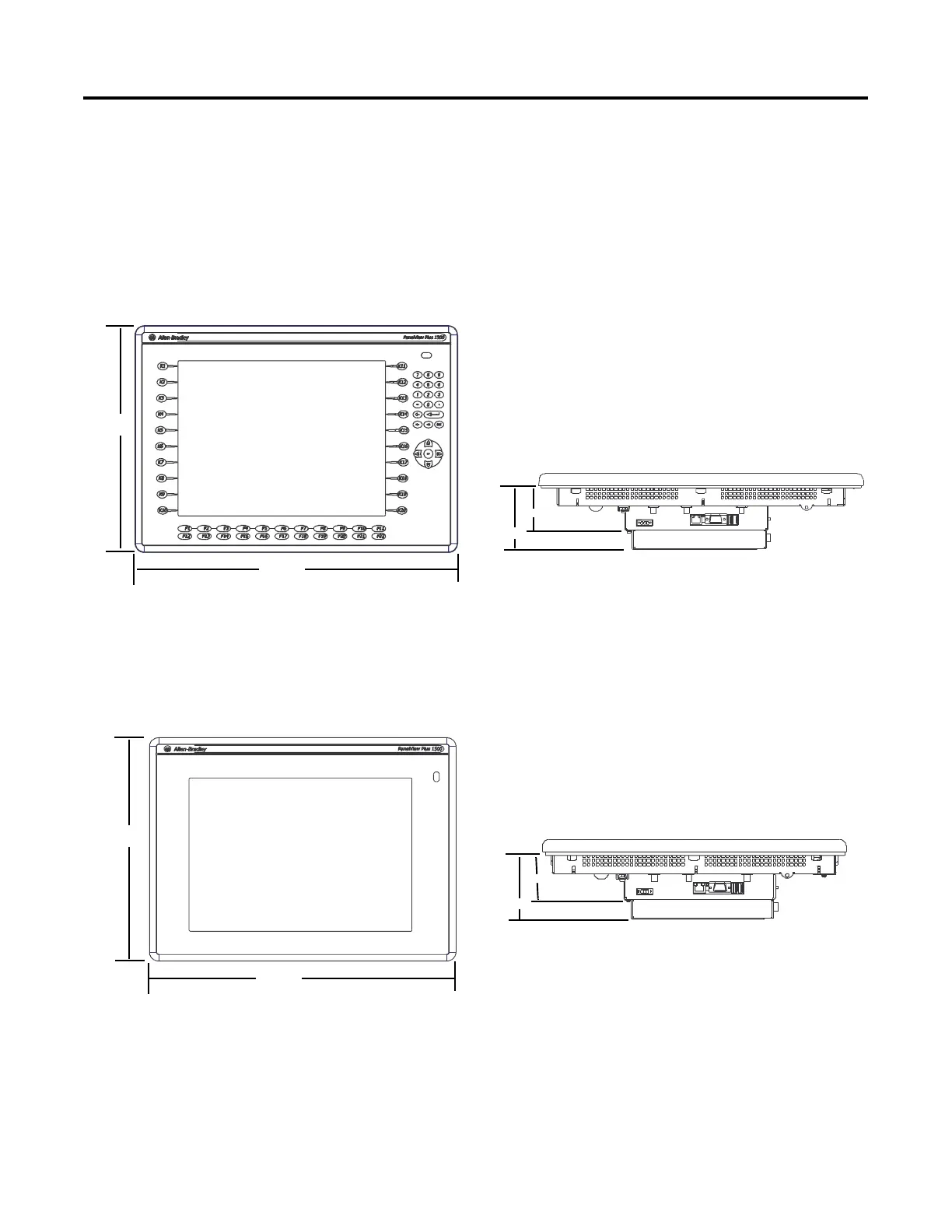

The depth dimensions are shown for:
• base configured unit (Display Module and Logic Module)
• base configured unit with Communication Module
1500 Touch Screen Terminal
330
(12.97)
419
(18.46)
416
(16.37)
330
(12.97)
a 65 (2.55) Display to Logic Module
b 93 (3.65) Display to Communication Module
a 65 (2.55) Display to Logic Module
b 93 (3.65) Display to Communication Module
a
b
a
b
1500 Keypad or Keypad & Touch Terminal
