Allen-Bradley PanelView Plus 6 User Manual

Rockwell Automation Publication 2711P-UM006E-EN-P - January 2017 15
Overview Chapter 1

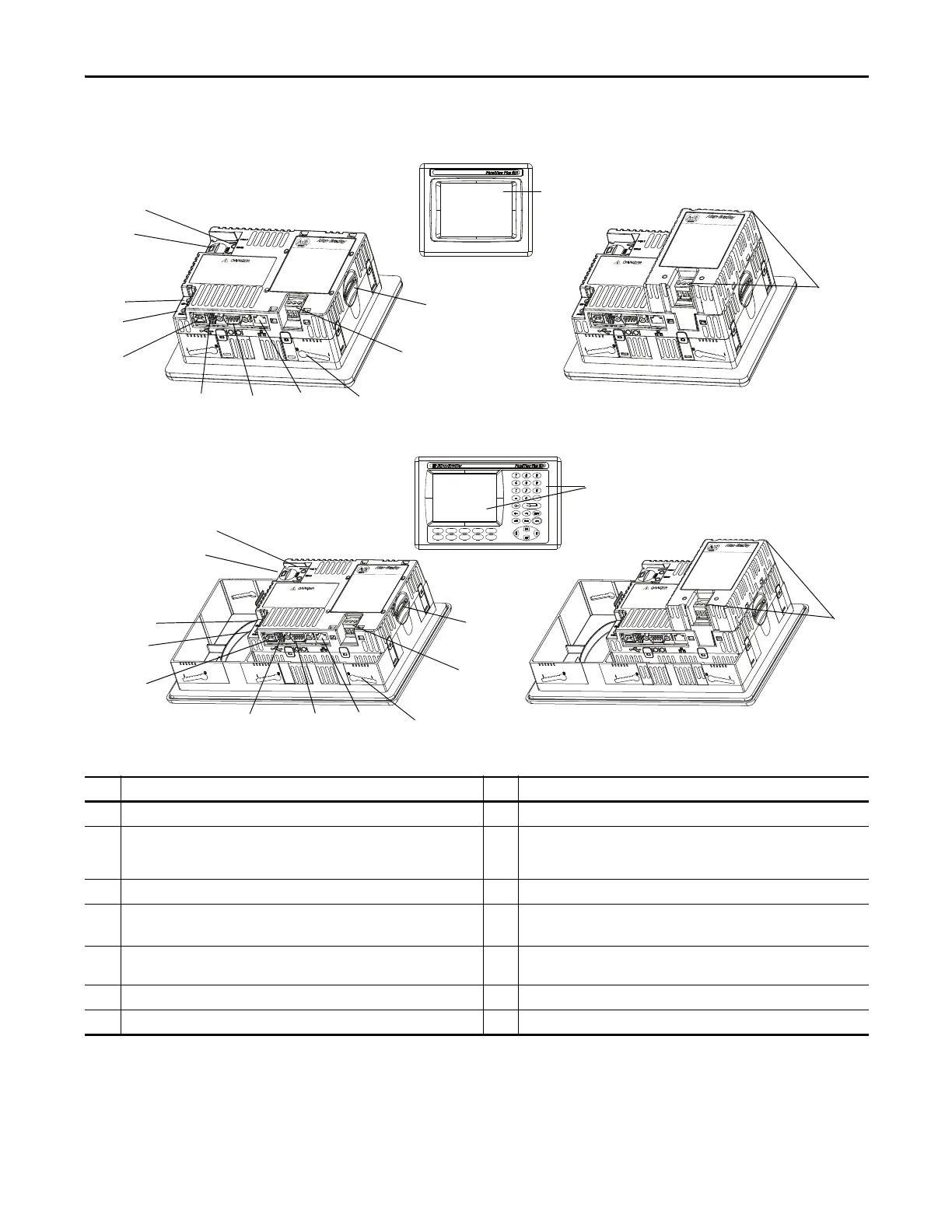

Figure 2 - 600 Touch Terminals
Figure 3 - 600 Keypad or Keypad/Touch Terminals
8
9
10
12
11
5
7
6
3a
2
4
3b
1a
8
9
10
12
11
7
5
6
3a
2
4
3b
F1
F2
F4F3 F5
F6
F7
F9F8 F10
1b
Table 4 - PanelView Plus 6 - 600 Terminal Components
Item Component Item Component
1a 5.7-in. color or grayscale display with a touch screen 6 RS-232 serial port for controller communication, printing, or file transfers
1b 5.7-in. color or grayscale display with either a:
• Keypad
• Combination keypad and touch screen
7 One USB 2.0 high-speed (type A) host port for attaching USB peripherals
including mouse, keyboard, printer, and USB drives that are hot-swappable in
nonhazardous locations
2 Secure Digital (SD) card slot supporting cat. no. 1784-SDx cards 8 One USB 2.0 high-speed (type B) device port for connecting a host computer
3a DC power input, nonisolated
(1)
24V DC nom (18…30V DC)
9 Reset switch to reset the terminal without having to power off and on
3b AC power supply module with AC power input
(1)
100…240V AC (50…60 Hz)
10 Default switch to access maintenance operations such as restoring factory
defaults
4 Mounting slots (four on touch terminals; six on keypad terminals) 11 Battery compartment
5 Ethernet port for controller communication, 10/100Base-T, Auto MDI/MDI-X
(2)
12 Indicators provide communication and fault status
(1) Presence of a DC power input or the AC power supply module is catalog number dependent. Removing the AC power supply module voids the terminal warranty.
(2) Presence of Ethernet port is catalog number dependent.
