Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 103

Configure Integrated Motion Using a PowerFlex 755 Drive Chapter 5

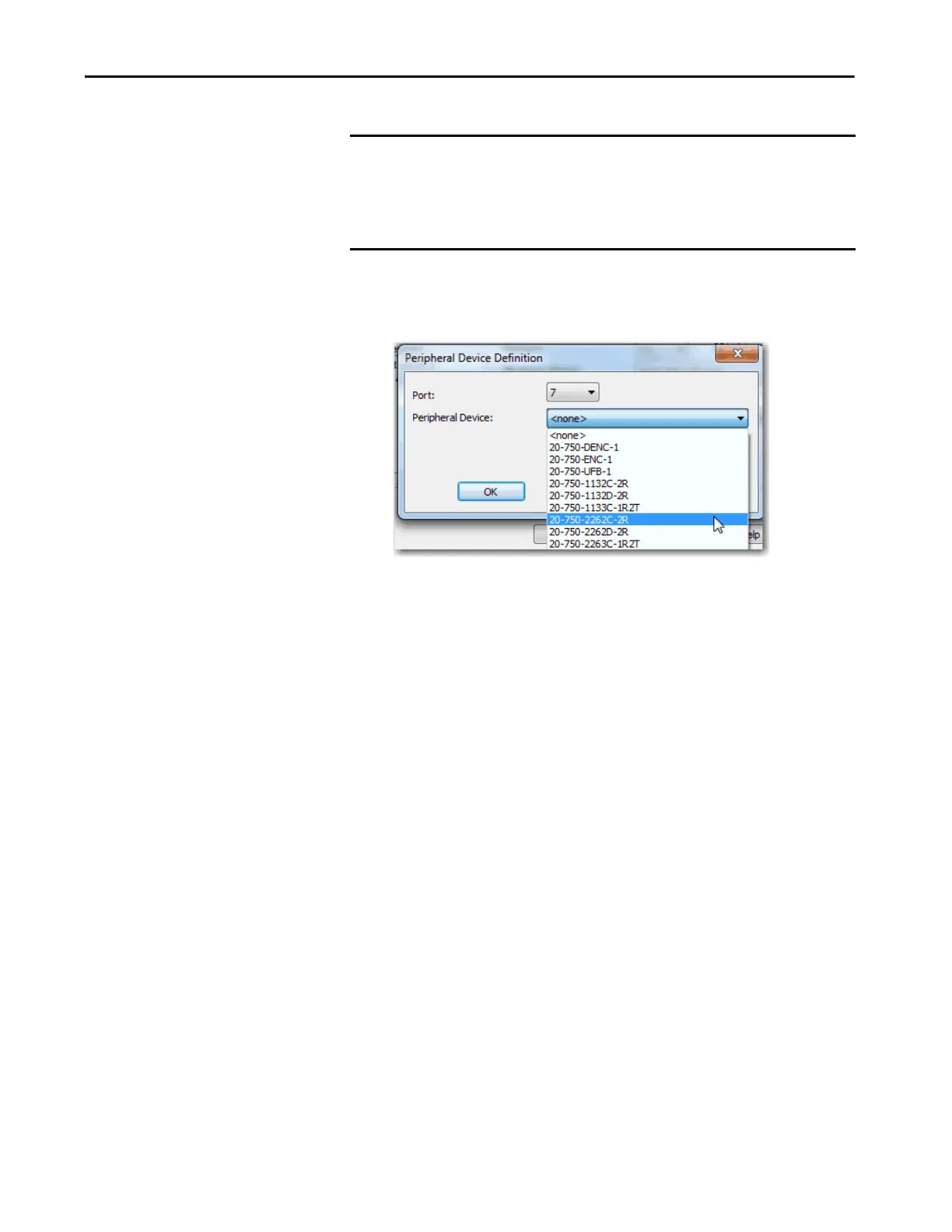

3. From the Peripheral Device pull-down menu, choose the appropriate

catalog number.

This example uses 20-750-2262C-2R.

IMPORTANT For the I/O card Peripheral Device selection: the 20-750-11xx card supports

the configuration of four digital inputs, while the 20-750-22xx cards support

the configuration of eight digital inputs. Once you select the Peripheral

Device, the Digital Inputs tab allows for configuration of the specified digital

inputs.
