Axis Scheduling
Configuration

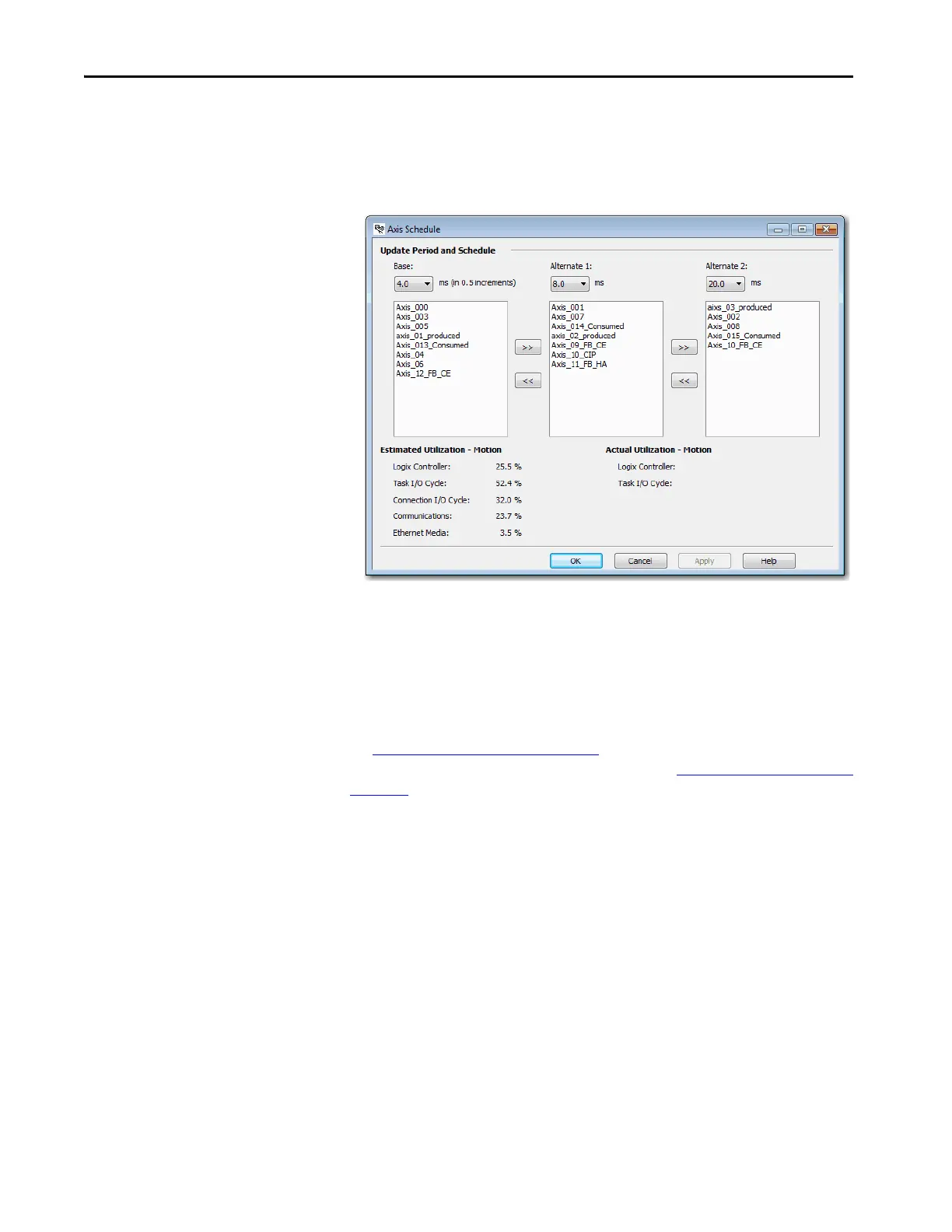

In the Studio 5000 Logix Designer application, you use the Axis Schedule
Panel, accessible from the Attribute tab of the Motion Group Properties dialog
box, to configure the update periods. The Axis Schedule Panel provides a Base
Update Period and two alternatives. Information such as Estimated Utilization
and Actual Utilization appear on this panel.
The alternative rates for lower performance drives provide a way for multiple
drives to be ‘multiplexed’ through one drive update channel. Axis Scheduling
allows multiple drives to be updated by using the same amount of controller
and network capacity as used in updating one non-multiplexed drive.
For more information on how to configure a motion group for Kinetix drives,
see Create a Motion Group on page 42
. For more information on how to
configure a motion group for PowerFlex drives, see Create a Motion Group on
page 111.
