Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 127

Configure Integrated Motion Using a PowerFlex 755 Drive Chapter 5

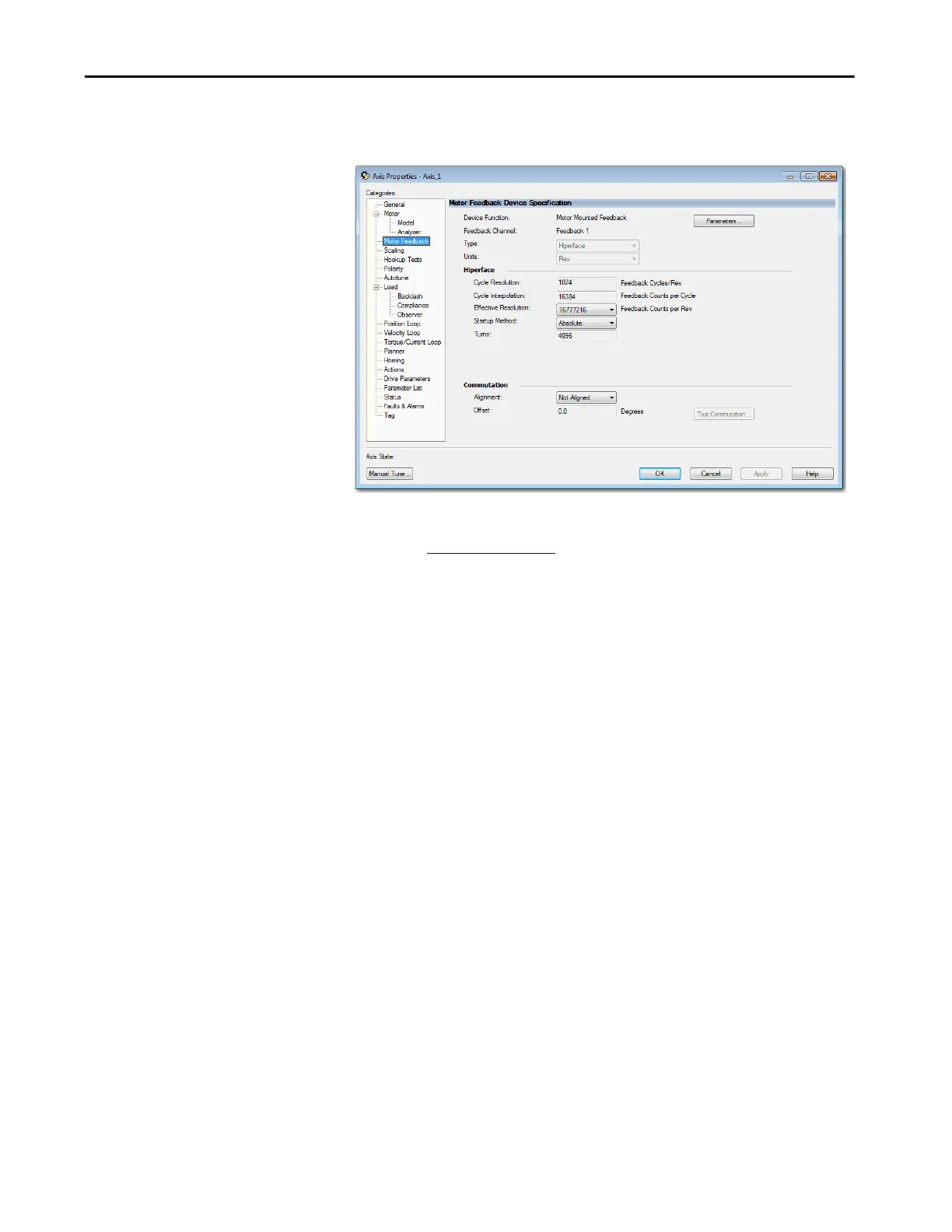

An example of the Motor Feedback category for version 28 with selectable

Effective Resolution is shown in the following figure.

See the Integrated Motion on the EtherNet/IP Network Reference Manual,

publication MOTION-RM003

, for more information on axis attributes.
