Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 157

Axis Scheduling Chapter 7

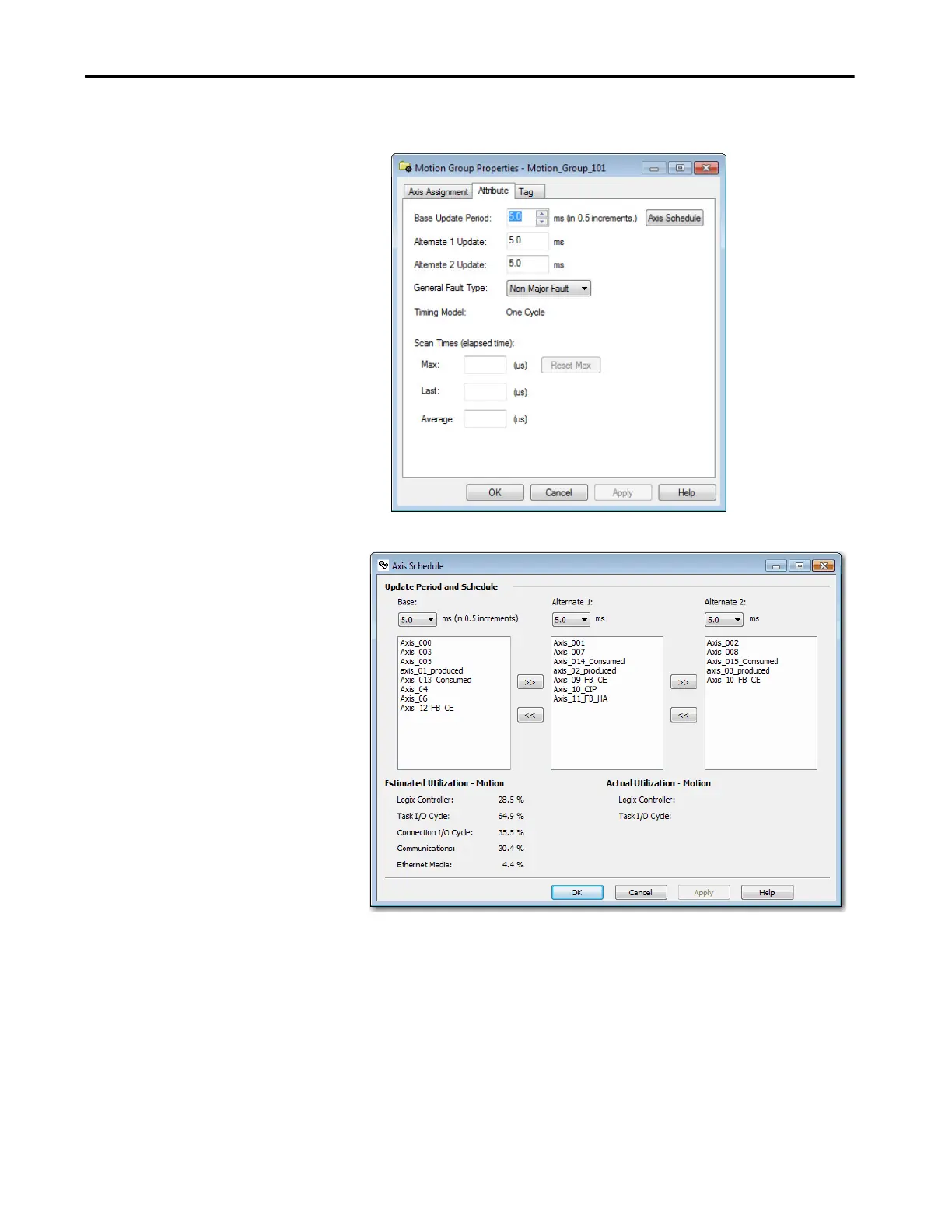

After you click Apply (or OK), the values in the alternate fields change

to match the base.

The values are also changed in the Axis Schedule Panel.
