4. Click Change Catalog and choose your motor, for example, catalog
number MPAR-A1xxxB-V2A.

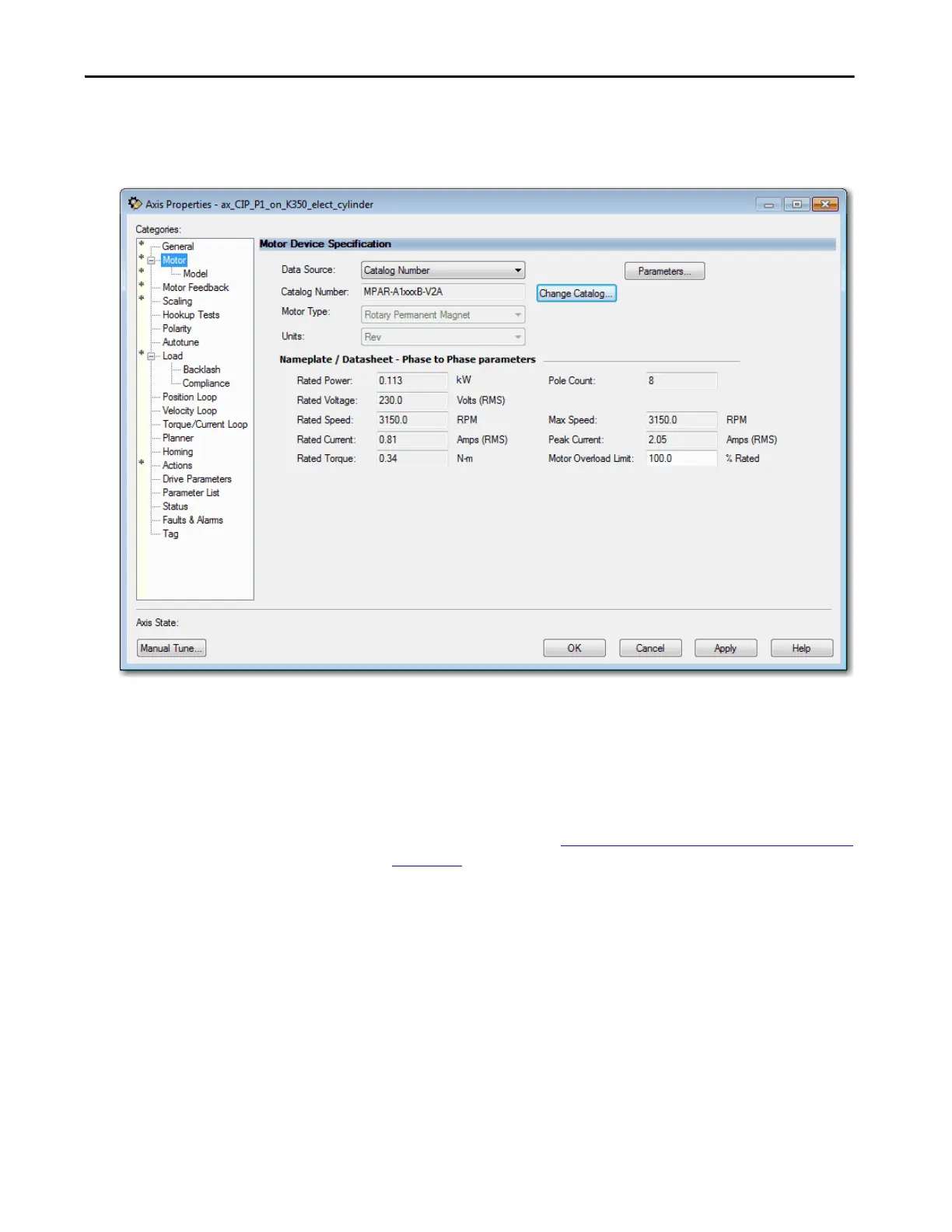

Figure 44 - Example 5: Position Loop with Motor Feedback, Motor Dialog Box
When you select the Catalog Number for the motor specification, the
MPAR-A1xxxB-V2A motor is in the Motion Database. The
specification data for this motor is automatically completed for you.
If the motor you are using is not in the Change Catalog list, then it is not
in the Motion Database. You must input the specification data or add a
custom motor to the Motion Database that can be selected.
For more information, see Choose Nameplate as the Motor Data Source
on page 52.
