Configuration Examples for a Kinetix Drive Chapter 8
6. To adjust the Scaling attributes, click the Scaling dialog box.

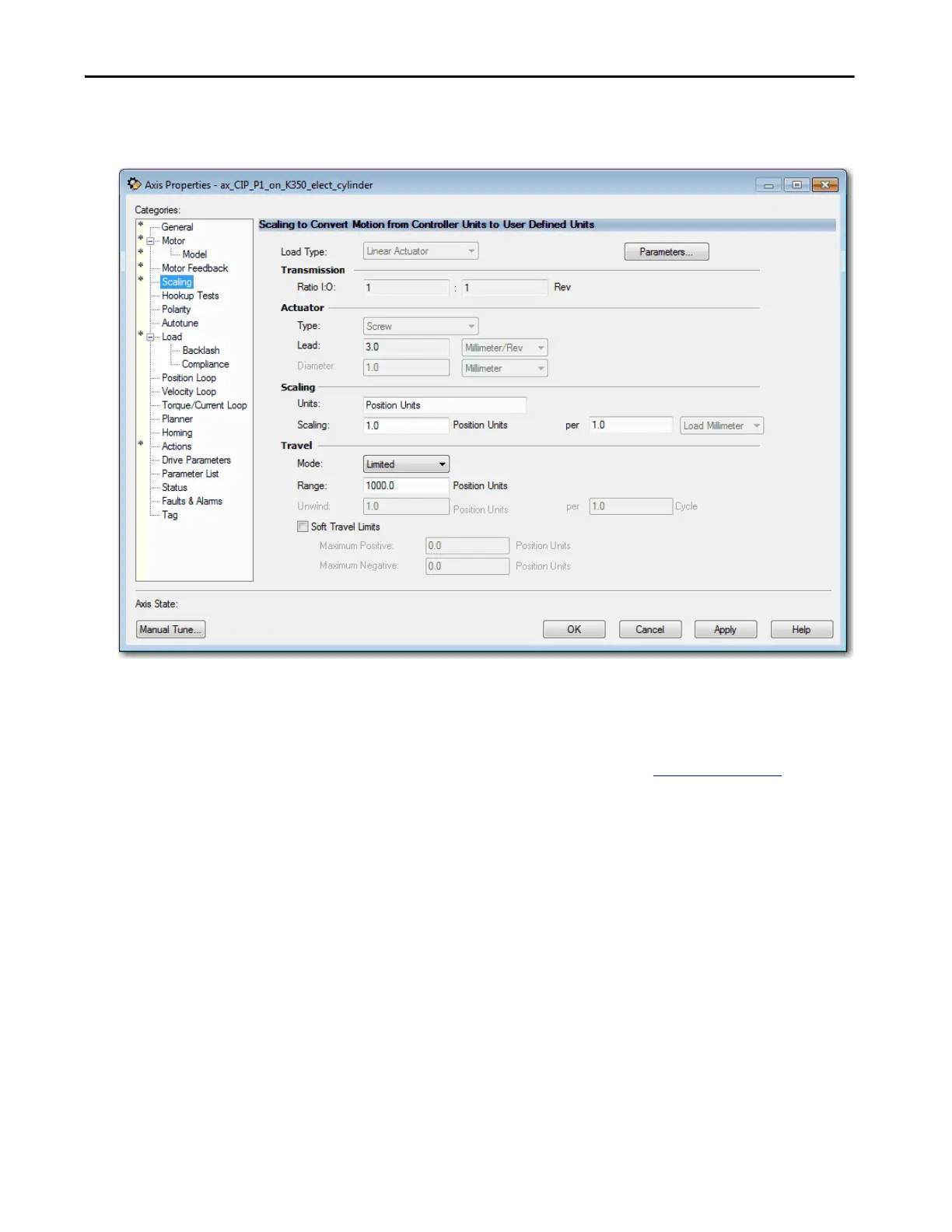

Figure 46 - Example 5: Position Loop with Motor Feedback
The default load type is linear actuator.
7. Enter the Scaling Units.
8. Enter the Travel Range.
For more information about Scaling, see Scaling on page 222
.
9. Click OK.
You are now finished configuring the Kinetix 350 axis for Position Loop with
Motor Feedback.
