Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 197

Axis Configuration Examples for the PowerFlex 755 Drive Chapter 9

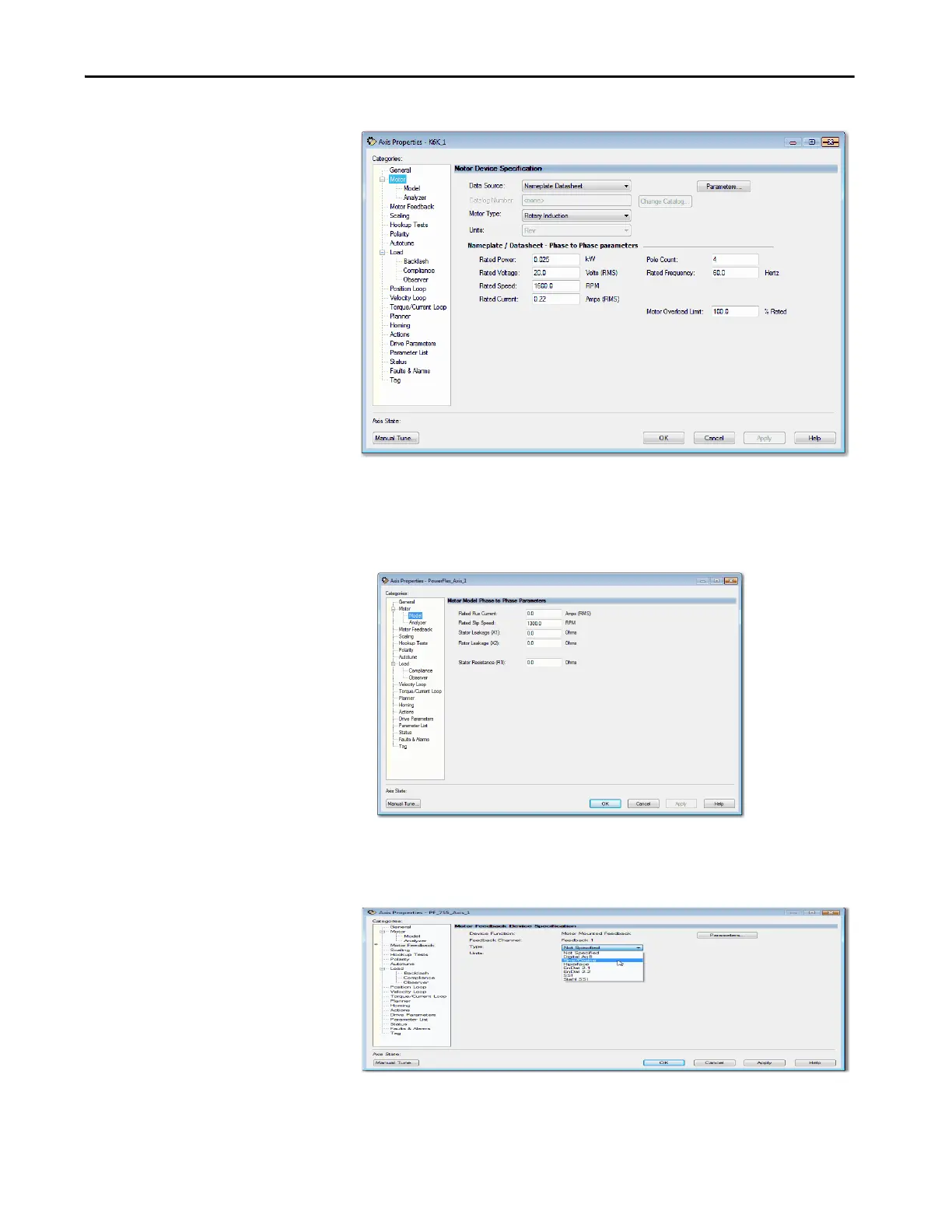

Figure 67 - Example 3: Velocity Loop with Motor Feedback, Motor Dialog Box

5. From the Data Source pull-down menu, choose Nameplate data sheet.

6. From the Motor Type pull-down menu, choose Rotary Induction.

7. Enter the parameters by using the information from the motor

Nameplate or data sheet and click Apply.

8. Enter the parameters on the Motor Model dialog box by using the

information from the motor Nameplate or data sheet and click Apply.

Figure 68 - Example 3: Motor Feedback Dialog Box, Velocity Loop with Motor Feedback
