208 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019
Chapter 9 Axis Configuration Examples for the PowerFlex 755 Drive

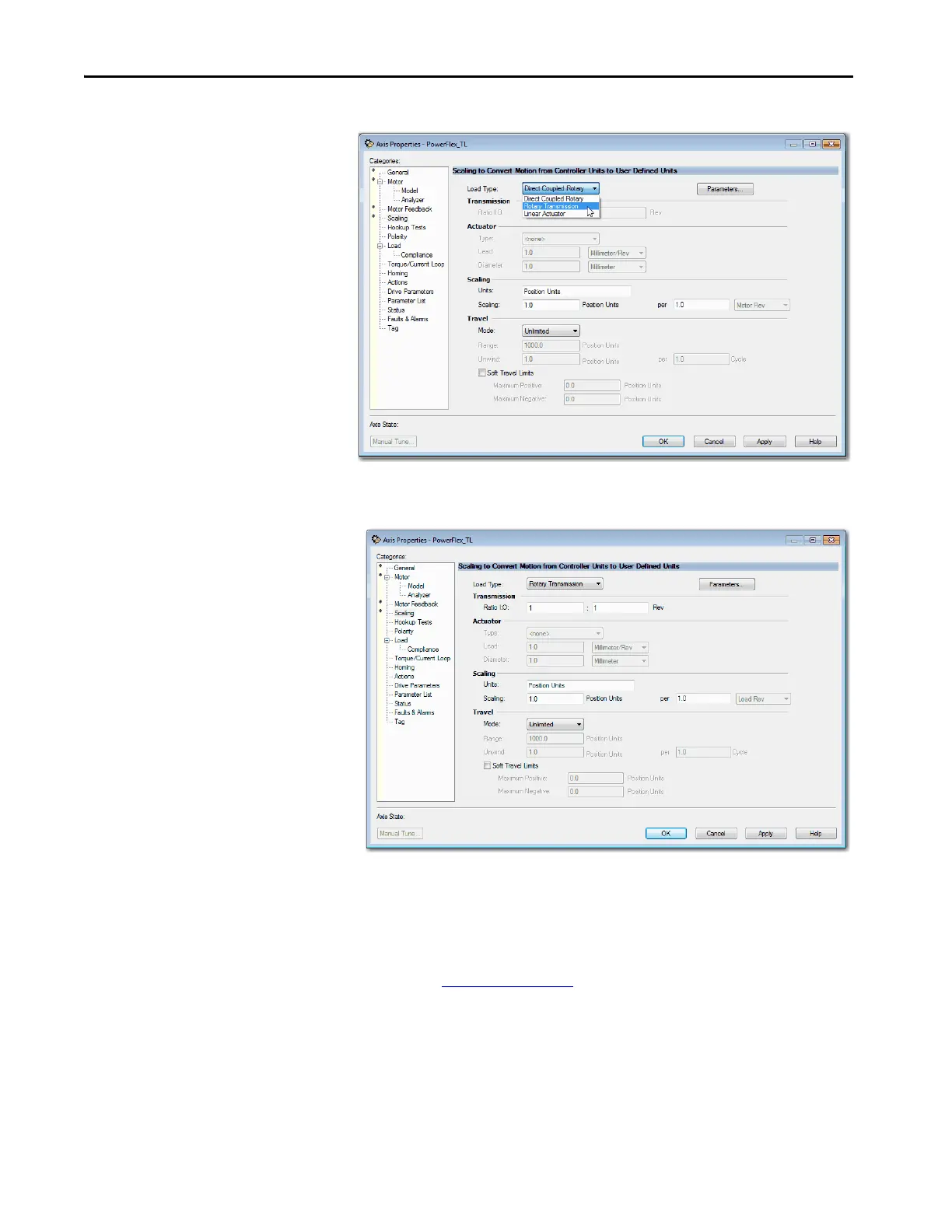

Figure 85 - Example 6: Torque Loop with Motor Feedback, Scaling Load Type
5. From the Load Type pull-down menu, choose the appropriate load type.
Figure 86 - Example 6: Torque Loop with Motor Feedback, Scaling Conversions
6. Enter the Transmission Ratio.
7. Enter the Scaling Units.
8. From the Travel Mode pull-down menu, choose the appropriate travel
mode.
See the Scaling on page 222
for more information.
9. Click Apply.
You are now finished configuring the axis for Torque Loop with Motor
Feedback.
