Axis Configuration Examples for the PowerFlex 527 Drive Chapter 10
6. Select the Motor category.
The Motor Device Specification dialog box appears.

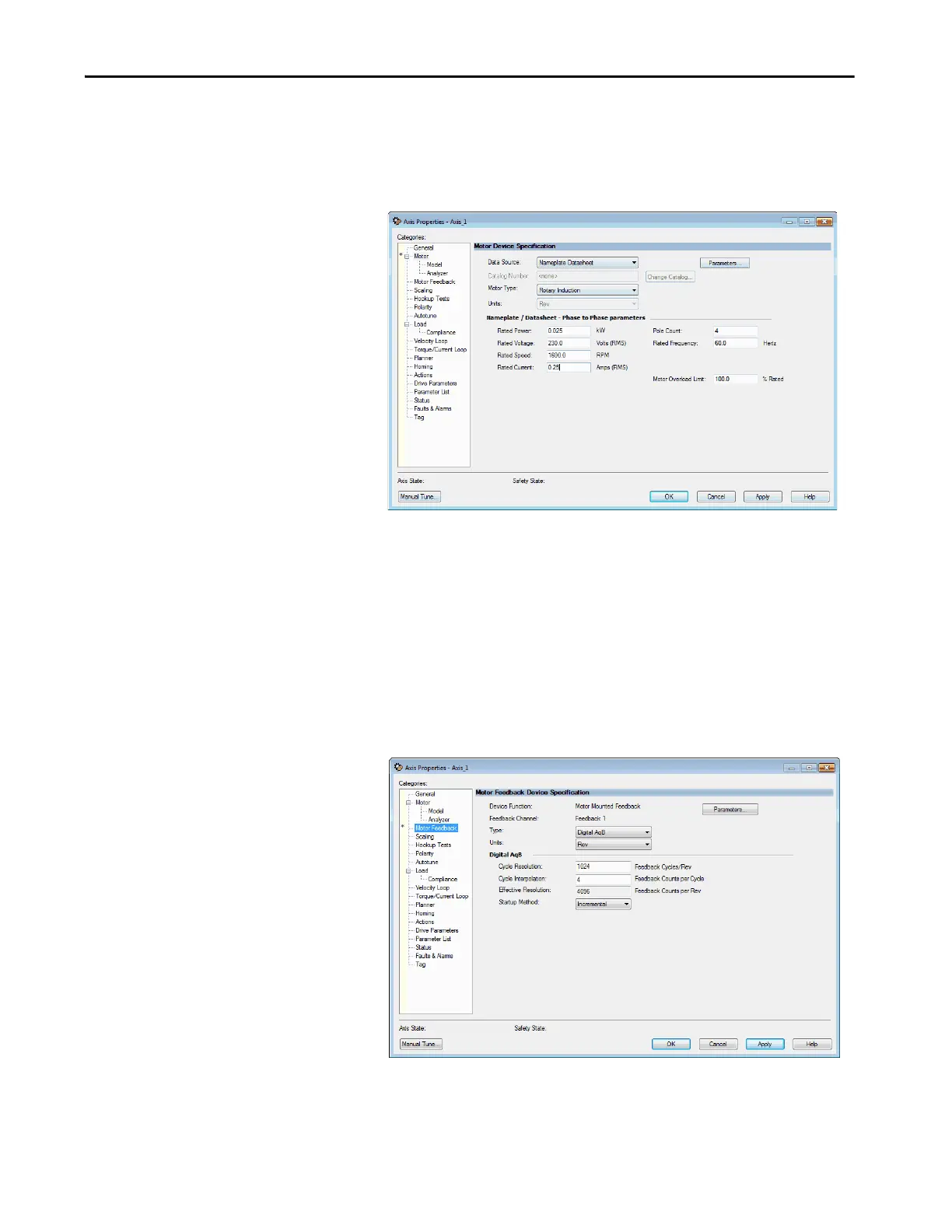

Figure 94 - Example 2: Velocity Control with Motor Feedback, Motor Device Specification
Dialog Box
7. From the Data Source pull-down menu, choose Nameplate data sheet.
This selection is the default setting.
8. From the Motor Type pull-down menu, choose Rotary Induction.
9. From the motor nameplate or data sheet, enter the phase-to-phase
values.
10. Click Apply.
11. Select the Motor Feedback category.
Figure 95 - Example 2: Velocity Control with Motor Feedback, Motor Feedback Device
Specification Dialog Box
12. Enter the specifications of your encoder into the fields.
13. Click Apply.
