Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 251

Commission an Axis Chapter 11

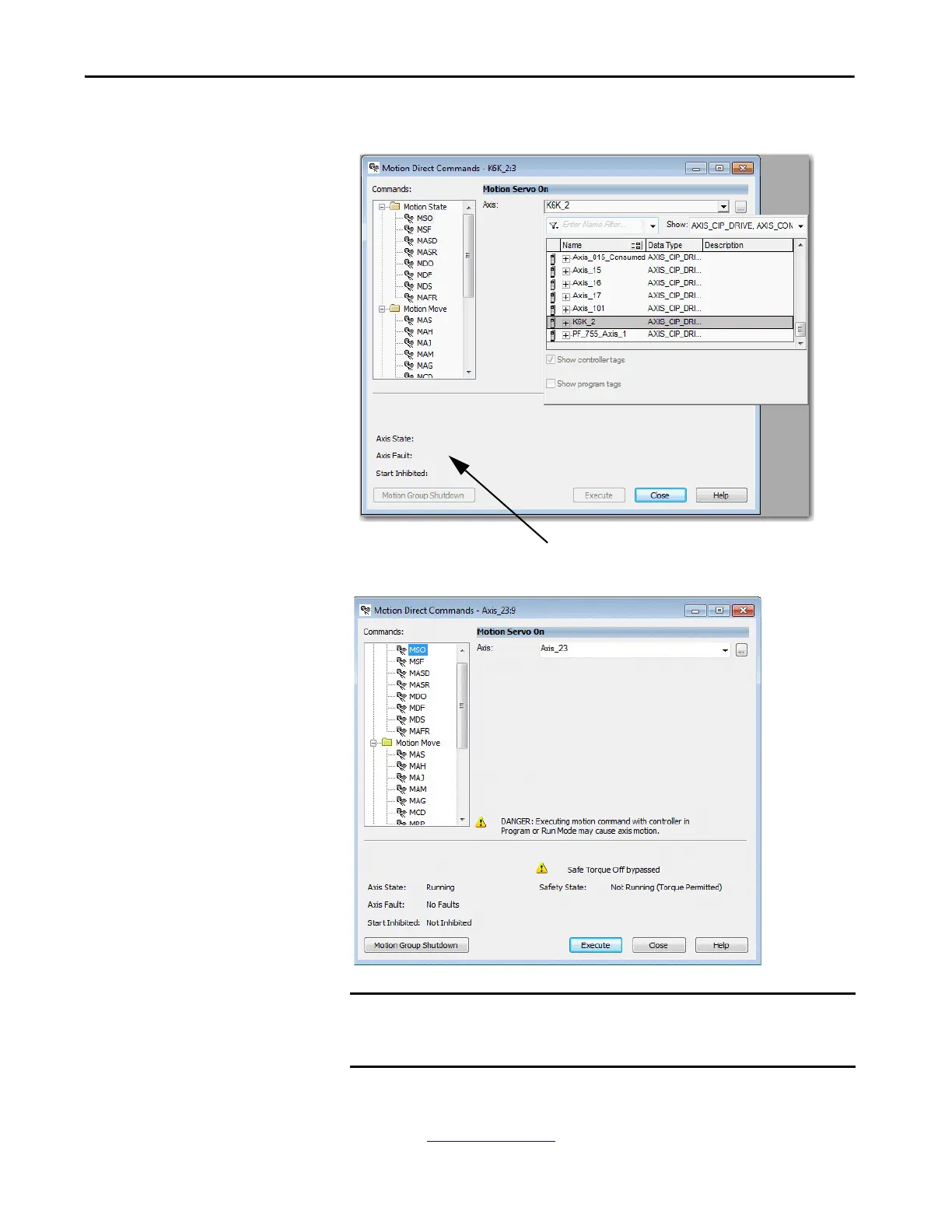

You can access an axis by using the pull-down list. Axis status indicators are in

this dialog box.

This dialog box is an example of axis indicator values.

For more information about the Flying Start Attribute, see the Integrated

Motion on the EtherNet/IP Network Reference Manual,

publication MOTION-RM003

IMPORTANT The device spins at the command velocity once you execute an MDS

command if you use a PowerFlex 755 drive in Velocity Mode with Flying Start

Enable set to true.

Axis Status Indicators
