324 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019

Appendix B Out of Box Configuration for PowerFlex Drives

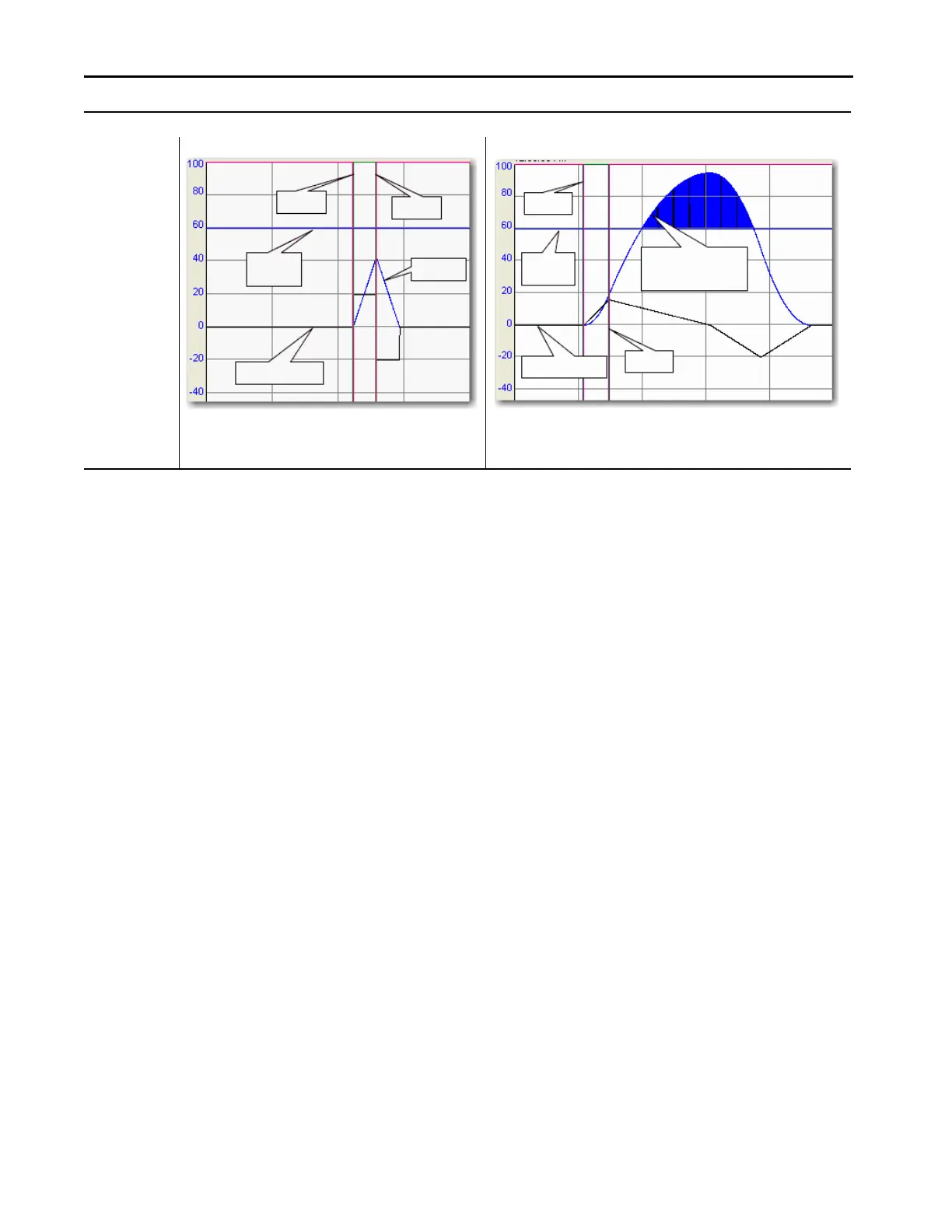

Stop While Accelerating and Reduce the Acceleration Rate

Trapezoidal S-curve

The axis slows down as soon as you start the stopping instruction.

The lower acceleration doesn’t change the response of the axis.

The stopping instruction reduces the acceleration of the axis. It now takes longer to

bring the acceleration rate to 0. The axis continues past its target speed until

acceleration equals 0.

jog

target

speed

acceleration

stop

speed

jog

target

speed

acceleration

stop

speed goes past

its target
