Configure Integrated Motion Control Using Kinetix 5700 Drives Chapter 4
If you have already created an axis and associated in with a drive, the Associated
Module and Axis are shown on the General category of the Axis Properties
dialog box. Otherwise, you can select them here.

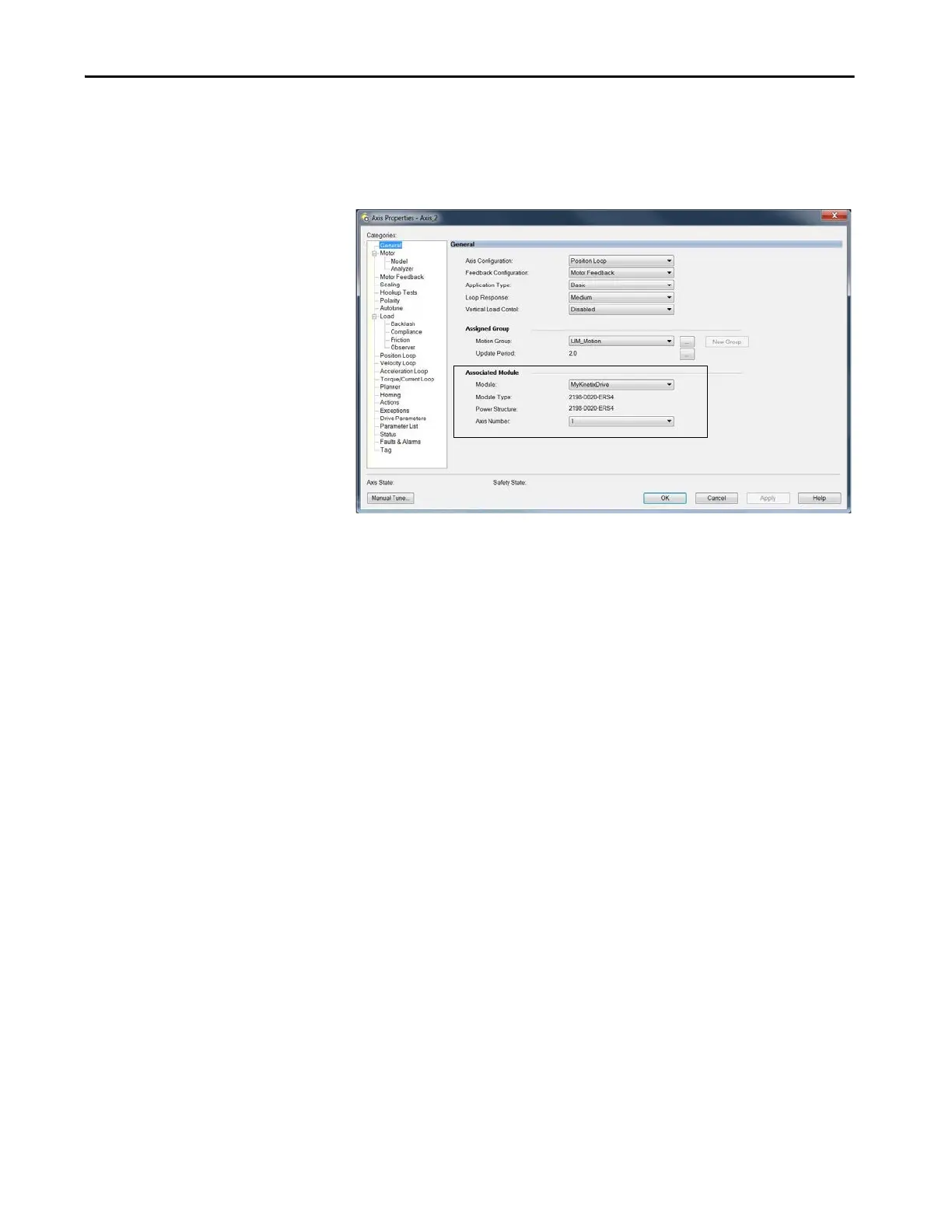

Figure 10 - General Category Dialog Box
^^ for an inverter
ss for a converter
The Axis Number field corresponds to the axes listed on the Associated Axes
tab of the Module Properties dialog box. Any feedback port assignments that
you made on the Associated Axes tab are also mapped to the drive when you
associate an axis and a drive.
