130 Rockwell Automation Publication 750-IN100B-EN-P - July 2017
Chapter 5 Power Wiring

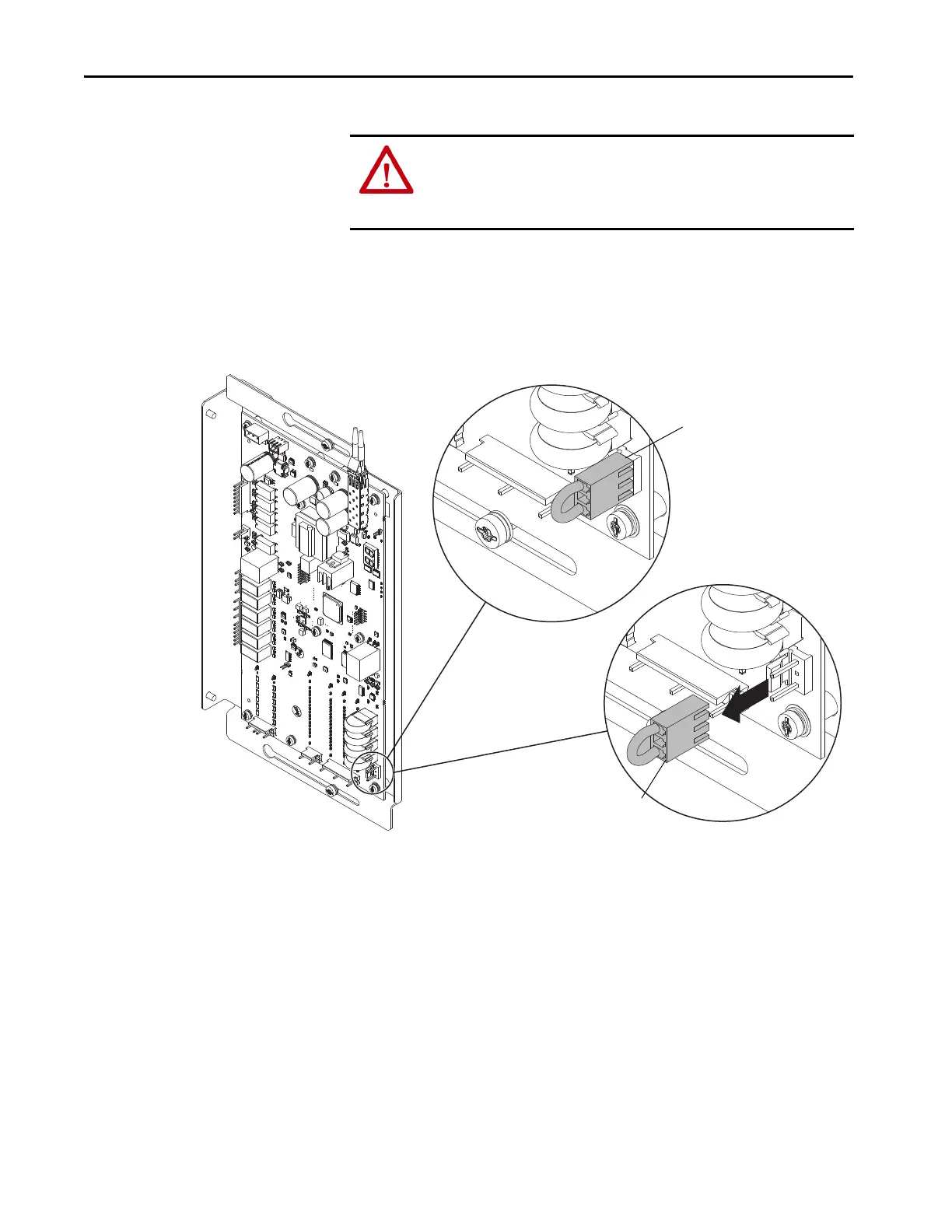

Recommended PE-A Jumper Configuration
The PE-A power jumper (connector P8) connects to J8 on the AC precharge
control circuit board (cat. no. 20-750-MACPC1-xx).
ATTENTION: Hazard of equipment damage exists if jumpers are not properly
disconnected or are set differently between power and LCL filter modules.
Secure a disconnected jumper in the socket or on the insulated spacer that is
provided and verify that all modules are configured identically.
Jumper PE-A IN
Jumper PE-A OUT
AC Precharge Control Circuit Board
To Next Page
