Chapter 5 Power Wiring
Recommended PE-A2 Jumper Configuration
The PE-A2 power jumper is connected to the AC common mode filter circuit
board in the LCL filter modules.

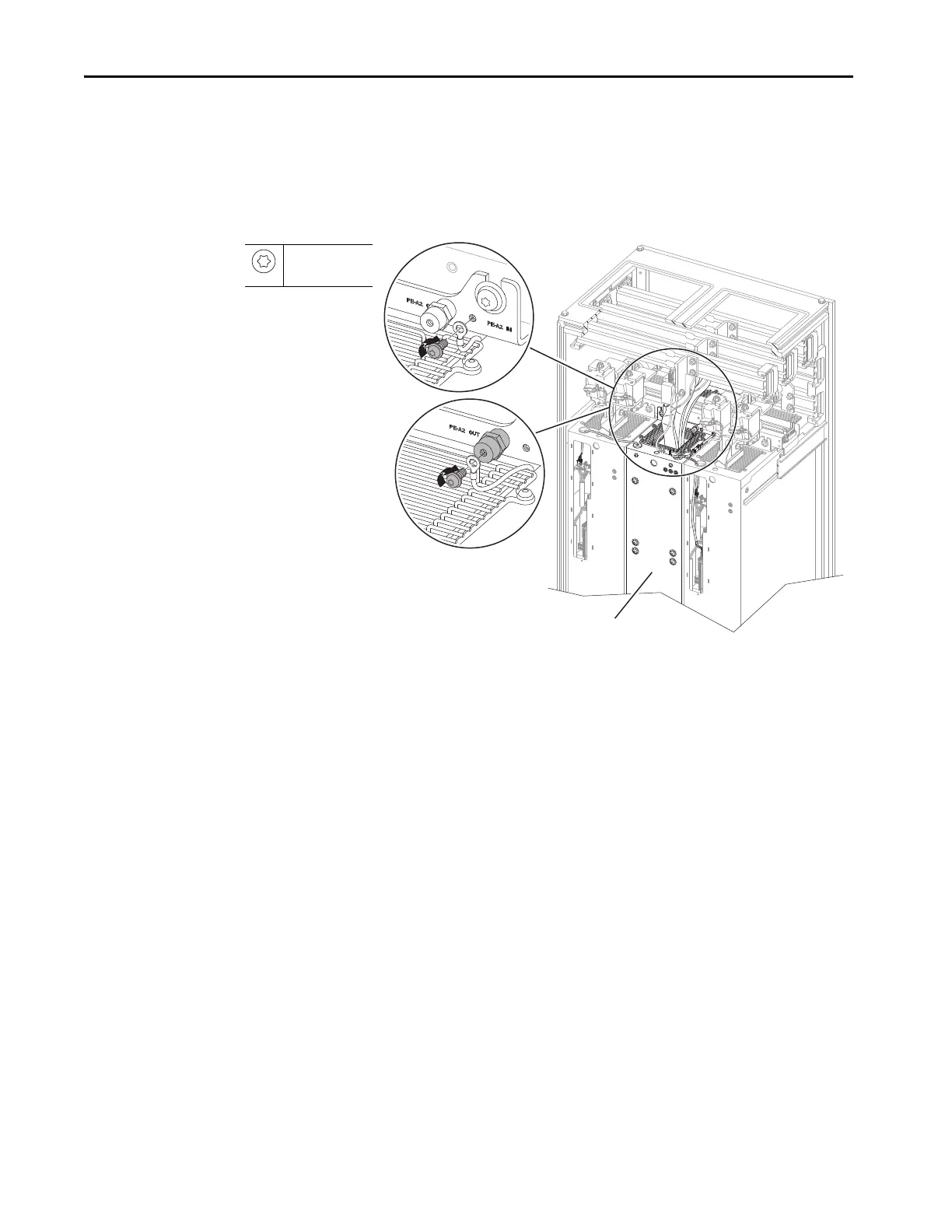

Figure 65 - Recommended PE-A2 Jumper Configuration
M6 x 20 mm
T45
5.2 N•m (46 lb•in)
Jumper PE-A2 IN
Jumper PE-A2 OUT
LCL Filter Module
