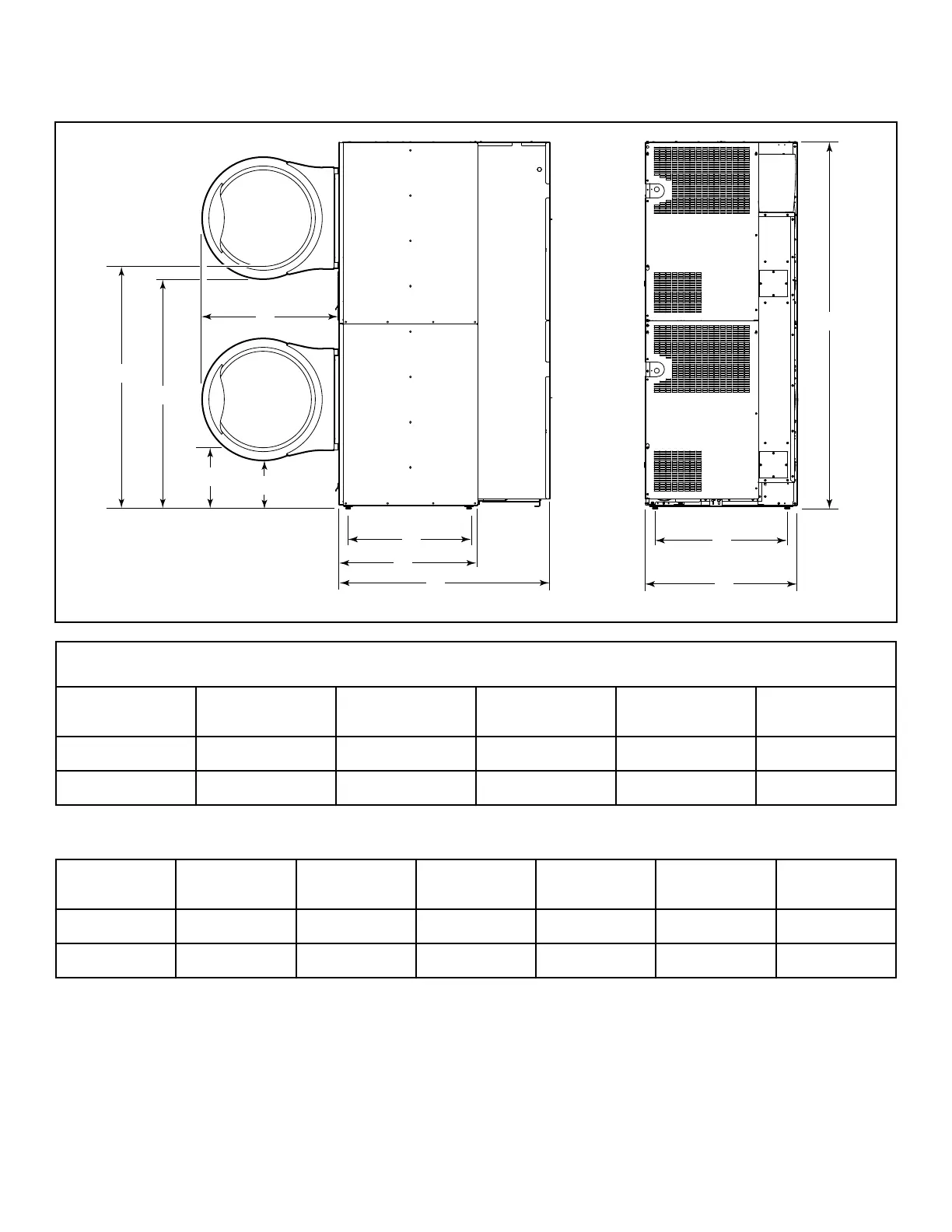

Cabinet Dimensions – T30 and T45 Series
Machine Dimensions, in. [mm]
Models A B C D E
T30 Series 28.0 [710] 49.0 [1,245] 48.3 [1,225] 11.4 [290] 10.7 [270]
T45 Series 31.9 [810] 50.4 [1,280] 49.3 [1,250] 10.3 [260] 9.3 [235]
Table 4
Models F G H I J K
T30 Series 25.0 [635] 28.7 [730] 43.6 [1,100] 27.4 [695] 31.5 [800] 76.3 [1,940]
T45 Series 29.0 [735] 32.7 [830] 49.5 [1,260] 30.4 [770] 34.5 [875] 81.3 [2,065]
NOTE: To meet Americans with Disabilities Act (ADA)
compliance, install a 4 inch [100 mm] riser on T30 mod-
els only.
Specifications and Dimensions
©
