Gas Category
Country
Gas
Category
Supply Pressure (mbar)
Manifold Pressure (mbar)
nominal
minimum
maximum
II
2L3B/P
RO G25 2L 20 17 25 12.0
G30 3B/P 30 (28-30) 25 35 *
I
3B/P
IS, MT G30 3B/P 30 (28-30) 25 35 *
I
2E(R)
BE G20 2E(R) 20/25 20 17 25 8.0
G25 2E(R) 20/25 20 17 25 12.0
I
3+
BE G30 3+ (28-30/37)
Butane
30 (28-30) 25 35 *
G31 3+ (28-30/37)
Propane
37 25 45 *
* Appliance regulator out of action

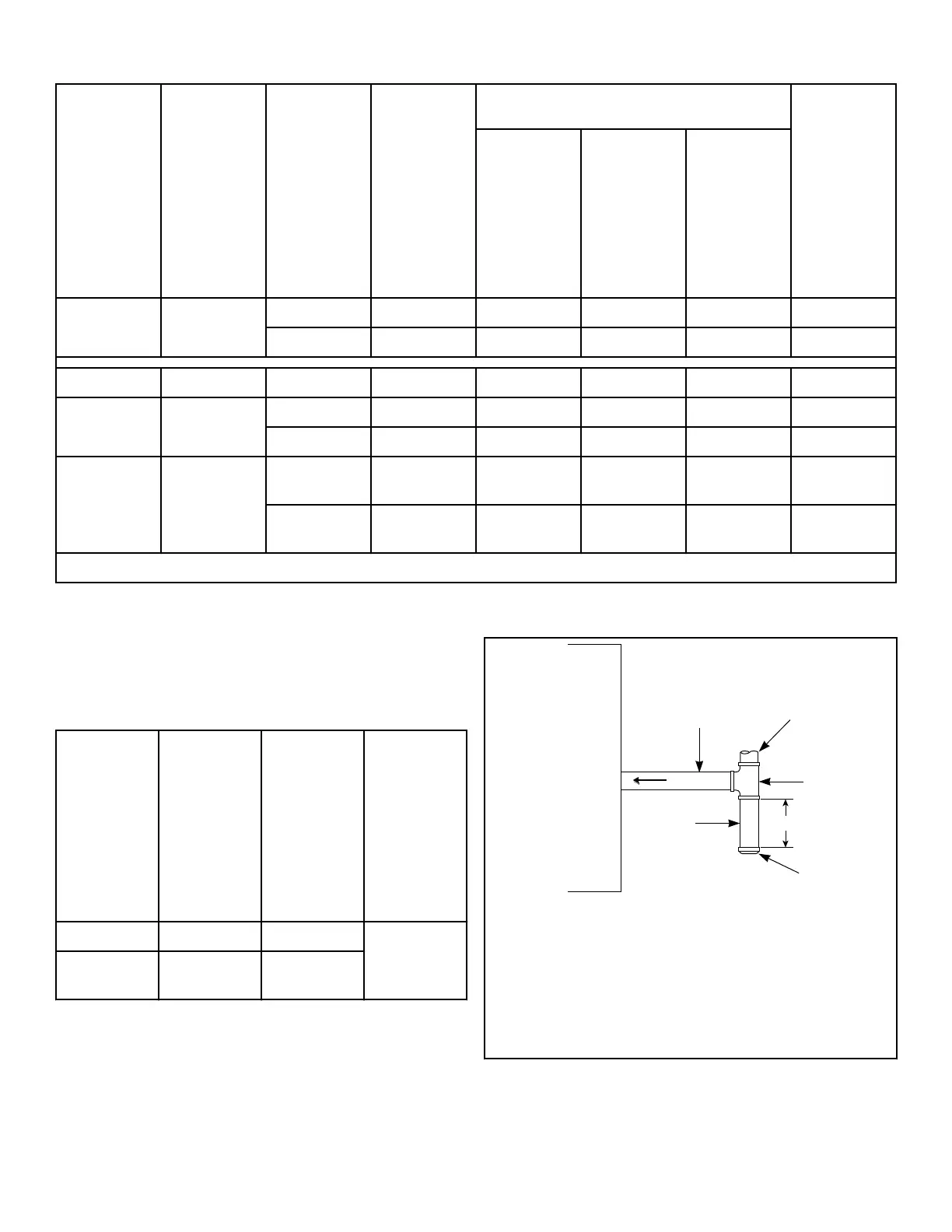

Table 14
Check manifold pressure. It is important that gas be supplied to
the tumble dryer in accordance with the requirements on the seri-
al plate. Refer to table below and Figure 1. If the manifold pres-
sure required adjustment, refer to How to Adjust Gas Valve Gov-
ernor/Regulator.
North America Models
Australia Models
CE Models
Natural Gas 3.5 in. w.c. 0.87 kPa Refer to Table
14
Propane/
L.P.G.
10.5 in. w.c. 2.36 kPa
The connection of gas supply to the appliance shall be made with
a flexible hose suitable for the appliance category in accordance
with national installation regulations of the country of destina-
tion. If in doubt, the installer shall contact the supplier.
1. Gas Line to Tumble Dryer
2. Gas Supply Piping System
3. Gas "T" Fitting
4. 3 in. [76 mm] Minimum Gas Pipe
5. Gas Pipe Cap
6. Sediment Trap
Figure 17
How to Change Burner Orifice Size
Gas Requirements
©
Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
49 Part No. 70686701ENR4
