ALLIANCE 030 Series Installation

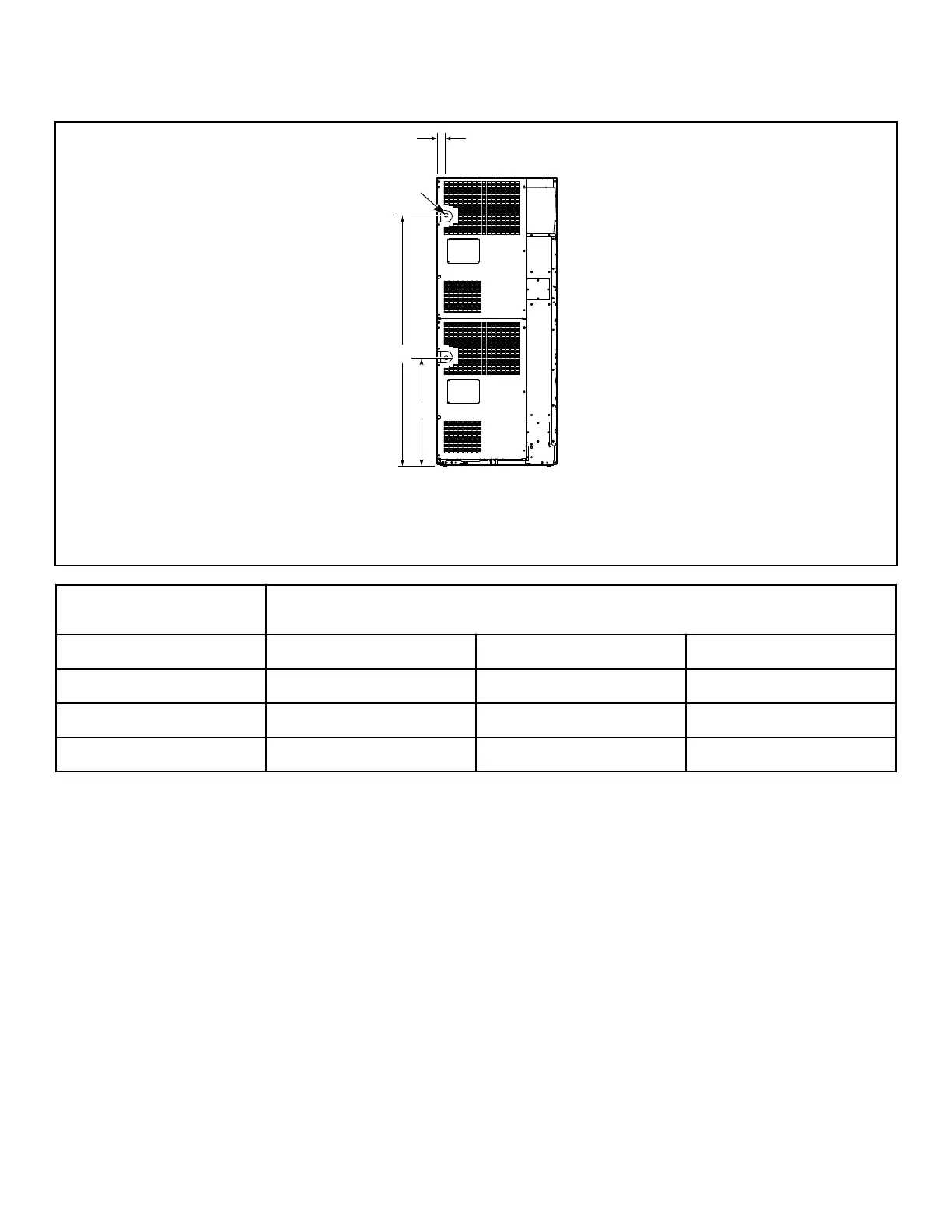

Electrical Connection Locations – T30 and T45 Series
TMB2729N_SVG
B
A
C
1
1. Gas Models: Electrical Connection 0.875 in. [22 mm] Diameter; Electric Models: Electrical Connection 1.375 in. [35 mm]
Diameter
2. Electrical Connection 1.375 in. [35 mm] Diameter
Models Electric Service Dimensions, in. [mm]
A B C
T30 Gas Series 66.2 [1,680] 2.3 [60] Not Applicable
T30 Electric Series 66.2 [1,680] 2.3 [60] 28.6 [725]
T45 Series 68.7 [1,745] 2.3 [60] Not Applicable
Table 10
