IMPORTANT: Temperature of the water supply must be
kept between 40°F and 120°F [4.5°C and 49°C] . If water
in the supply line or water solenoid valve freezes, the
fire suppression system will not operate.
IMPORTANT: If temperature sensors inside the tumble
dryer register a temperature below 40F° [4.5°C] , the
fire suppression system control will lock out. This fea-
ture protects against operation of the tumble dryer with
a possible frozen water supply. Only when the tempera-
ture sensors register a temperature 40F° [4.5°C] or
above will the machine reset for operation.
For installations where the tumble dryer must operate below 40°F
[4.5°C] , a cold weather fire suppression system relocation kit
(part no. 44340301) is available. Refer to the instructions provid-
ed in the kit for proper installation.
IMPORTANT: Flexible supply line/coupling must be
used. Solenoid valve failure due to hard plumbing con-
nections will void the warranty. It is recommended that
a filter or strainer be installed in the water supply line.
Water Connections
WARNING
Electrical shock hazard. Can cause death or serious
injury. If the water dispensing system is activated do
not attempt to operate the dryer. If the water dispens-
ing system is activated have the dryer inspected by a
qualified agency before operating the dryer.
• CALL THE FIRE DEPARTMENT.
• DO NOT disconnect electric power to the dryer.
• DO NOT disconnect water to the dryer.
• DO NOT touch the dryer.
W932
Connect tumble dryer to a backflow preventer (vacuum breaker)
before connecting to the public water main in all countries where
local regulations require specific water approval certificates.

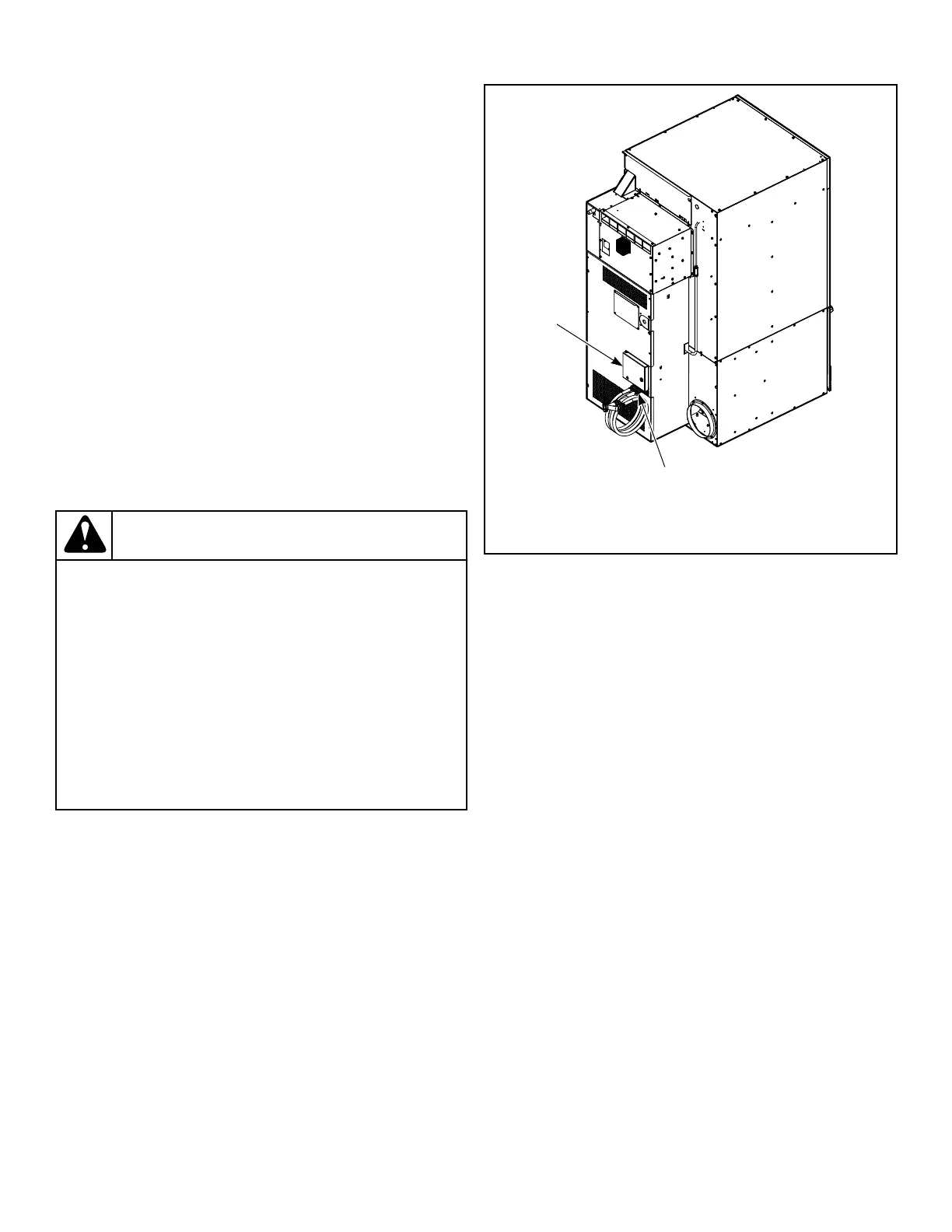

1. Fire Suppression System Control Box
2. Water Solenoid Valve
Figure 5
Two hoses and a Y-connector are provided with the tumble dryer
to allow for connection of water supply to tumble dryer. DO NOT
reuse old hose sets.The water connections are made to the water
solenoid valve, located on the rear of the tumble dryer. The Y-
connector provides a single female hose connection (Standard US
3/4-11 1/2 NH thread). Refer to Figure 5 and Figure 6 .
To connect the two hoses (supplied with tumble dryer), insert
rubber washers (from literature pack) in water inlet hose cou-
plings. Refer to Figure 6 .
Installation
©
Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
34 Part No. 70686701ENR4
