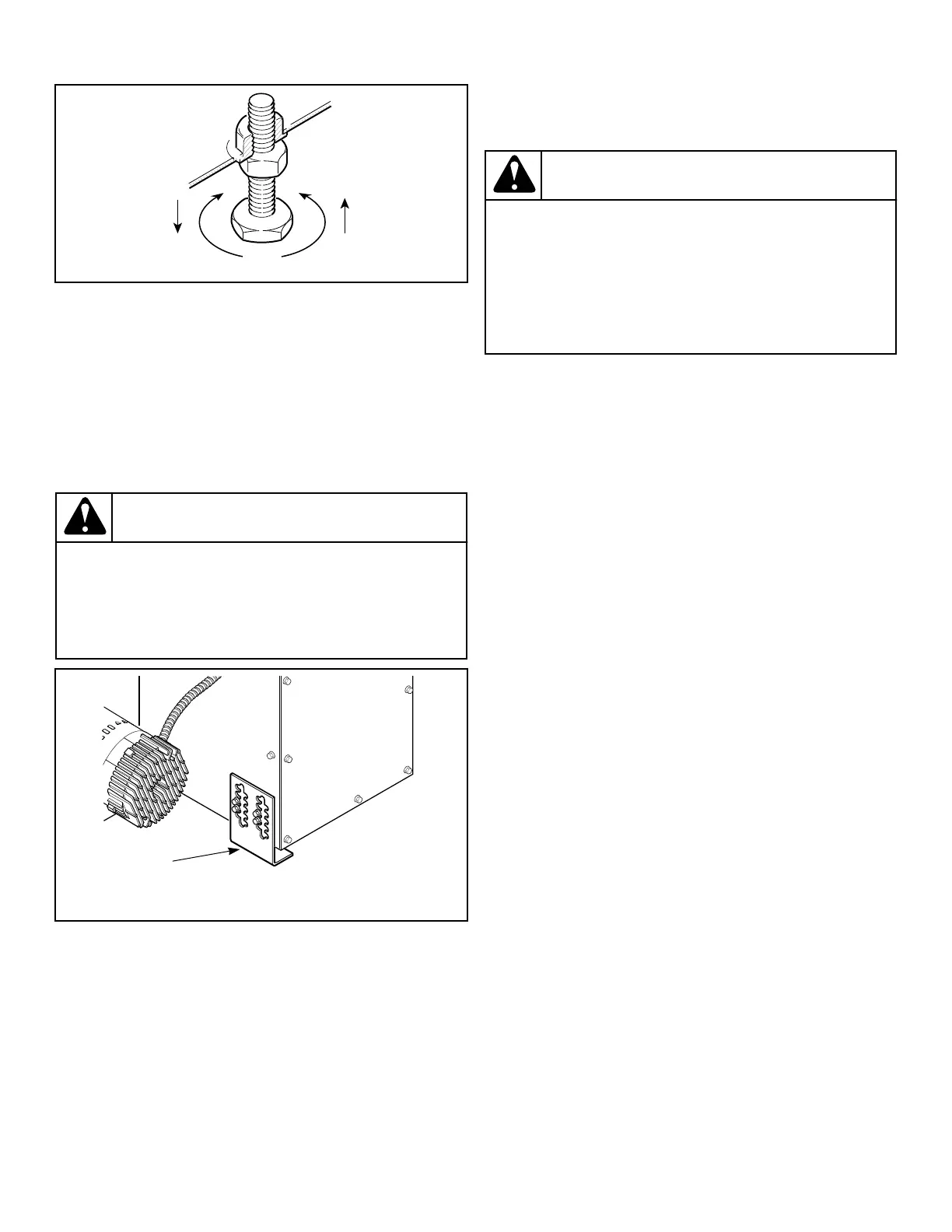

Figure 3
Fifth Leveling Leg
The stacked tumble dryer has a fifth leveling leg which is shipped
in the up position. The fifth leveling leg MUST BE installed
properly on the lower left side of the blower housing to stabilize
the tumble dryer. Refer to Figure 4 .
After leveling with the four cabinet leveling legs, lower the fifth
leveling leg so it contacts the floor, and then secure the screws.
CAUTION
The stacked tumble dryer has a 5th leveling leg on
the blower housing. It is very important to properly
adjust this leg. Unit is back heavy and could rock or
tip.
W250R1
1. Fifth Leg
Figure 4
Fire Suppression System (Optional
Equipment)
WARNING
ELECTRICAL SHOCK HAZARD. Electrical shock can
result in death or serious injury. If the water dispens-
ing system is activated, do not attempt to operate
the tumble dryer. If the water dispensing system is
activated, have the tumble dryer inspected by a
qualified agency before operating the tumble dryer.
W879R1
IMPORTANT: Main supplies of electricity and water to
the tumble dryer should remain on at all times for the
fire suppression system to work.
Check Local Codes and Permits
Call your local water company or the proper municipal authority
for information regarding local codes.
IMPORTANT: It is your responsibility to have ALL
plumbing connections made by a qualified professio-
nal to assure that the plumbing is adequate and con-
forms to local, state, and federal regulations or codes.
IMPORTANT: It is the installation or owner’s responsi-
bility to confirm that the necessary or required water,
water pressure, pipe size, or connections are provided.
Manufacturer assumes no responsibility if the fire sup-
pression system is not connected, installed, or main-
tained properly.
Water Requirements
IMPORTANT: Water must be supplied to the fire sup-
pression system, or the fire suppression system will
not operate as intended.
To ensure the fire suppression system operates properly:
• Water supply requirements: 3/4 inch hose connections provid-
ing 15 gpm [57 lpm] minimum flow; Water pressure 20 psi
[138 kPa] minimum, 120 psi [827 kPa] maximum; water
temperature 40°F [4.5°C] minimum, 120°F [49°C] maximum
must be maintained at all times.
• Electric power to the tumble dryer must be provided at all
times.
• Perform preventative maintenance checks every month. Refer
to Operation/Maintenance Manual.
NOTE: Water pressure under 20 psi [138 kPa] will
cause low flow at water solenoid valve.
If the rear of the tumble dryer or the water supply is located in an
area where it will be exposed to cold/freezing temperatures, pro-
visions must be made to protect these water lines from freezing.
Installation
©
