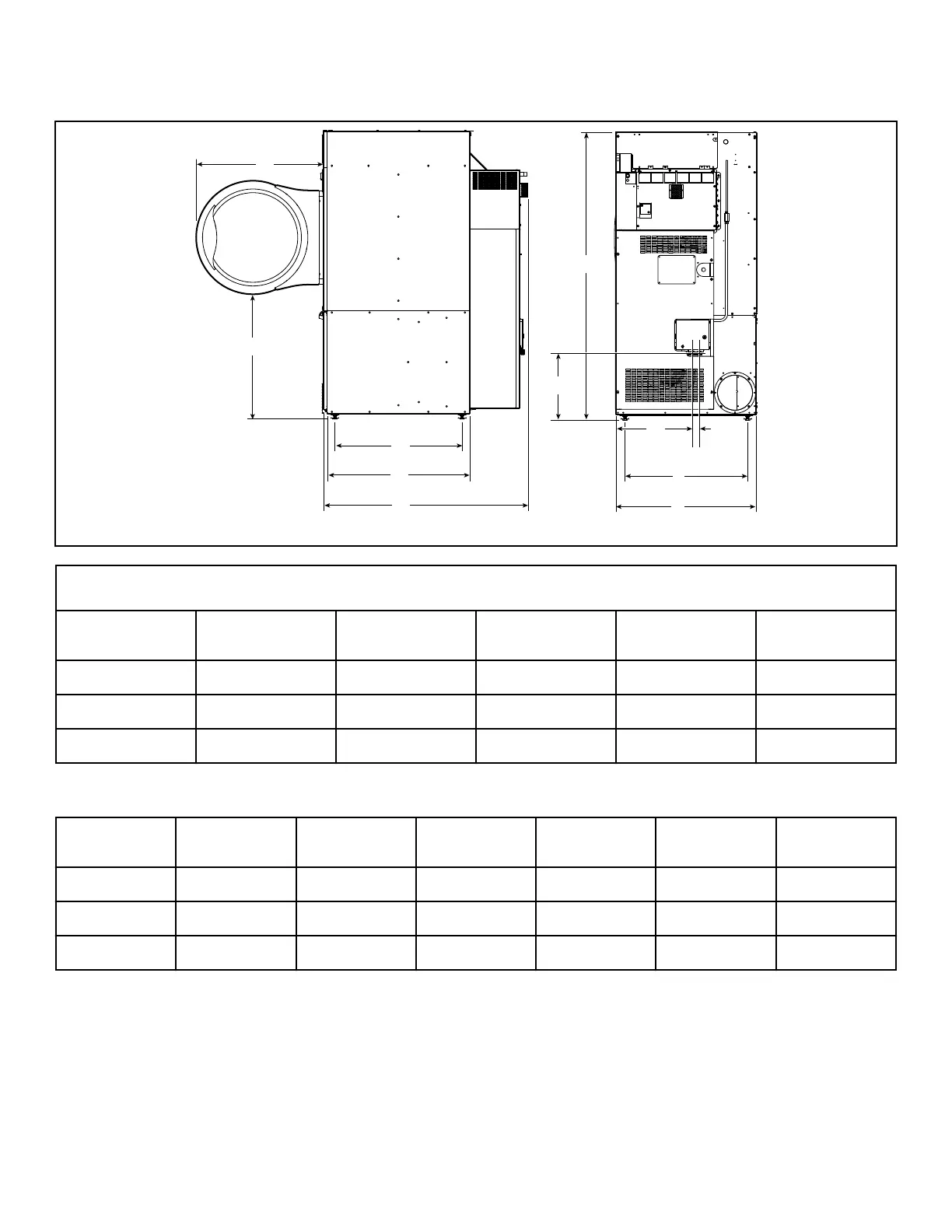

Cabinet Dimensions – 030, 035 and 055 Series
Machine Dimensions, in. [mm]
Models A B C D E
030 Series 26.3 [670] 27.5 [700] 28.4 [720] 31.8 [810] 45.5 [1,155]
035 Series 28.0 [710] 27.5 [700] 28.4 [720] 31.8 [810] 45.5 [1,155]
055 Series 31.9 [810] 26.3 [670] 33.4 [850] 36.8 [935] 53.1 [1,350]
Table 3
Models F G* H* I* J K
030 Series 63.9 [1,625] 14.6 [370] 16.0 [405] 1.5 [40] 24.6 [625] 27.9 [710]
035 Series 63.9 [1,625] 14.6 [370] 17.1 [435] 1.5 [40] 27.4 [695] 31.5 [800]
055 Series 66.7 [1,700] 15.6 [395] 20.0 [510] 1.5 [40] 30.5 [775] 34.5 [875]
* Fire suppression system optional - may not be on machine.
NOTE: Facia panels available to increase height of
models to 72.25 inches [1,840 mm] and 76.25 inches
[1,940 mm] .
Specifications and Dimensions
©
Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
22 Part No. 70686701ENR4
