Appendix

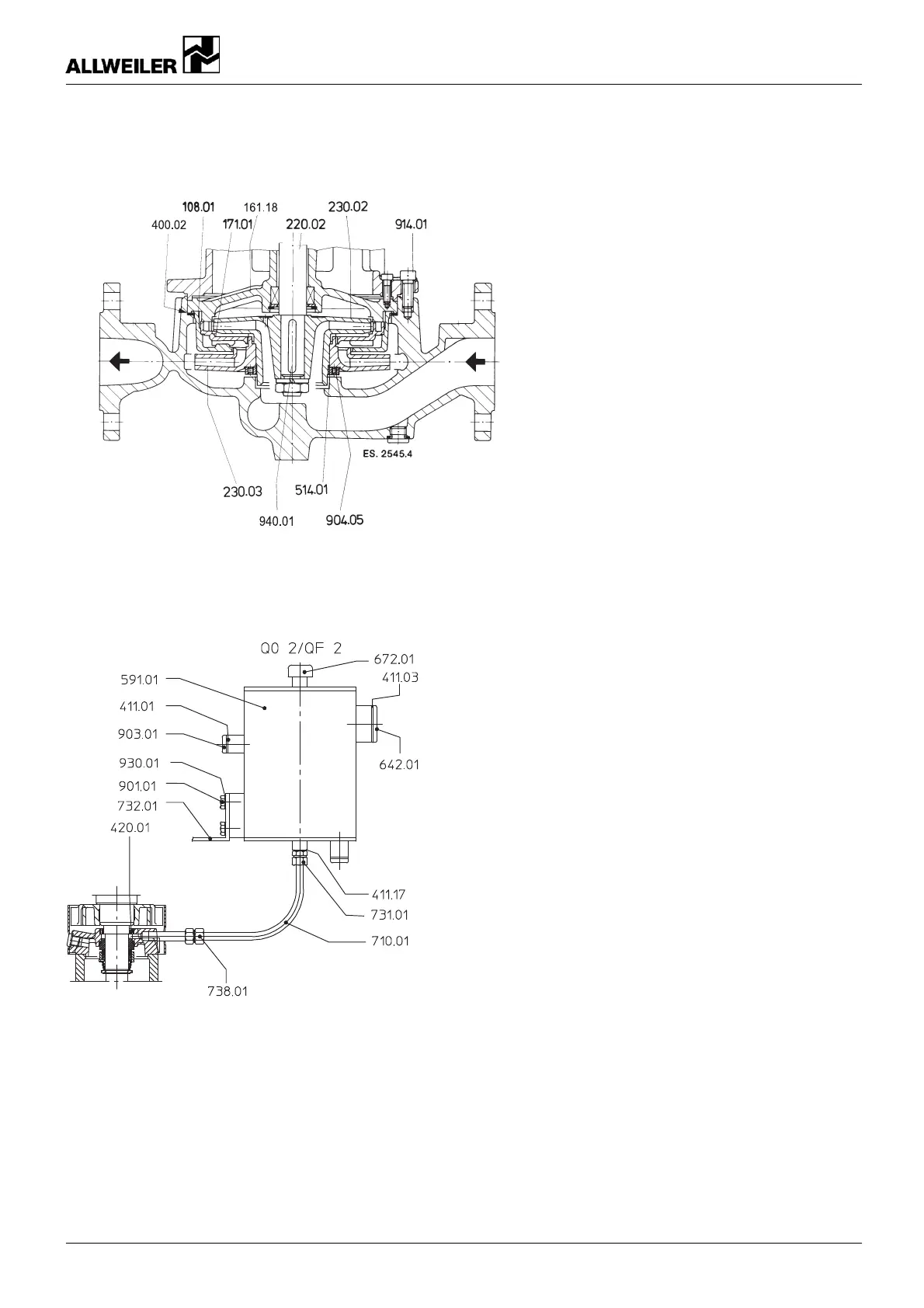

Fig. 20 Two-stage si z es, no n-cooled, unbalanced mechanical seal U5A, with safety stufﬁng box

Fig. 21 Quenching seal housing

160-282/0 – 550 154 BA-2017.03 en-US NIT series 35
