Figure 6-30 SOPC Builder
Figure 6-31 shows the connections for programmable 10/100Mbps Ethernet operation via MII.

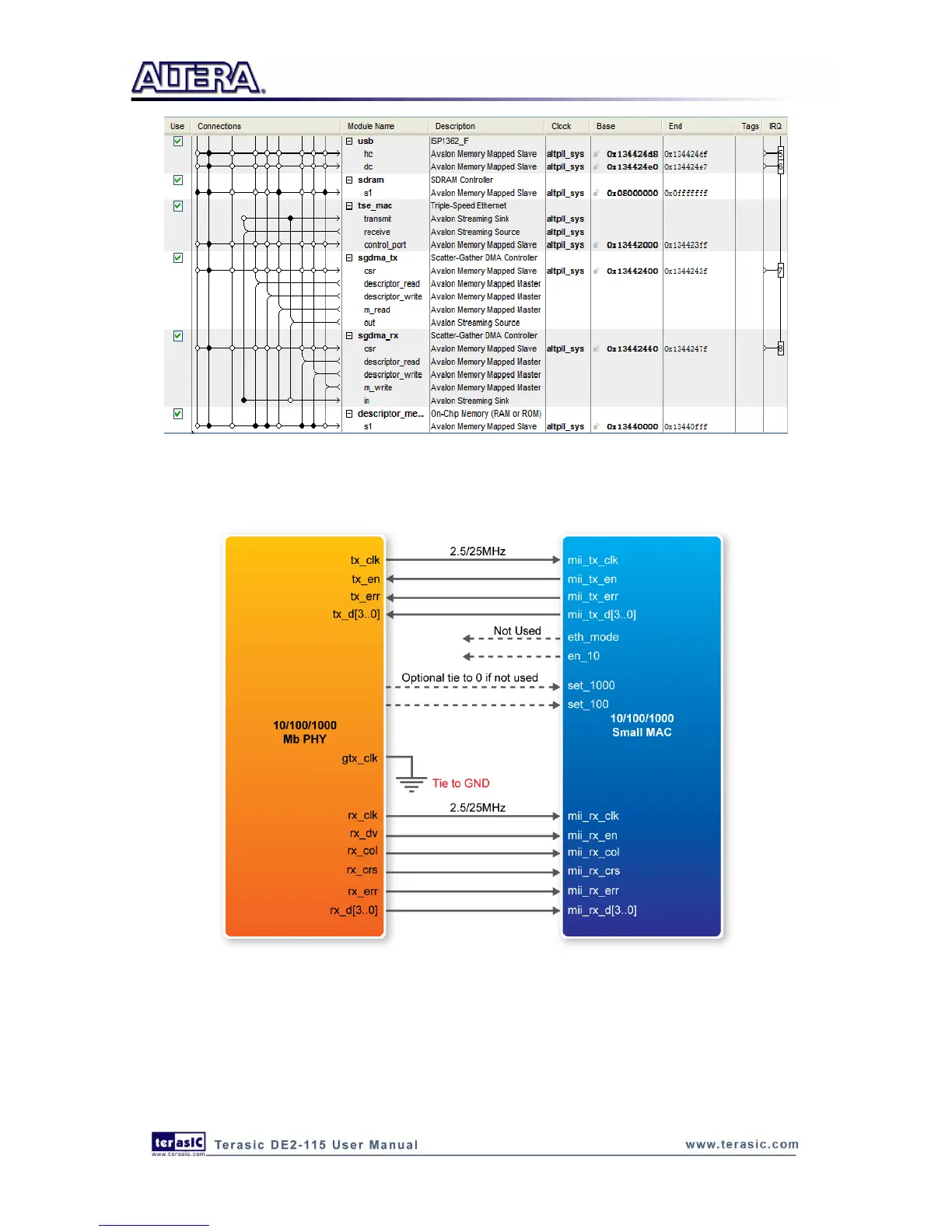

Figure 6-31 PHY connected to the MAC via MII
Figure 6-32 shows the connections for programmable 10/100/1000Mbps Ethernet operation via
RGMII.
