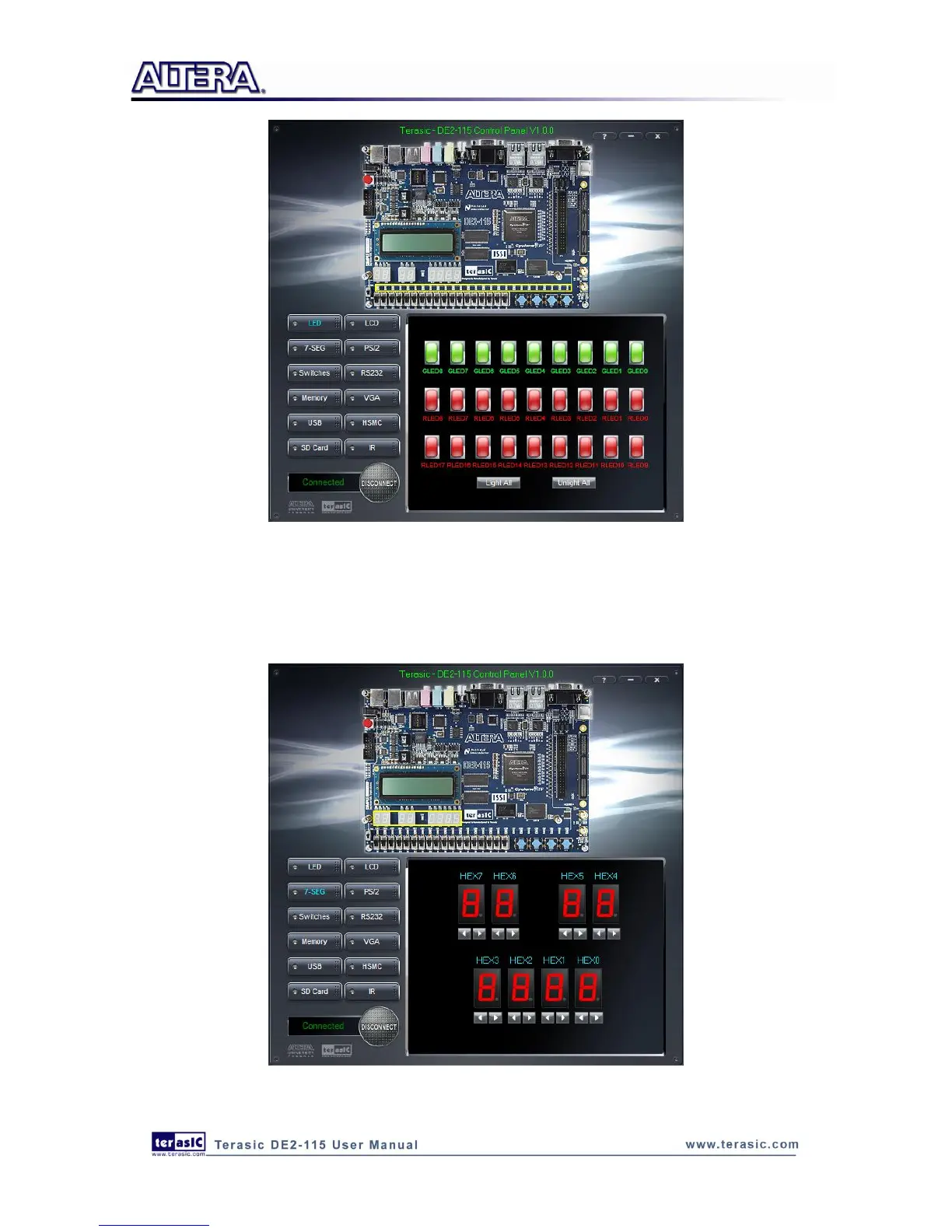

Figure 3-3 Controlling LEDs
Choosing the 7-SEG tab leads to the window shown in Figure 3-4. From the window, directly use
the left-right arrows to control the 7-SEG patterns on the DE2-115 board which are updated
immediately. Note that the dots of the 7-SEGs are not enabled on DE2-115 board.
Figure 3-4 Controlling 7-SEG display
