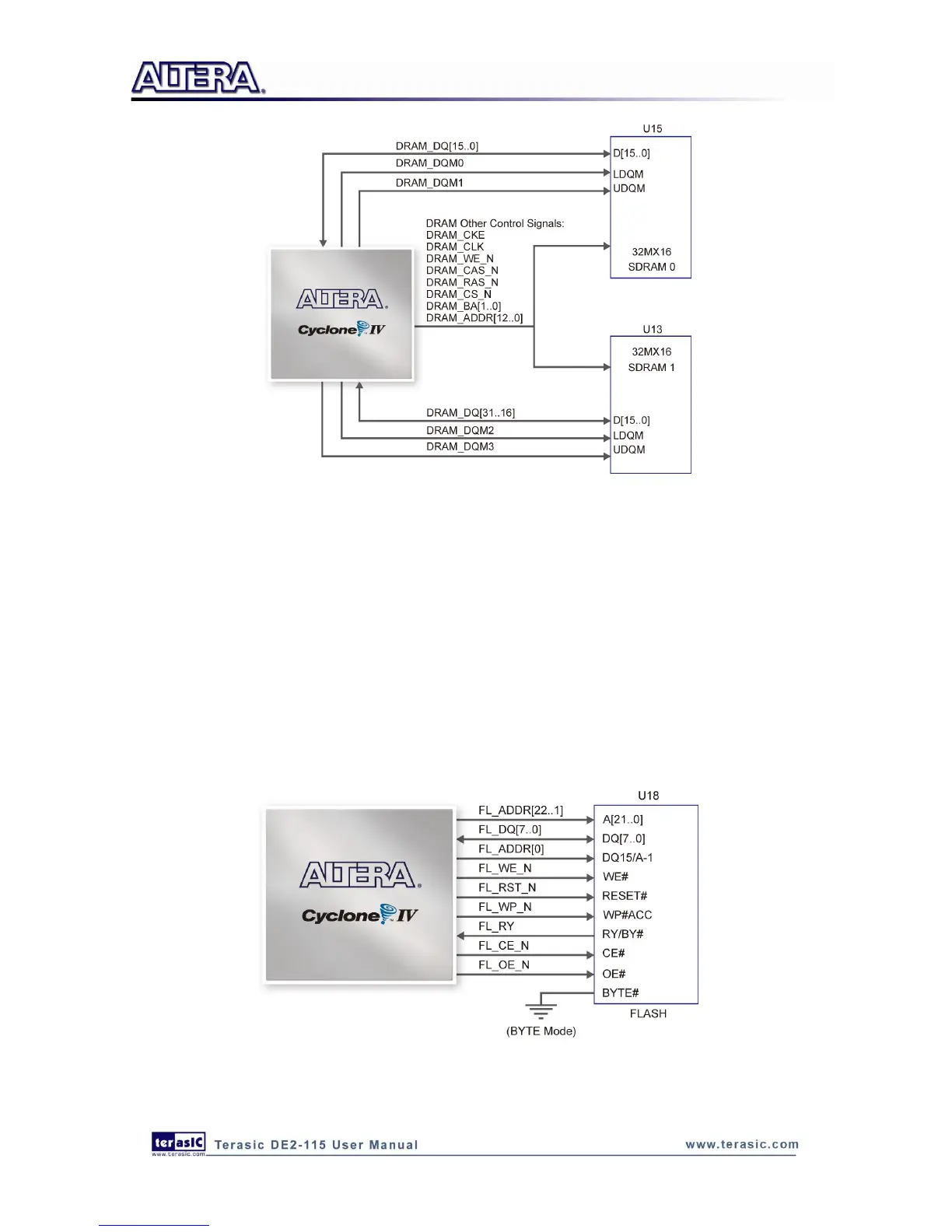

Figure 4-34 Connections between FPGA and SDRAM
FLASH
The board is assembled with 8MB of flash memory using an 8-bit data bus. The device uses 3.3V
CMOS signaling standard. Because of its non-volatile property, it is usually used for storing
software binaries, images, sounds or other media. Connections between FPGA and Flash are shown
in Figure 4-35.
Figure 4-35 Connections between FPGA and Flash
