Altera DE2-115 - System Configuration Options

72

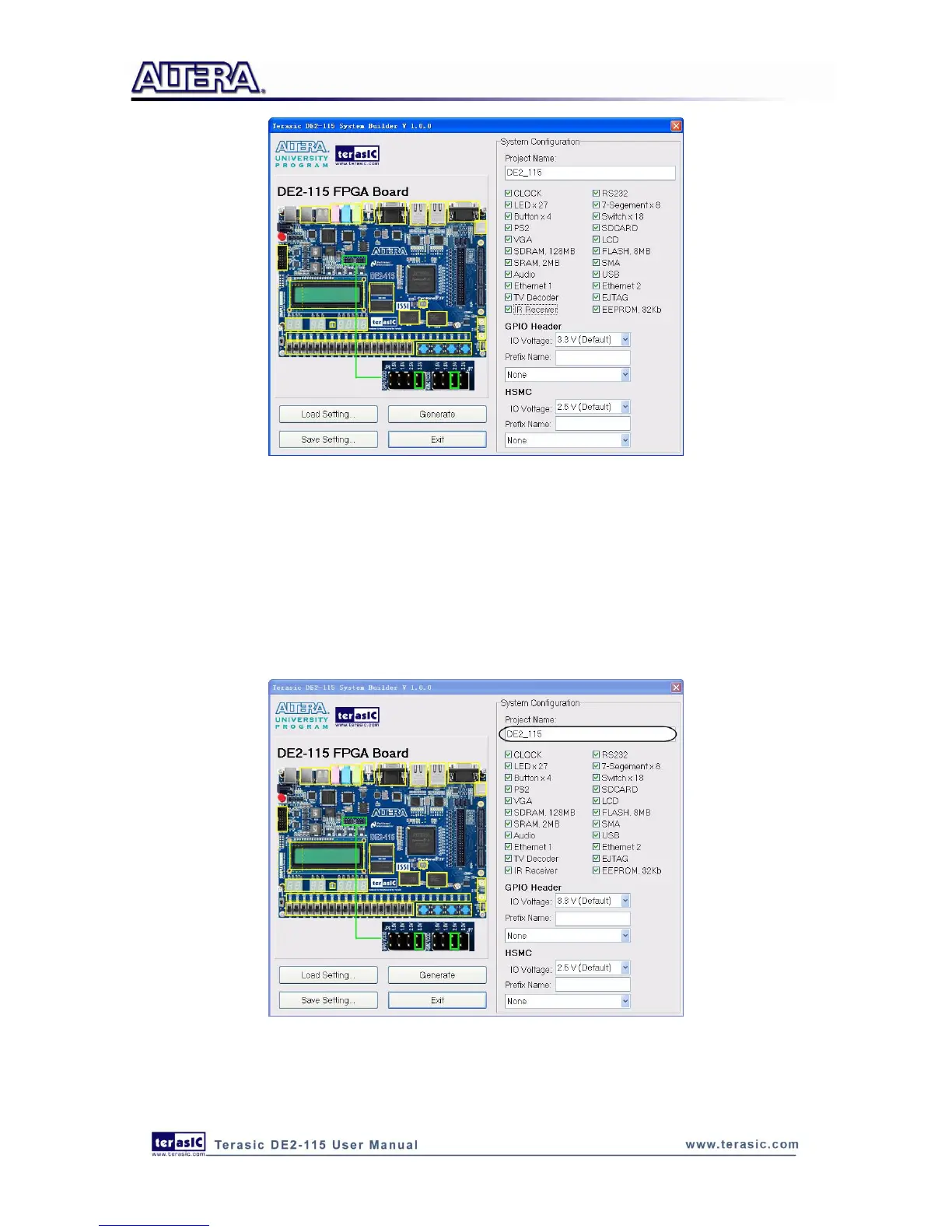

Figure 5-2 The DE2-115 System Builder window
 Input Project Name
Input project name as show in Figure 5-3.
Project Name: Type in an appropriate name here, it will automatically be assigned as the name of
your top-level design entity.
Figure 5-3 The DE2-115 Board Type and Project Name
