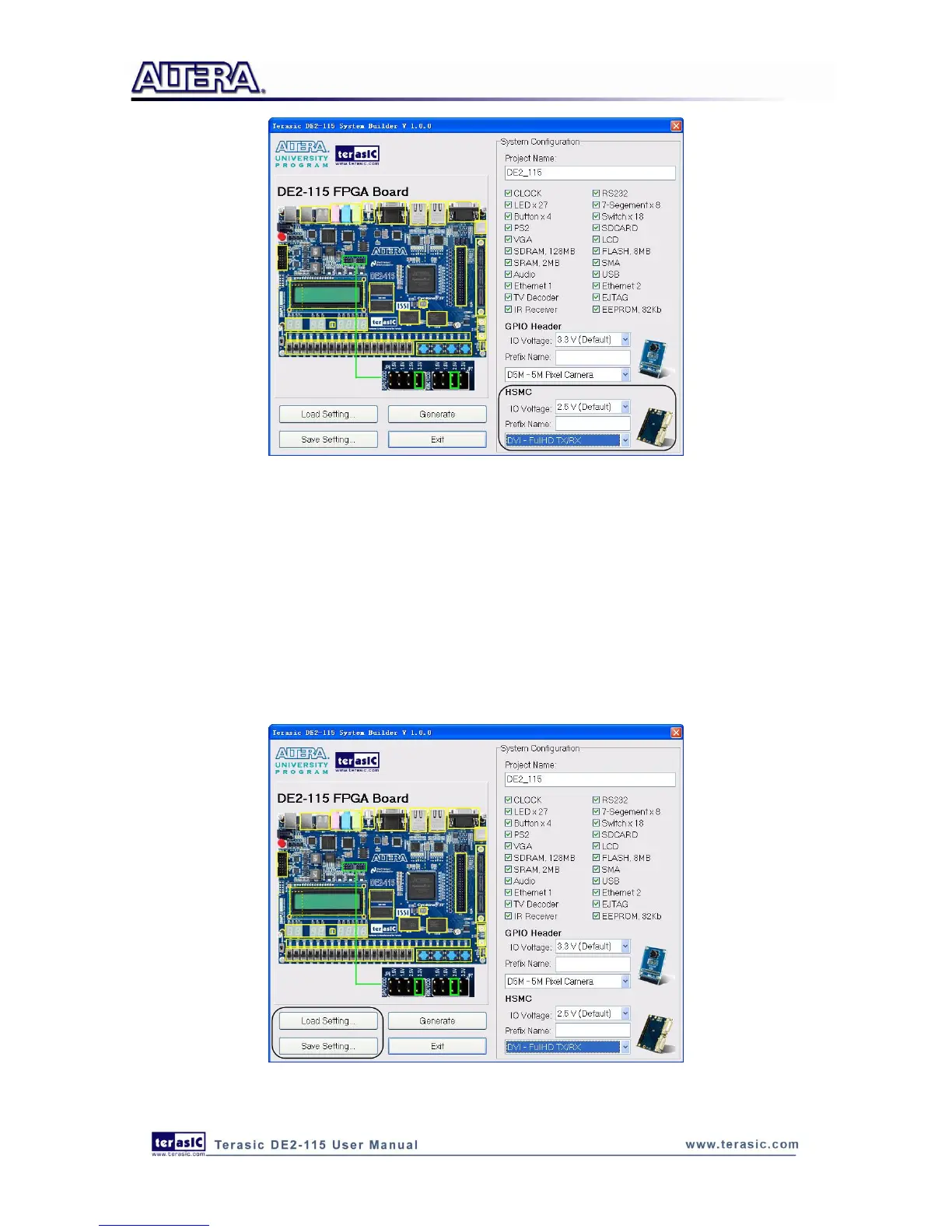

Figure 5-6 HSMC Expansion Group
The “Prefix Name” is an optional feature that denotes the pin name of the daughter card assigned in
your design. Users may leave this field empty.
Project Setting Management
The DE2-115 System Builder also provides functions to restore default setting, loading a setting,
and saving users‟ board configuration file shown in Figure 5-7. Users can save the current board
configuration information into a .cfg file and load it to the DE2-115 System Builder.
Figure 5-7 Project Settings
