Alto-Shaam AR-7T

22 MN-39404 • Rev 0 • 05/18 • AR-7T Series Electric Rotisserie Manual

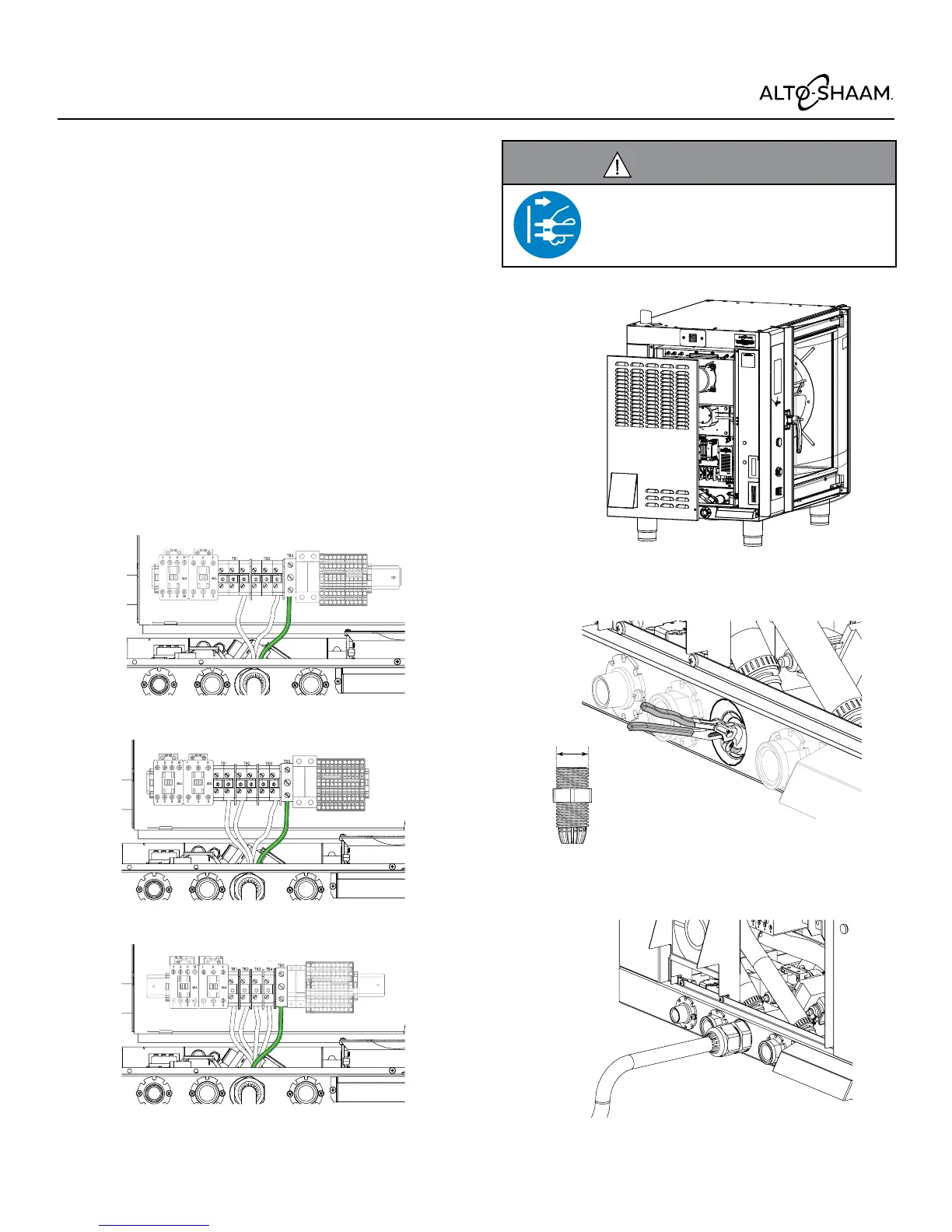

Wiring
How to connect the wiring
1. Remove the le side service panel (1).
2. Measure the diameter of the cord grip (2).
Remove the knock out (3) from the connection panel.
3. Install the cord (4) through the cord grip (5) and install
to the oven.
4. Connect the supply cord to the appropriate terminals (6)
(L1, L2, L3, N, etc.) in accordance with local codes and
regulations.
5. Install the ground wire.
9. Adjust the cord length. Tighten the cord grip sealing nut
onto the supply cord.
10. Re-install the le side panel.
6
3
2
1
4
5
L1 L2
208-240V 1Ph
L3L1 L2
208-240V 3Ph
L1 NL3
L2
L
N
L
L
380-415V 3Ph
WARNING
To prevent serious injury, death, or property
damage, always disconnect the appliance
from the power source before cleaning
orservicing.
