Grease Collection
How to Hook Up the Grease Collection
NOTICE: The grease collection valve requires 6" (152mm) of
vertical clearance. For countertop installations, the
legs should be set to a height of 6" (152mm).
The handle of the grease collection valve must be
parallel to the side of the rotisserie. Use enough
Teon® tape for a tight seal at the correct angle.

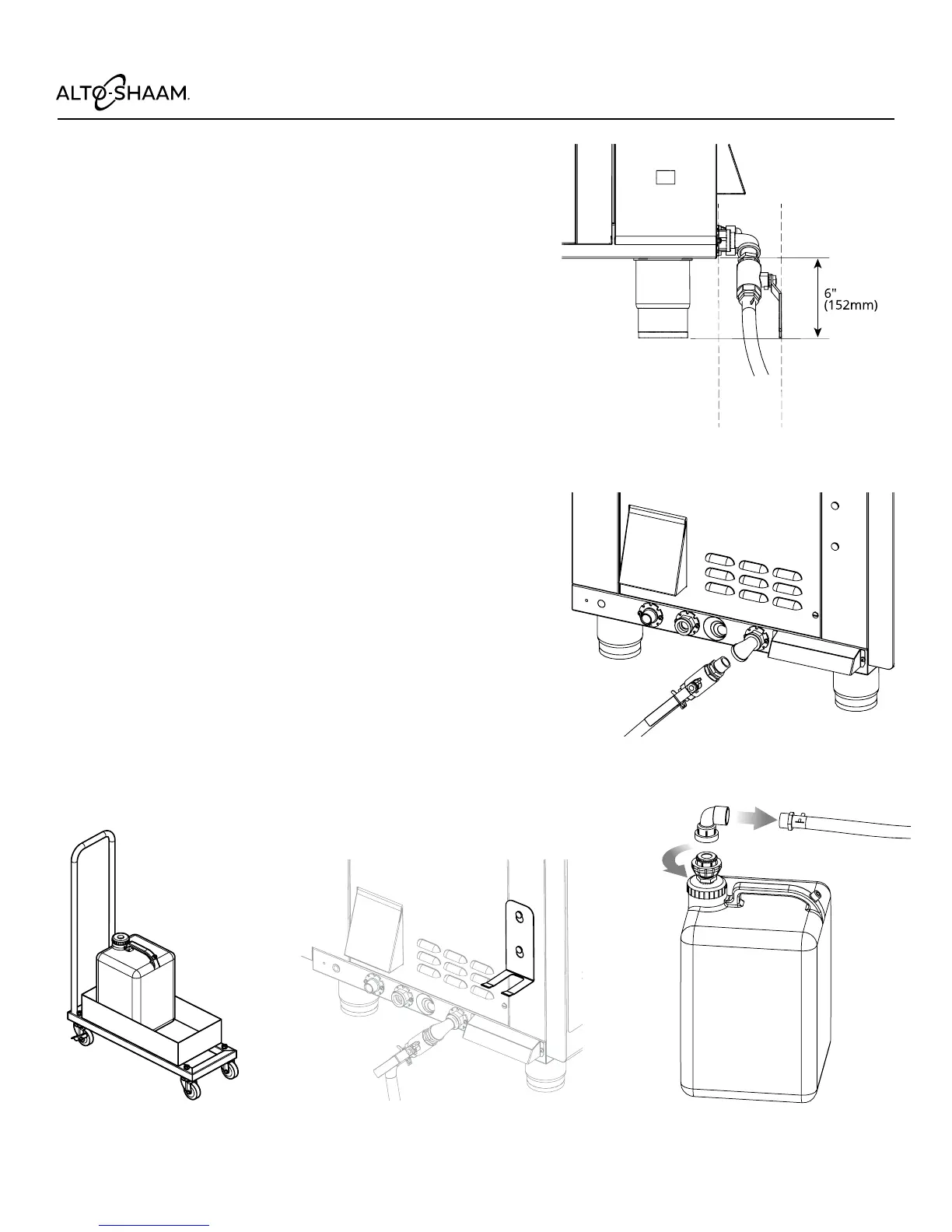

1. The grease collection valve and hose are pre-assembled.
The grease collection container and ttings are also
pre-assembled. Unpack both assemblies.
2. Apply Teon tape to the ttings on the grease collection
hose (4) and valve (1).
3. Insert the valve into the elbow (2) as shown. Turn until tight.
Make sure the valve handle is parallel to the side of the
rotisserie.
4. Loosen the radial nut on the grease collection container
union (3). Insert the taped tting on the grease collection
hose (4) into the union tting and turn until tight.
5. Tighten the radial nut on the grease collection container.
6. Place the hose holder bracket (5), if supplied, onto the pins
on the side of the rotisserie.
7. Place the grease collection container in an easily-accessed
location. If you have purchased a Mobile Grease Collection
Cart(6), roll it into place next to the oven and apply the
caster brake.
6
3
4
2
1
6" (152mm)
90°
90°
5
