140 • MN-35949 • Rev 04 • 06/16 • Combitherm® CT PROformance™ Series • Technical Service Manual
77529 used on units previous to 8-1-15
 


  





 

77529
CONTROL BOARD
MVQ
05/18/12 1 OF 42
5015382-7W
# WI-STOCK T-CONN. FROM T-LOC TO T-LOC L-CONN.
14
WI-33478 CR-34783 CB-X11
1
S7-DOOR SW CR-34639
15 WI-33478 CR-34783 CB-X11
2
S7-DOOR SW CR-34639
16 WI-33777 CR-34783 CB-X10 9 H2O-PSW SW CR-33509
17 WI-33777 CR-34783 CB-X10 10
H2O-PSW-GND SW CR-33509
76 NONE CR-36843 CBX08 4 IN-LINE-FUSE 2 CR-34639
24 WI-36210 CR-33509
IN-LINE-FUSE 1 HINGE-RED +12VDC CR-36215
25 WI-36211 CR-34783 CB-X08 3
HINGE-BLK
12VDC_GND
CR-36215
26 WI-33777 CR-34783 CB-X07 4
PS1
12VDC_GND
CR-34783
27
WI-33478 CR-34783 CB-X07
1
PS1 +12VDC CR-34783
34 WI-33478 CR-34783 CB-X06
1
TB42
8
CR-34783
38 WI-36211 CR-34783 TB46
4
CAVITY-LED-BLK
12VDC_GND
CR-36216
39 WI-33478 CR-34783 TB42 3 CB-X05 1 CR-34783
40 WI-33777 CR-34783 CB-X03 6 TB27 20 CR-34783
41
WI-33777 CR-34783 CB-X03 5
Y4 A2
CR-33509
42
WI-33478 CR-34783 CB-X03 3
Y4 A1
CR-33509
45 WI-33478 CR-34783 CB-X03 1 TB35 8 CR-34783
46 WI-33478 CR-34783 CB-X04 4 TB35 12 CR-34783
64 WI-33478 CR-34783 CB-X01 1 TB35 2 CR-34783
65 WI-33776 CR-34783 CB-X13 3 TB51
4
CR-34783
5015381-4W
# WI-STOCK T-CONN. FROM TERM LOC TO TERM LOC L-CONN.
11
WI-33478 CR-34783 CB-X11
7 B2
BOILER CR-34783
10 WI-33777 CR-34783 CB-X11 6 B1 BOILER CR-34783
43 WI-33777 CR-34783 CB-X03 4 PMP2 A2 CR-33509
44 WI-33478 CR-34783 CB-X03 2 PMP2 A1 CR-33509
63 WI-33478 CR-34783 CB-X01
2 K1 A1
CR-3593
5015380-5W
# WI-STOCK T-CONN. FROM TERM LOC TO TERM LOC L-CONN.
52 WI-33478 CR-34783 CB-X02 5 TB35 6 CR-34783
66 WI-33478 CR-34783 CB-X07 2 IB-X07 1 CR-34783
67 WI-33777 CR-34783 CB-X07 3 IB-X07 3 CR-34783
5015379-4W
# WI-STOCK T-CONN. FROM TERM LOC TO TERM LOC L-CONN.
62 WI-33478 CR-34783 CB-X01
2
K51
A1
CR-34783
65 WI-33478 CR-34783 CB-X01 3 K51 21 CR-34783
12 WI-33478 CR-34783 CB-X11 3 MOTOR HL CR-33509
13 WI-33478 CR-34783 CB-X11 4 MOTOR HL CR-33509
5015357-3W
# WI-STOCK T-CONN. FROM T-LOC TO T-LOC L-CONN.
52 WI-33478 CR-34783 CB-X02 5 TB35 6 CR-34783
55 WI-33478 CR-34783 CB-X02
2 K44 A1
CR-3593
59 WI-33478 CR-34783 CB-X01 6 TB35 4 CR-34783
57 WI-33478 CR-34783 CB-X01 8 K41 A1 CR-3593
66 WI-33478 CR-34783 CB-X07 2 IB-X07 1 CR-34783
67 WI-33777 CR-34783 CB-X07 3 IB-X07
4
CR-34783
5016629-5W
# WI-STOCK T-CONN. FROM T-LOC TO T-LOC L-CONN.
69 WI-33478 CR-34783 CB-X05 2 TB39 1 CR-34783
70 WI-33478 CR-3593 RLY50
14
TB39 3 CR-34783
71
WI-33777 CR-3593 RLY50 13 TB46
7
CR-34783
74 WI-36210 CR-34783 F18 1
CAVITY-LED-W
HT-CLEAR +12VDC
CR-36216
75 WI-33478 CR-34783 TB39 2 F18 2 CR-34783
5016795-4W
# WI-STOCK T-CONN. FROM TERM LOC TO TERM LOC L-CONN.
28 WI-33477 CR-34783 CB-X06 7 VM-LWR SW CR-35783
29 WI-33477 CR-34783 CB-X06 6 VM-LWR SW CR-35783
30 WI-33477 CR-34783 CB-X06 5 VM-UPPR SW CR-35783
31 WI-33477 CR-34783 CB-X06 4 VM-UPPR SW CR-35783
32 WI-33478 CR-34783 CB-X06 3 VM-LWR LWR CR-35783
33 WI-33478 CR-34783 CB-X06 2 VM-UPPR UPPR CR-35783
35 WI-33777 CR-35783 VM-LWR
12VDC_GND
TB46 2 CR-34783
36 WI-33777 CR-35783 VM-UPPR
12VDC_GND
TB46 3 CR-34783
5016783- 4W
# WI-STOCK T-CONN. FROM T-LOC TO T-LOC L-CONN.
74 WI-36210 CR-34783 F18 1 CAVITY-LED-HINGE-CLEAR 12VDC CR-36216
37 WI-33478 CR-34783 CB-X05 2 TB39 1 CR-34783
75 WI-33478 CR-34783 TB39 2 F18 2 CR-34783
12Vdc
M
12Vdc
M



  







   

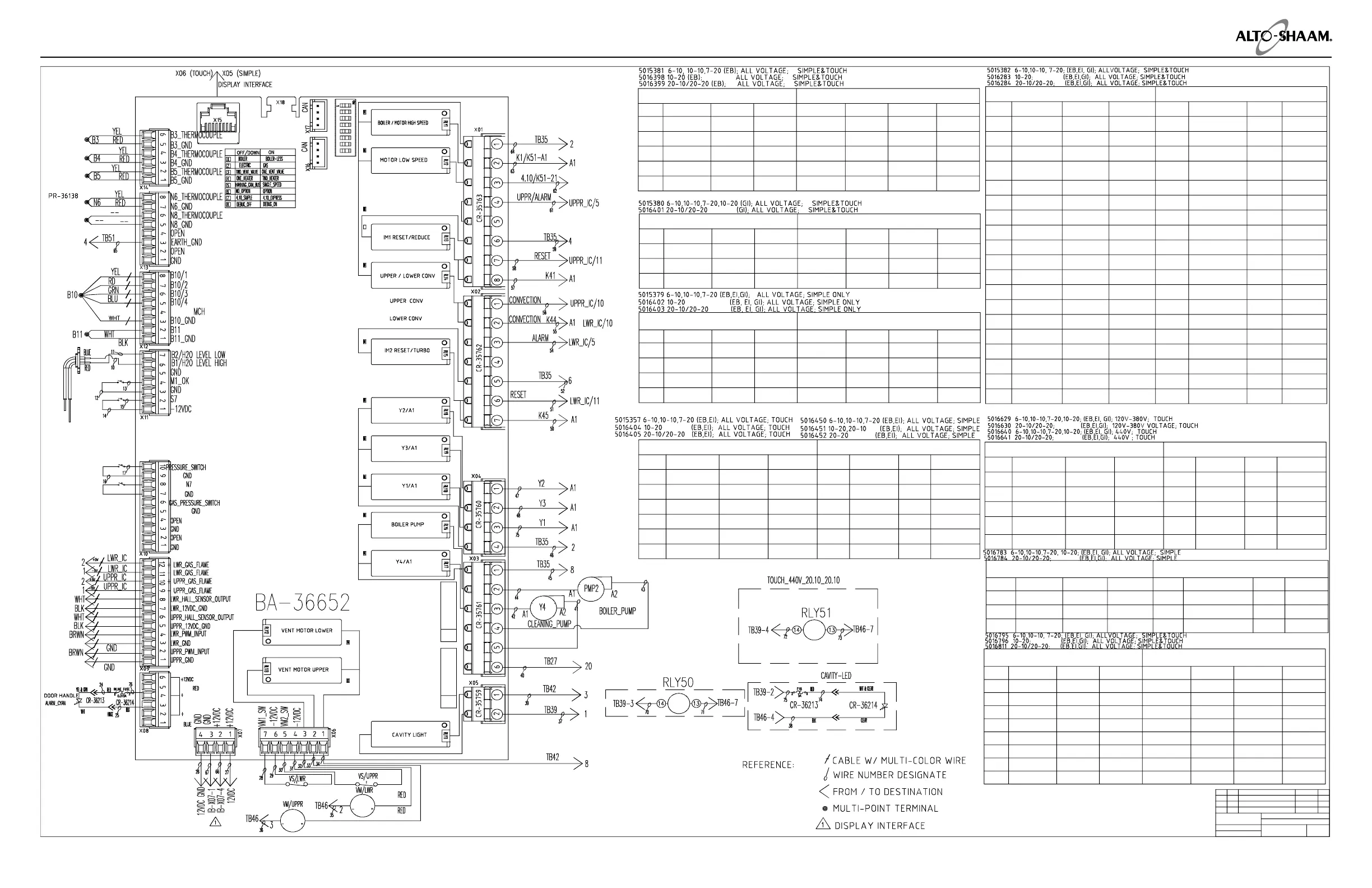

Wiring Diagram 77529
Control Board
