77623 used on units aer 7-31-15

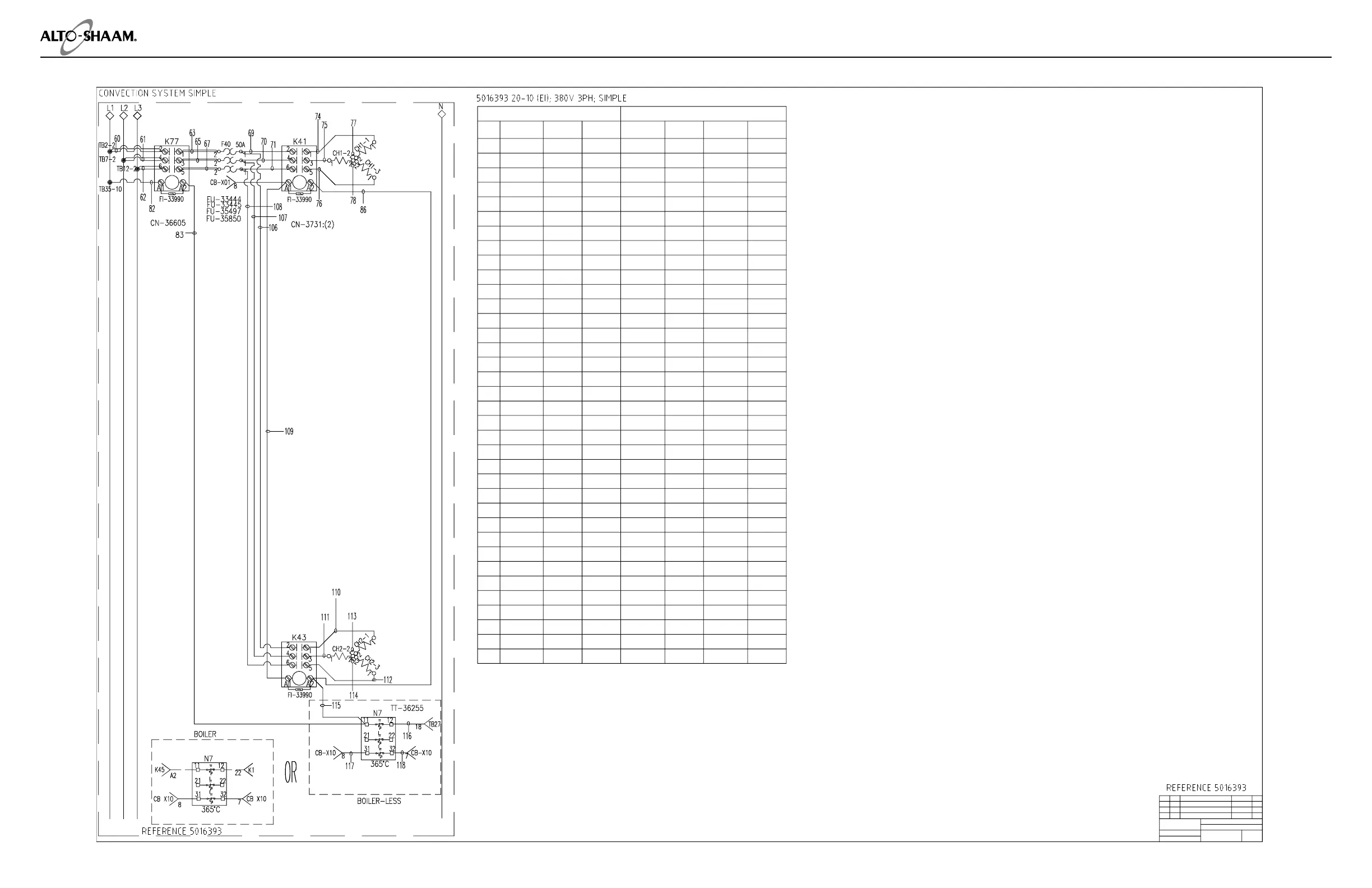

Wiring Diagram 77623
77623
20.10 3Ph 380V 50Hz CONVECTION SIMPLE
AFT
380-415V, 3PH
20-10 (18.9KW (X2))
5016393-W
# WI-STOCK T-CONN. FROM TERM LOC TO TERM LOC L-CONN.
60 WI-3816 CR-34781 TB2 2 K77 2 CR-34781
60 WI-3816 CR-34781
TB2 2 K77 2
CR-34781
61 WI-3816 CR-34781 TB7 2 K77 4 CR-34781
61 WI-3816 CR-34781 TB7 2 K77 4 CR-34781
62 WI-3816 CR-34781 TB12 2 K77 6 CR-34781
62 WI-3816 CR-34781
TB12 2 K77
6 CR-34781
63 WI-3816 CR-34775 F40
2
K77
1
CR-34781
63 WI-3816 CR-34775 F40 2 K77 1 CR-34781
65 WI-3816 CR-34775 F41 2 K77 3 CR-34781
65 WI-3816 CR-34775 F41 2 K77 3 CR-34781
67 WI-3816 CR-34775
F42 2 K77
5 CR-34781
67 WI-3816 CR-34775 F42 2 K77 5 CR-34781
69 WI-3816 CR-34775 F40 1 K41 2 CR-34781
70 WI-3816 CR-34775 F41 1 K41 4 CR-34781
71
WI-3816 CR-34775
F42 1 K41
6 CR-34781
74 WI-3816 CR-34781 K41
1
CH1
1-1
CR-38575
75 WI-3816 CR-34781 K41 3 CH1 2-1 CR-38575
76 WI-3816 CR-38575 K41 5 CH1 3-1 CR-38575
77 WI-3816 CR-38575 CH1 1-2 CH1 2-2 CR-38575
78 WI-3816 CR-38575 CH1 3-2 CH1
2-2
CR-38575
82 WI-33478 CR-34783 TB35 10 K77 A1 CR-38389
83 WI-33777 CR-38389 K77 A2 N7 11 CR-33509
86 WI-33777 CR-38389 K41 A2 K43 A2 CR-38389
106 WI-3816 CR-34775 F40
1
K43
2
CR-34781
107 WI-3816 CR-34775 F41
1
K43 4 CR-34781
108 WI-3816 CR-34775 F42 1 K43 6 CR-34781
109 WI-33478 CR-38389 K41 A1 K43 A1 CR-38389
110 WI-3816 CR-34781 K43 1 CH2 1-1 CR-38575
111
WI-3816 CR-34781 K43 3 CH2
2-1
CR-38575
112 WI-3816 CR-38575 K43 5 CH2 3-1 CR-38575
113 WI-3816 CR-38575 CH2 1-2 CH2 2-2 CR-38575
114 WI-3816 CR-38575 CH2 3-2 CH2 2-2 CR-38575
115 WI-33777 CR-38389 K43
A2 N7 11
CR-34774
116 WI-33777 CR-34783 TB27 18 N7
12
CR-33509
117 WI-33777 CR-33509 N7 31 CB-X10 8 CR-34783
118 WI-33777 CR-33509 N7 32 CB-X10 7 CR-34783
Convection System: 20-10, 380V, 3PH Simple
