MN-35949 • Rev 04 • 06/16 • Combitherm® CT PROformance™ Series • Technical Service Manual • 115
77623 used on units aer 7-31-15

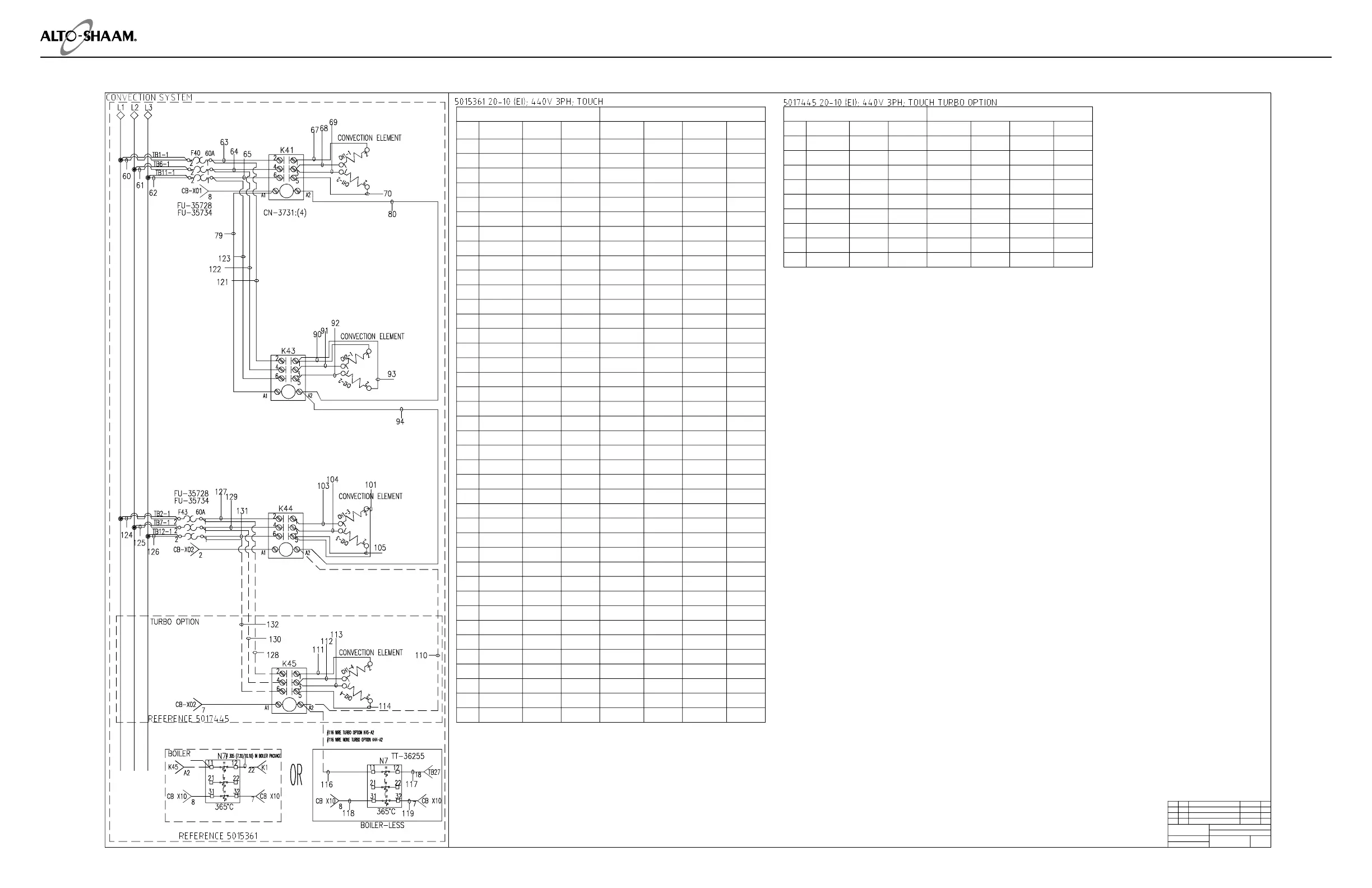

Wiring Diagram 77623
Convection System: 20-10, 440V, 3PH, Touch
 


  



 

 

77623
20.10 440V 3Ph 60Hz CONVECTION
AFT
07/27/15 20 OF 42
440-480V, 3PH
20-10 (18.9KW (X2))
5015361-W
#
WI-STOCK T-CONN. FROM TERM LOC TO TERM LOC L-CONN.
60 WI-3816 CR-34781 TB1 1 F40 2 CR-34781
60 WI-3816 CR-34781 TB1 1 F40 2 CR-34781
61 WI-3816 CR-34781 TB6 1 F41 2 CR-34781
61 WI-3816 CR-34781 TB6
1 F41 2
CR-34781
62 WI-3816 CR-34781 TB11
1
F42
2
CR-34781
62 WI-3816 CR-34781 TB11 1 F42 2 CR-34781
63 WI-3816 CR-34781 K41 2 F40 1 CR-34781
64 WI-3816 CR-34781 K41 4 F41 1 CR-34781
65 WI-3816 CR-34781
K41
6
F42 1
CR-34781
67 WI-3816 CR-34781 K41 1 CH1 1-2 CR-38575
68 WI-3816 CR-34781 K41 3 CH1 1-1 CR-38575
69 WI-3816 CR-34781 K41 3 CH1 2-1 CR-38575
70 WI-3816 CR-34781
K41
5
CH1 2-2
CR-38575
79 WI-33478 CR-38389 K41 A1 K43 A1 CR-38389
80 WI-33777 CR-38389 K41 A2 K43 A2 CR-38389
90 WI-3816 CR-34781 K43 1 CH2 1-2 CR-38575
91 WI-3816 CR-34781 K43 3 CH2 1-1 CR-38575
92 WI-3816 CR-34781 K43 5 CH2
2-1
CR-38575
93 WI-3816 CR-34781 K43 1 CH2 2-2 CR-38575
94 WI-33777 CR-38389 K44 A2 K43 A2 CR-38389
101 WI-3816 CR-34781 K44 5 CH1 3-2 CR-38575
103 WI-3816 CR-34781
K44 1 CH1
3-1 CR-38575
104 WI-3816 CR-34781 K44 3 CH2 3-1 CR-38575
105 WI-3816 CR-34781 K44 5 CH2 3-2 CR-38575
116 WI-33777 CR-38389 K44 A2 N7 11 CR-33509
117 WI-33777 CR-34783 TB27 18 N7 12 CR-33509
118 WI-33777 CR-33509
N7
31 CB-X10 8 CR-34783
119 WI-33777 CR-33509 N7 32 CB-X10 7 CR-34783
121 WI-3816 CR-34781 F40 1 K43 2 CR-34781
122 WI-3816 CR-34781 F41 1 K43 4 CR-34781
123 WI-3816 CR-34781
F42 1
K43 6 CR-34781
124 WI-3816 CR-34781 TB2
1
F43
2
CR-34781
124 WI-3816 CR-34781 TB2 1 F43 2 CR-34781
125 WI-3816 CR-34781 TB7 1 F44 2 CR-34781
125 WI-3816 CR-34781 TB7 1 F44 2 CR-34781
126 WI-3816 CR-34781
TB12 1
F45
2
CR-34781
126 WI-3816 CR-34781 TB12 1 F45 2 CR-34781
127 WI-3816 CR-34781 K44 2 F43 1 CR-34781
129 WI-3816 CR-34781 K44 4 F44 1 CR-34781
131 WI-3816 CR-34781
K44
6 F45
1
CR-34781
6.4KW
5017445-W
# WI-STOCK T-CONN. FROM TERM LOC TO TERM LOC L-CONN.
50 WI-33478 CR-34783 CB-X02 7 K45 A1 CR-38389
110 WI-33777 CR-38389 K44 A2 K45 A2 CR-38389
111
WI-3816 CR-34781 K45
1
CH1 4-2 CR-38575
112 WI-3816 CR-34781 K45 3 CH1 4-1 CR-38575
113 WI-3816 CR-34781 K45 3 CH2 4-1 CR-38575
114 WI-3816 CR-34781 K45 5 CH2 4-2 CR-38575
128 WI-3816 CR-34781 K45
2
F43
1
CR-34781
130 WI-3816 CR-34781 K45 4 F44 1 CR-34781
132 WI-3816 CR-34781 K45 6 F45 1 CR-34781
