Alto MPV-60 - Foot Brake; Parking Brake; Foot Pedal

1-12 American-Lincoln
MPV 60

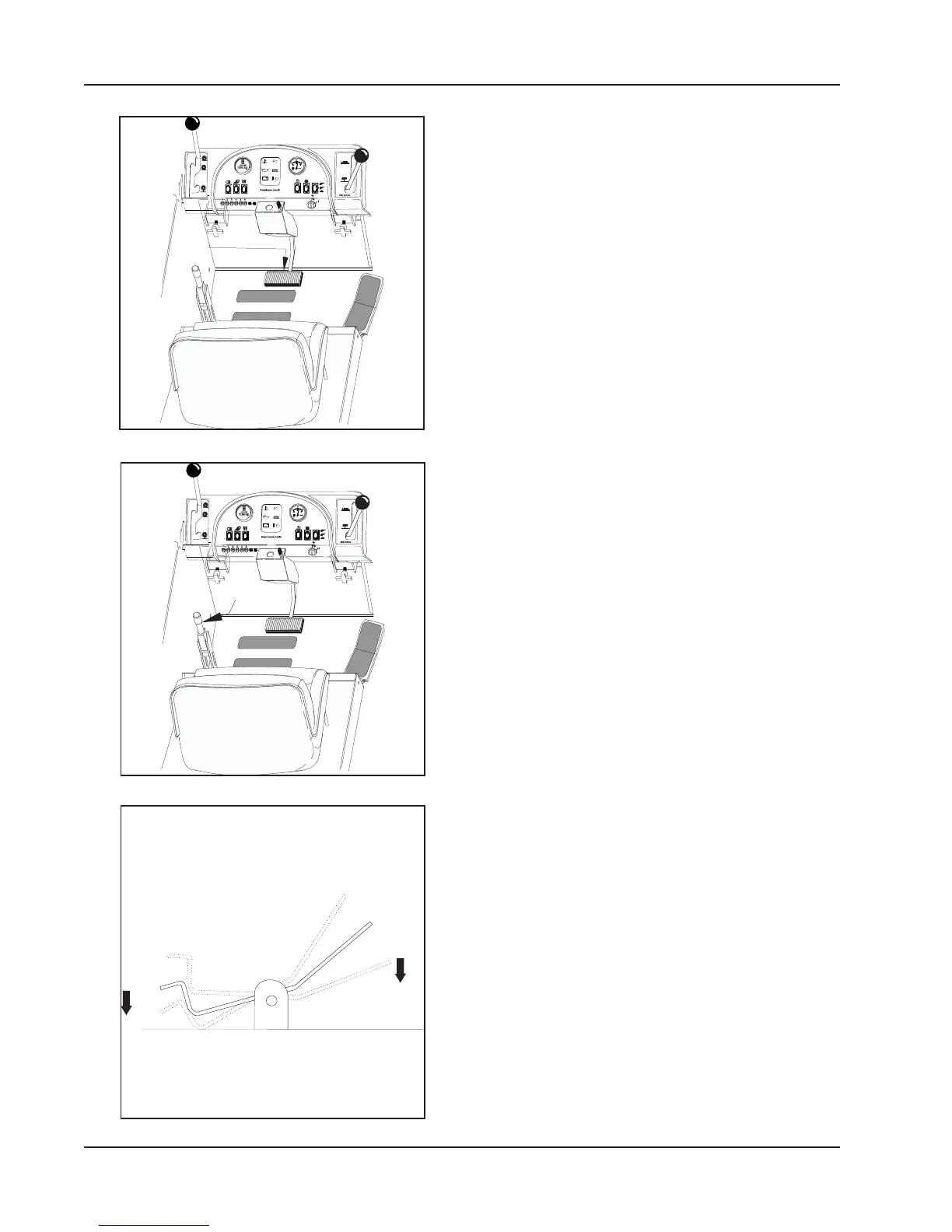

FOOT BRAKE (figure 6)
The foot brake pedal is located on the floor of the
operator’s compartment to the left of the foot pedal.
To stop, use the sweepers front wheel brakes, by putting
pressure on the brake pedal.
PARKING BRAKE (figure 7)
The parking brake lever is located on the operator’s
compartment left side panel near the floor. When engaged
the parking brake “locks” the foot pedal in the down
position.
-To engage the parking brake, place the lever in the upright
position.
-To disengage the parking brake, move the lever forward.
-To Adjust The Parking brake “Grab” Turn the knob on the
top of the lever.
-To increase “Grab” Turn the knob in a clockwise direction.
-To decrease “Grab” Turn the knob in a counterclockwise
direction.
FOOT PEDAL (figure 8)
The Foot Pedal is located on the floor of operator’s
compartment to the right of the brake pedal. The foot
pedal provides control of direction/speed and has an
automatic safety feature that limits foot pedal travel while
the hopper is raised. The pedal height is adjustable to
provide for operator comfort.
TO GO FORWARD: Place pressure on the upper portion
of the pedal. Speed increases when additional pressure is
placed on the pedal.
TO GO BACKWARD: Put pressure on the lower portion of
the pedal. Speed increases when additional pressure is
placed on the pedal.
TO STOP: allow the pedal to return to the centered
position.
To Increase braking action while sweeper is moving
forward, gently put pressure on the lower portion of the
pedal.
To Increase braking action while traveling in reverse, gently
put pressure on the upper portion of the pedal.
To adjust the foot pedal height for operator comfort
1. Remove the hairpin cotter from the adjustment pin.
2. Remove the adjustment pin from the foot pedal assem-
bly.
3. Align the holes in the lower bracket with one of the
four adjustment holes on the foot pedal to set the foot
pedal height.
4. With the holes aligned at the desired height, insert the
adjustment pin
5. Reinstall the hairpin cotter.
FOOT
PEDAL
PARKING
BRAKE
REVERSE
NEUTRAL
NEUTRAL
FORWARD
C-1421A FIGURE 6
C-1421B FIGURE 7
P-4066 FIGURE 8
SWEEPER CONTROLS/INSTRUMENTS
