WARNING BANK
The Warning Bank is located on the instrument panel and provides the operator with six fault/status indicators
for engine and sweeper systems. The Operator should monitor the indicators while sweeping. It is very important
that the operator be familiar with the meaning of each indicator.
ENGINE TEMP LIGHT
The engine temperature light illuminates to indicate an engine cooling system fault.
When this occurs the operator must turn off the sweeper immediately and have the
cooling system serviced by a qualified service technician.
ENGINE OIL PRESSURE LIGHT
When the oil pressure drops below approximately 5 psi an automatic protection circuit
shuts down the engine and illuminates the light to indicate low engine oil pressure.
When this occurs have the sweeper serviced by a qualified service technician.
CHARGING SYSTEM LIGHT
The charging system light illuminates to indicate a charging system fault. When this
occurs the sweeper charging system is not working properly and must be serviced by a
qualifiedservice technician.
DUST CONTROL LIGHT
The Dust Control Light Illuminates to indicate that the dust control filter is clogged.
When this occurs, stop sweeping and use the filter shaker to clear dirt and debris from
the filter. After using the filter shaker continue sweeping.
HOPPER TEMPERATURE LIGHT (OPTION)
When the temperature of the air moving through the dust control system in the hopper
exceeds 140° F, an automatic protection feature shuts down the dust control fan and
illuminates the hopper temperature light. When this occurs shut down the sweeper and
carefully investigate for a possible fire in the hopper. The temperature switch must be
manually reset.
DUMP DOOR LIGHT
The dump door light will illuminate when the dump door is not fully open. The light
warns the operator to open the hopper dump door completely before sweeping. Do not
sweep when the light is illuminated.
WARNING
BANK
ENGINE
TEMP
LIGHT
HOPPER
DUMP DOOR
LIGHT
DUST
CONTROL
LIGHT
HOPPER
TEMP
LIGHT
ENGINE OIL
PRESSURE
LIGHT
CHARGING
SYSTEM
LIGHT

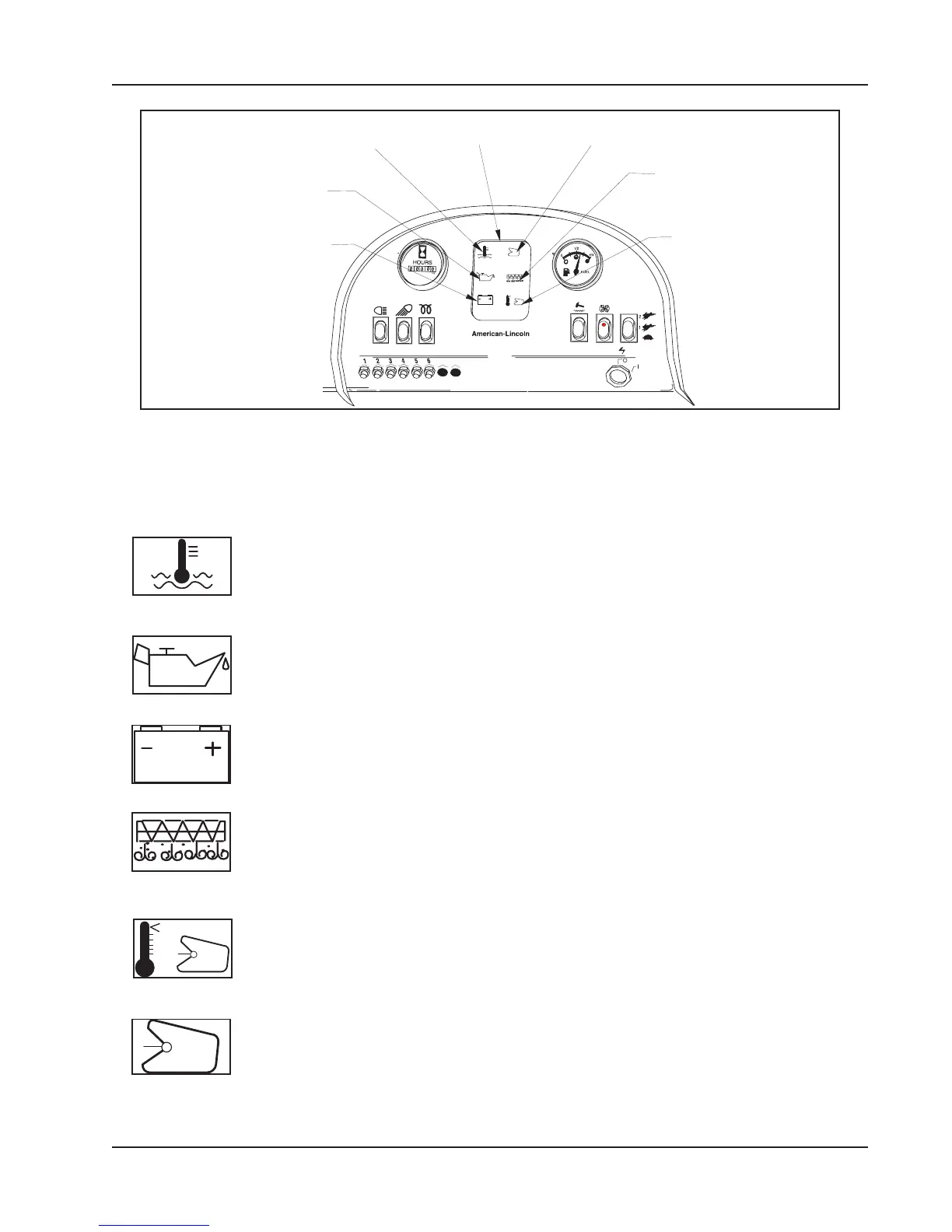

C1422
C-1422 FIGURE 9
SWEEPER CONTROLS/INSTRUMENTS
